Chapter 4 Setup and Monitoring via On-Screen Display
Setup Menu

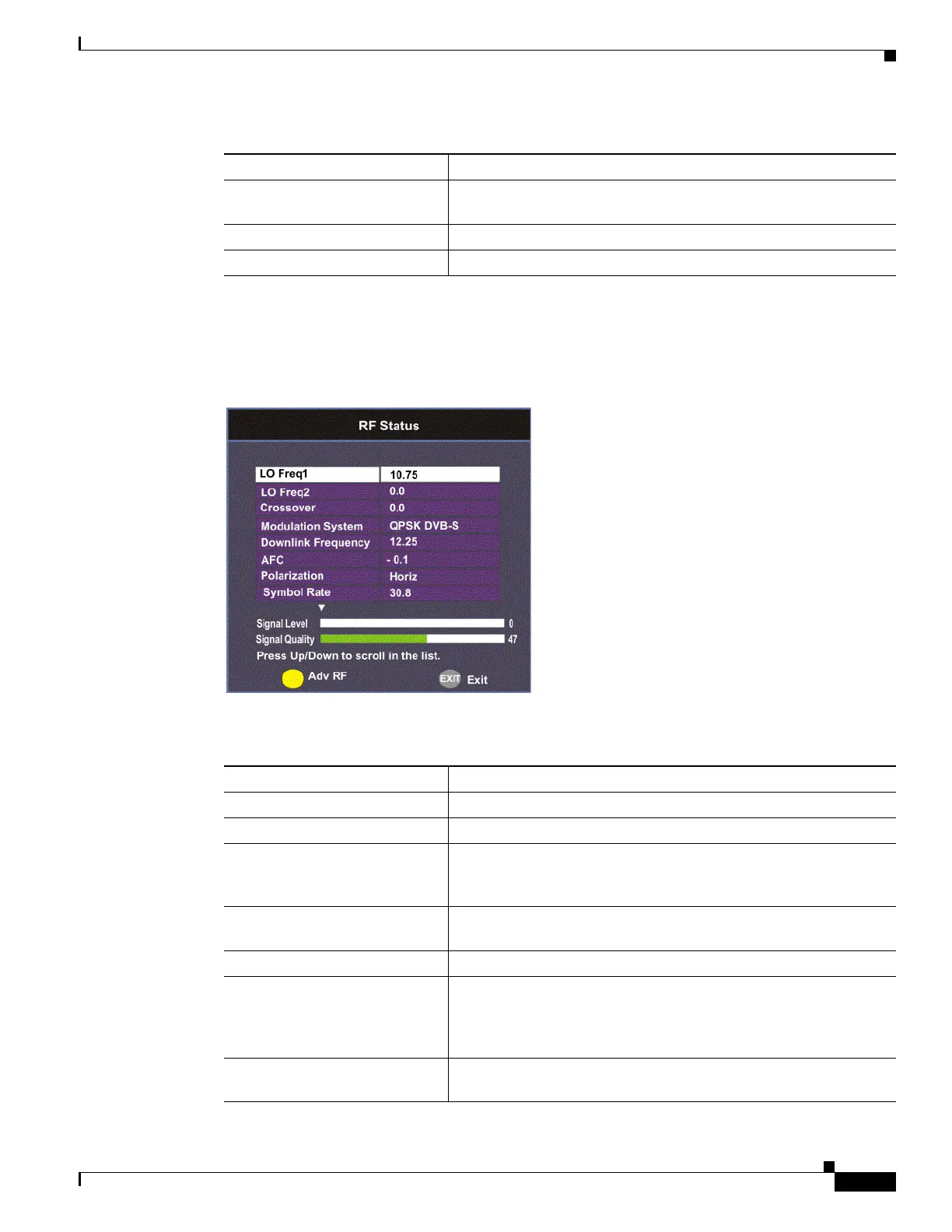

Viewing the RF Status
Proceed as follows to view the RF status:
From the Info screen, select RF Status and press OK.
The following table describes the RF Status information displayed:
Active Warning Information Description
Name of Warning Name of the warning. For more information on warning messages,
refer to Warning Messages, page 6-10.
Set Since Date and time of the warning.
Details Displays the content of the message.
RF Status Description
Downlink Frequency Indicates the current downlink frequency, in GHz.
Symbol Rate Indicates the Symbol Rate of the received signal, in MS/s.
Polarization Indicates the signal polarization setting. This setting is only
applicable when LNB Power is set to H-NIT or V-NIT. The selected
setting must match the polarization of the transmitted signal.
FEC Indicates the FEC (Forward Error Correction) rate of the received
signal.
LO Freq 1/2 Displays the Local Oscillator frequency #1 and #2.
Crossover Indicates the crossover frequency, which is an internal threshold
frequency used for selecting the LO1 or LO2 frequency, depending
on the current Downlink frequency setting. This is only used in
Ku-Band dual LNB application.
AFC Indicates the current Automatic Frequency Control adjustment, in
MHz.
