Front Panel Operation
This chapter describes how to set up the D9865 Satellite Receiver using the front panel keys and display.
This information is primarily applicable for standalone operation. This chapter presents the following
major topics:
• About the Front Panel, page 3-1
• Common Interface Modules, page 3-4
• Remote Control Functions, page 3-4
About the Front Panel
The front panel of your satellite receiver provides controls for enabling the receiver’s video output, and
for interfacing with the remote control. MUTE, SIGNAL and MENU LEDs are also provided. Some
remote control buttons are duplicated on the front panel for activating and navigating menus.

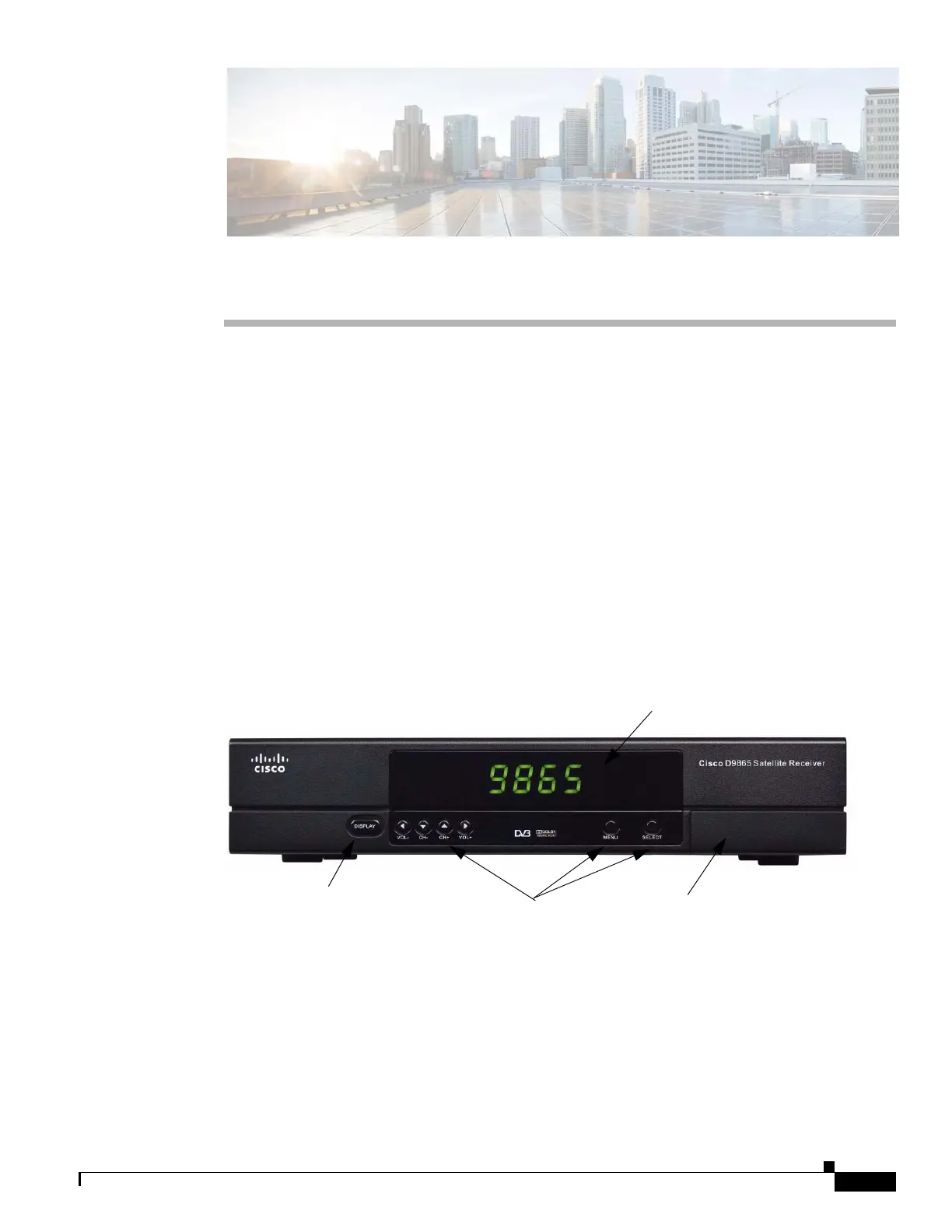

The following table displays a description of the front panel buttons:
CI Slot
Navigation Selection
Display Button
LCD Panel
To Next Page
