Chapter 4 Setup and Monitoring via On-Screen Display
Setup Menu
Note If you enter an invalid frequency setting or a setting that does not correspond to the selection, a pop-up
message such as “Input value out of range" is displayed.
Step 3 Press the green button (Save) to save and apply the settings to the receiver.
Setting up the Preset / LNB

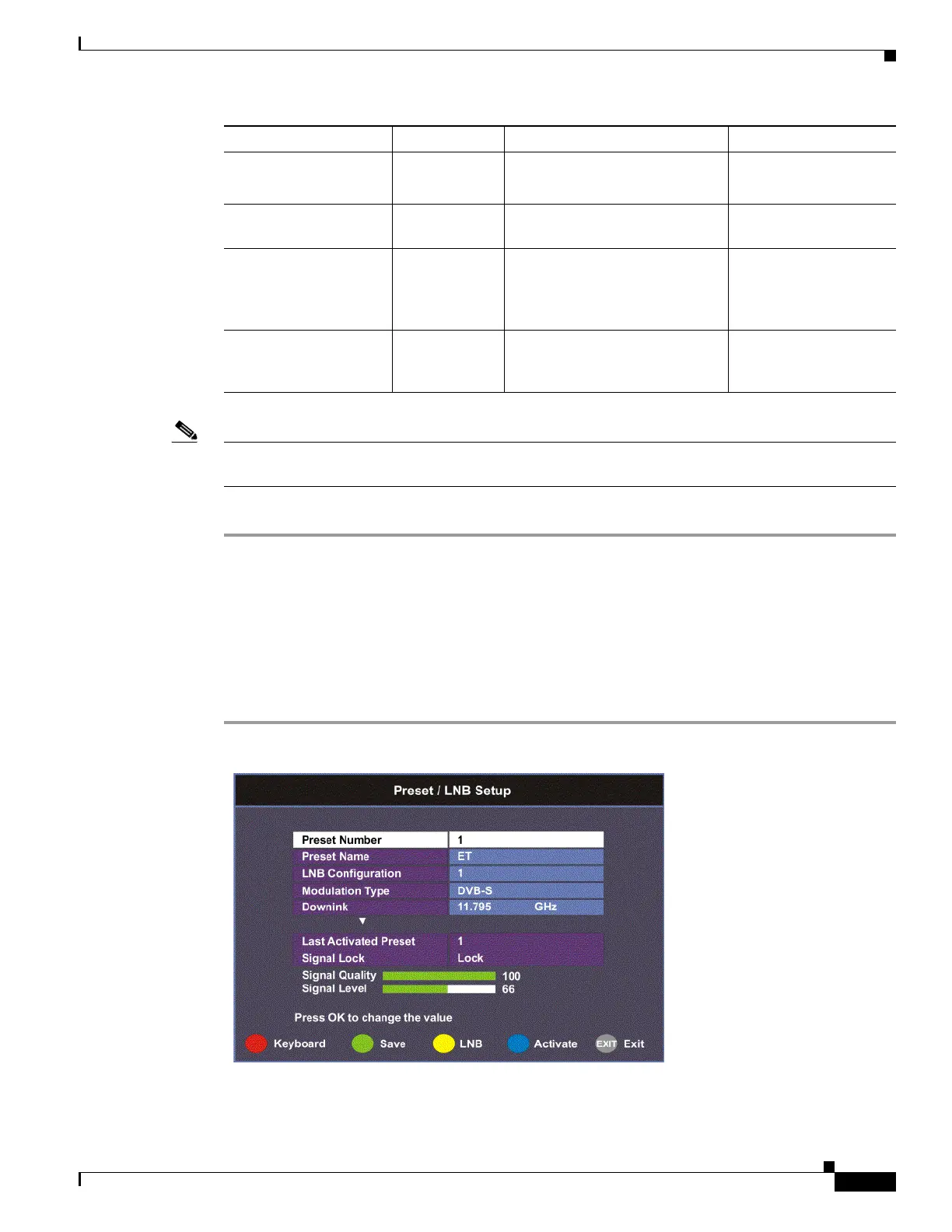

The Preset/LNB Setup sub-menu allows you to select or configure up to 64 network presets. Your
receiver may be shipped pre-configured with a number of network presets. You can configure the
network preset to use one of 10 LNB configurations.
Proceed as follows to set up the preset/LNB settings:
Step 1 From the Tuning / Preset screen, press the yellow button (Preset) to set up the Preset/LNB.
Step 2 The following table describes each of the available options:
DiSEqC Switch Off
A to P
Selects a port on the LNB switch
(if used)
Off
Signal Lock Indicates signal synchronization
status.
Signal Quality Indicates the quality of the
received signal, associated with
the Bit Error Rate, in the range
from 0 to 100.
Signal Level Indicates the strength of the
received signal in the range from
0 to 100.
Selection Options Description Default
