Cisco D9865 Satellite Receiver Software Version 2.20 Installation and Configuration Guide
OL-31085-01
Chapter 1 Quick Setup
Rear Panel Connections
Step 5 The “Acquiring Network” message is displayed until the “Acquisition Status” message appears. Press
OK to continue or press EXIT to cancel and return to the menu. If the dish is aligned, Signal Lock will
display “Lock” to the right.
Press EXIT to go to video.
If the dish is not aligned, the “Acquisition Failed” message is displayed. Select OK to save the settings.
Go to the Dish Setup menu to align the dish.

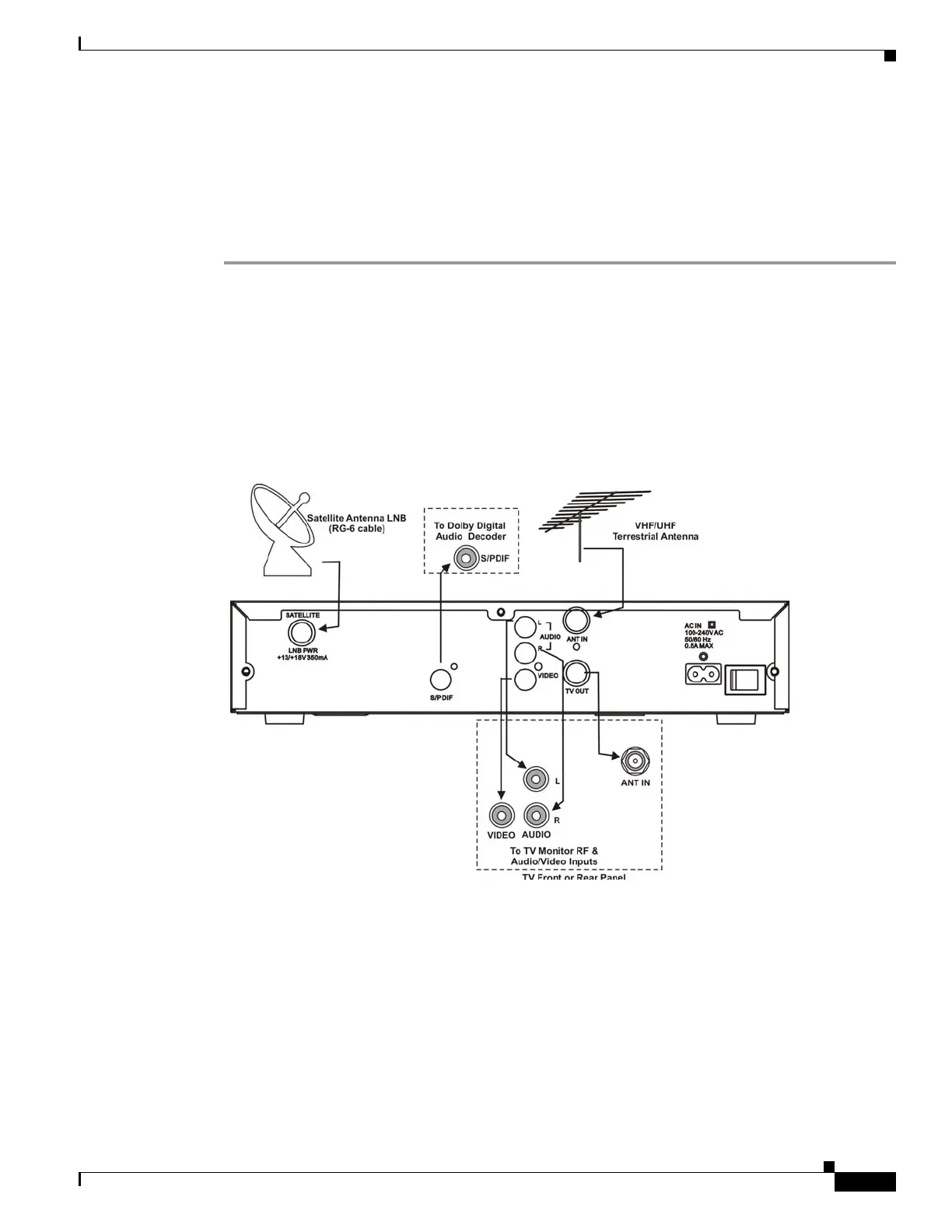

Rear Panel Connections
D9865B Satellite Receiver
The following displays the rear panel of the D9865B Satellite Receiver:
