4-59
Cisco D9865 Satellite Receiver Software Version 2.20 Installation and Configuration Guide
OL-31085-01
Chapter 4 Setup and Monitoring via On-Screen Display
Setup Menu
The following table displays the hardware information:
Viewing Installed Options
Proceed as follows to view the installed hardware options:
From the Hardware Information screen, press the yellow button (Inst Opt).

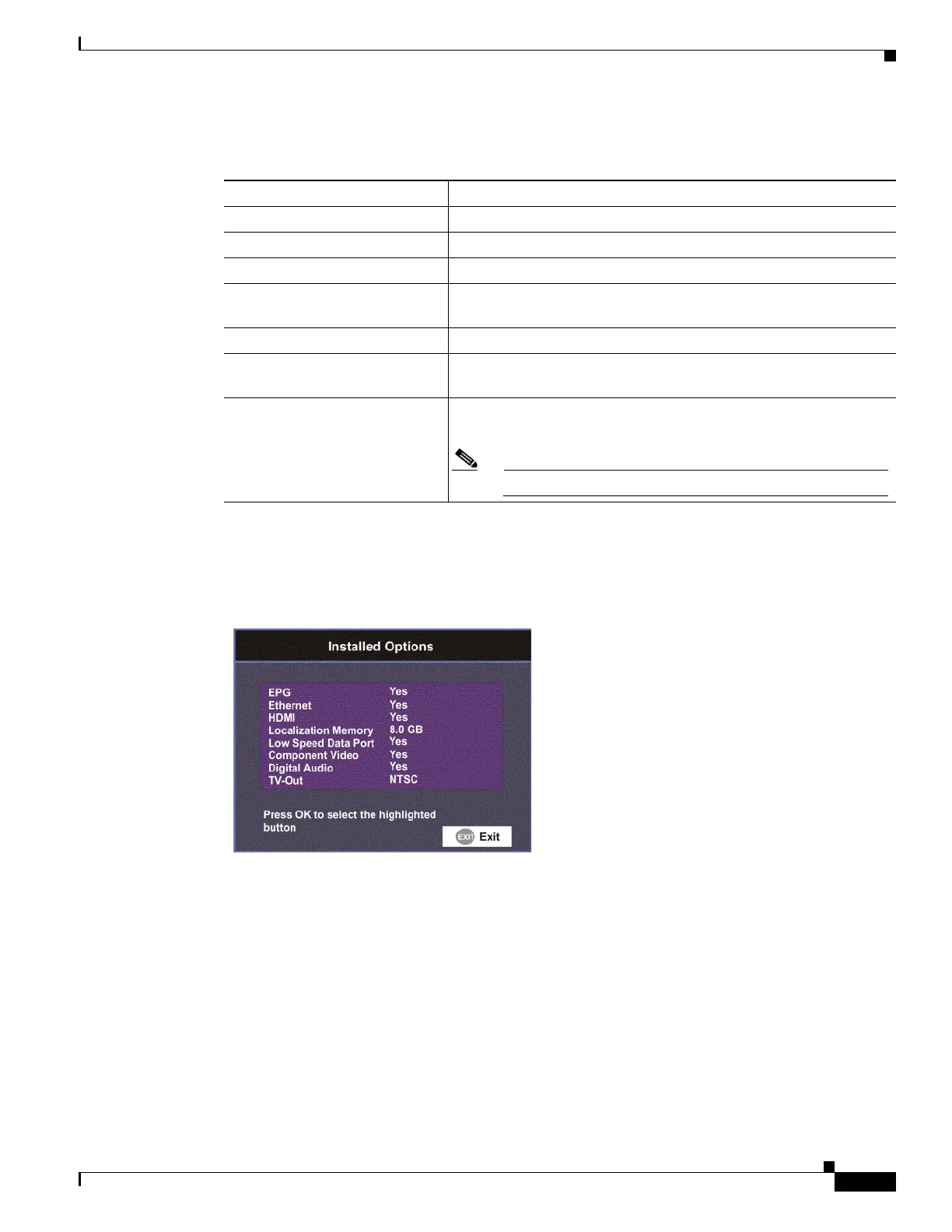

The Installed Options screen displays the hardware options installed in the current D9865 satellite
receiver.
Viewing Service Information
Proceed as follows to view the service information.
From the Info screen, select Service Information and press OK.
Hardware Information Description
Model Indicates the model number of the receiver.
Board Indicates the board type.
Revision Indicates the board revision number.
Tracking ID This is the unique Tracking ID number that identifies the product
version.
PWB Serial Number Displays the serial number for the PWB (printed wiring board).
MAC Address 1, MAC Address
2 (D9865D only)
Indicates the MAC addresses assigned to the Ethernet interface at
the time of manufacture.
IP Address 1 and IP Address 2
(D9865D only)
Indicates the IP address assigned to the receiver in a network for
Port 1 and Port 2.
Note Only Port 1 is available for this release.
