Chapter 4 Setup and Monitoring via On-Screen Display
Setup Menu
–
From this menu, you can configure network destinations for multicast transmission.
• SNMP Setup
–
From this menu, you can configure the password to read and write data to a device. You can also
configure trap destinations.
Configuring IP Setup
The IP Setup screen allows you to set the parameters for communicating with other equipment via the
Ethernet Data and Management ports for MPE applications. The D9865 supports unicast and multicast
IP streaming. There are two Ethernet ports (Port 1 and Port 2). Click the blue button (Next Port) in the
IP Setup menu to toggle between the two ports.
Note Only Port 1 is available for this release.
MPE Output
The Multiprotocol Encapsulation (MPE) output provides a means to carry packet oriented IP protocols
on top of a transport stream. The MPE output receives IP packets from the transport stream and the IP
data can be sent through an Ethernet switch to an IP router or directly to a receiving device.
The diagram below shows an example of the D9865 receiver used in an MPE application.

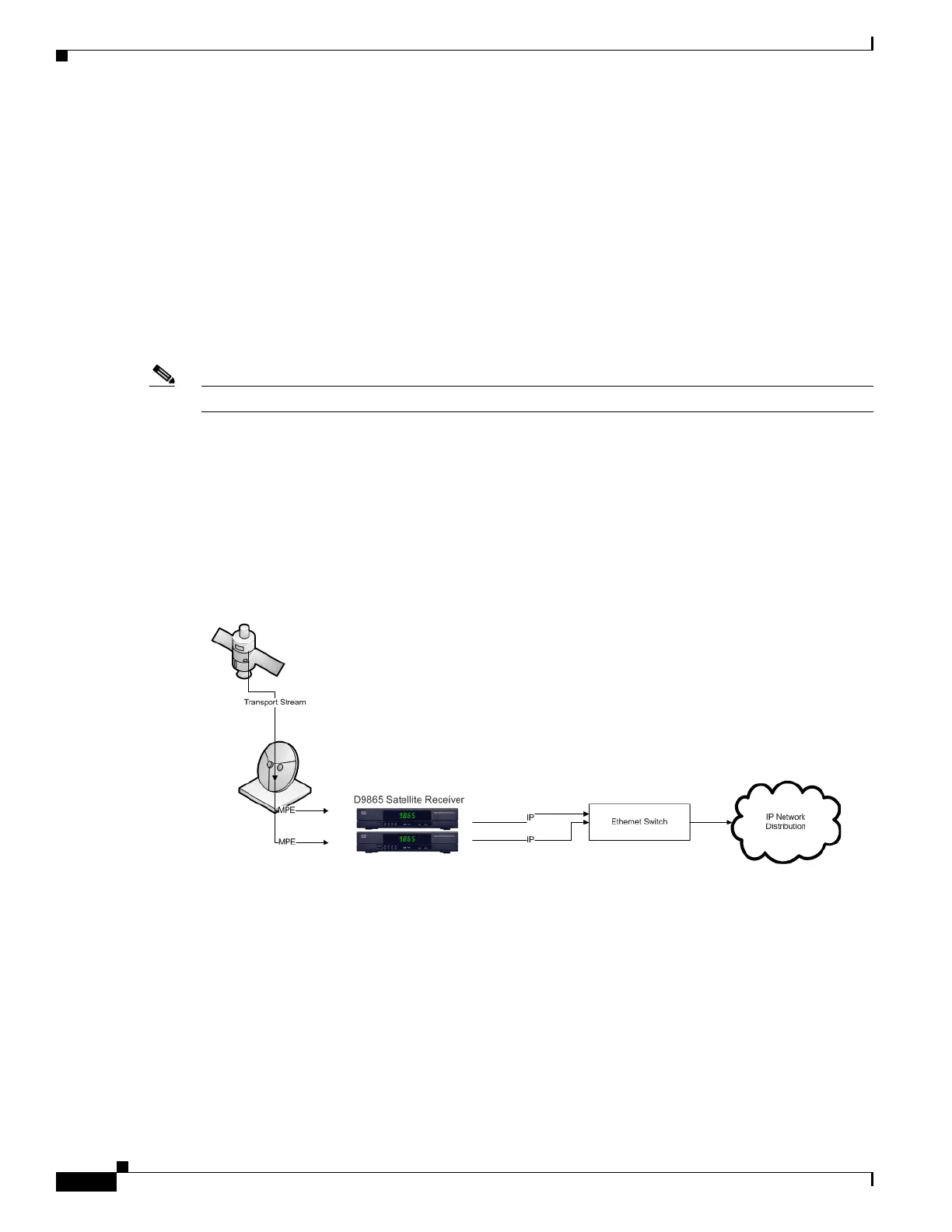

Figure 4-1 D9865 in MPE Application
To Next Page
