Cisco D9865 - Page 63

4-29
Cisco D9865 Satellite Receiver Software Version 2.20 Installation and Configuration Guide
OL-31085-01
Chapter 4 Setup and Monitoring via On-Screen Display
Setup Menu

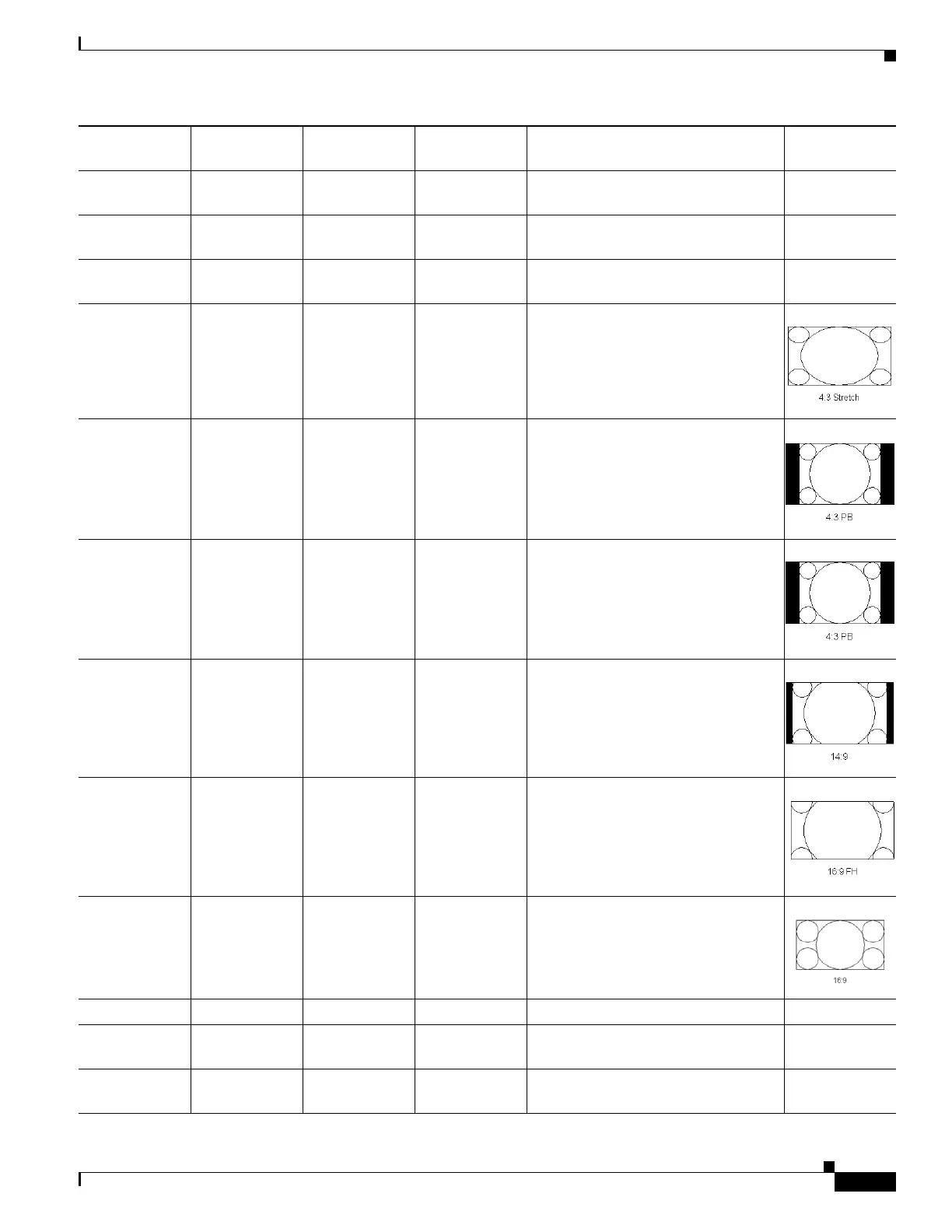

4:3 4:3 4:3P/B None Conversion is not possible. Normal
picture.
4:3 4:3 14:9 None Conversion is not possible. Normal
picture.
4:3 4:3 16:9 SCALE None Conversion is not possible. Normal
picture.
4:3 16:9 None None Picture is short & wide.
4:3 16:9 Auto 4:3 P/B Uses 4:3 P/B.
4:3 16:9 4:3 P/B 4:3 P/B 4:3 picture is centered in a pillar-style
box.
4:3 16:9 14:9 14:9 Compromises some up-sampling.
Some black bars and cropping are
visible.
4:3 16:9 16:9 SCALE 16:9 SCALE Vertically up-samples the center of the
4:3 picture and crops the top and
bottom of the screen.
16:9 16:9 None None Normal
16:9 16:9 Auto None No conversion. Normal picture.
16:9 16:9 16:9 L/B None Conversion is not possible. Normal
picture.
16:9 16:9 4:3 CCO None Conversion is not possible. Normal
picture.
Stream
TV Aspect
Ratio
Aspect Ratio
Conversion
Actual
Conversion Description Image
