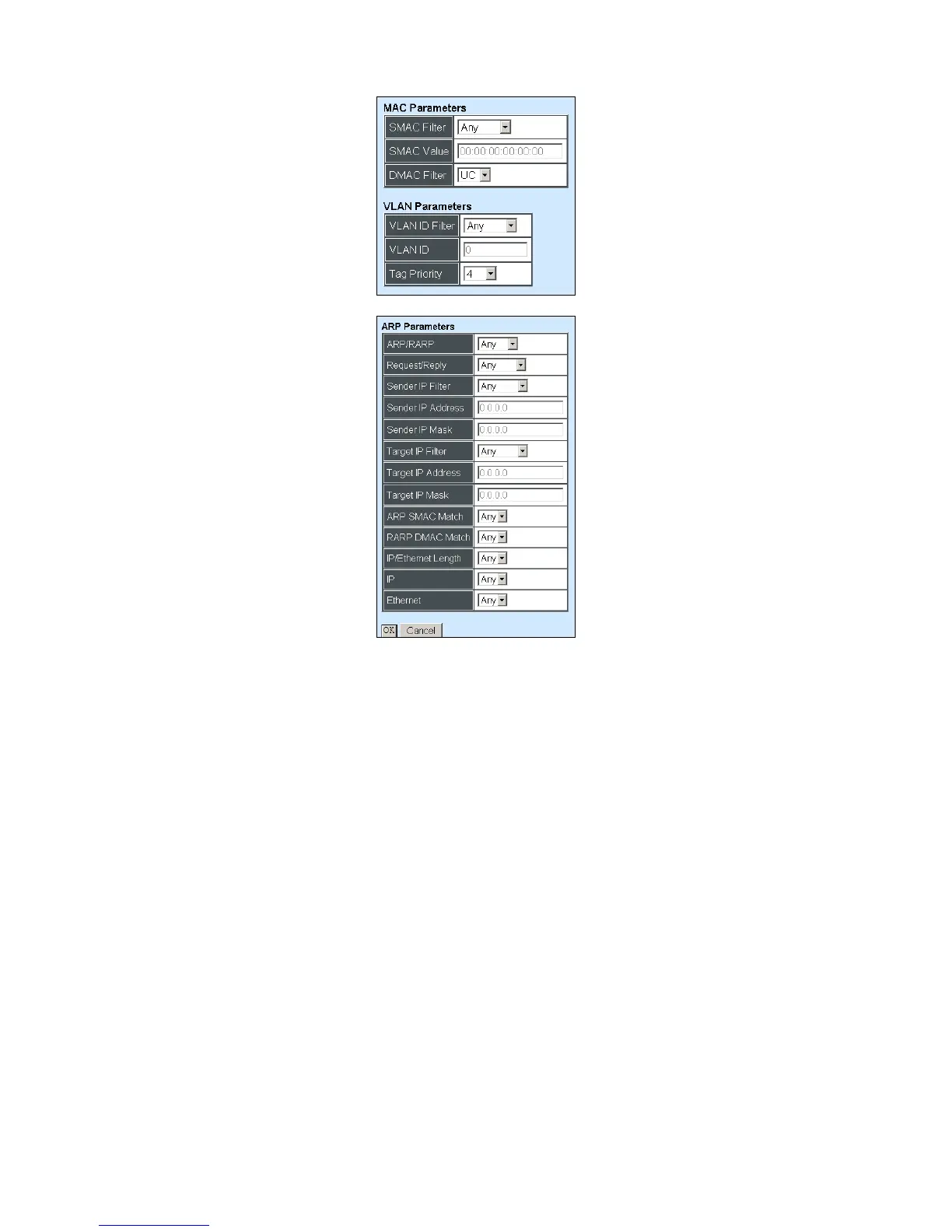

ARP Frame Type:
MAC Parameters
SMAC Filter: Select “Any” or “Specific” for source MAC filtering. If “Specific” is selected,
you need to further specify a source MAC address.
SMAC Value: Specify a source MAC address.
DMAC Filter: Select “Any”, “UC”, “MC” or “BC” for destination MAC filtering. Select “Any” to
filter any kind of traffic. Select “UC” to filter unicast traffic. Select “MC” to filter multicast
traffic. Select “BC” to filter broadcast traffic.
VLAN Parameters
VLAN ID Filter: Select “Any” or “Specific” for VLAN ID Filter. If “Specific” is selected, you
need to further specify a VLAN ID.
VLAN ID: Specify a VLAN ID.
Tag Priority: Select a tag priority from the pull-down menu.
ARP Parameters
ARP/RARP: Select “Any”, “ARP”, “RARP”, or “Other” as the desired protocol.
Request/Reply: Select “Any”, “Reply”, or “Request”.
