Ethernet Frame Type:

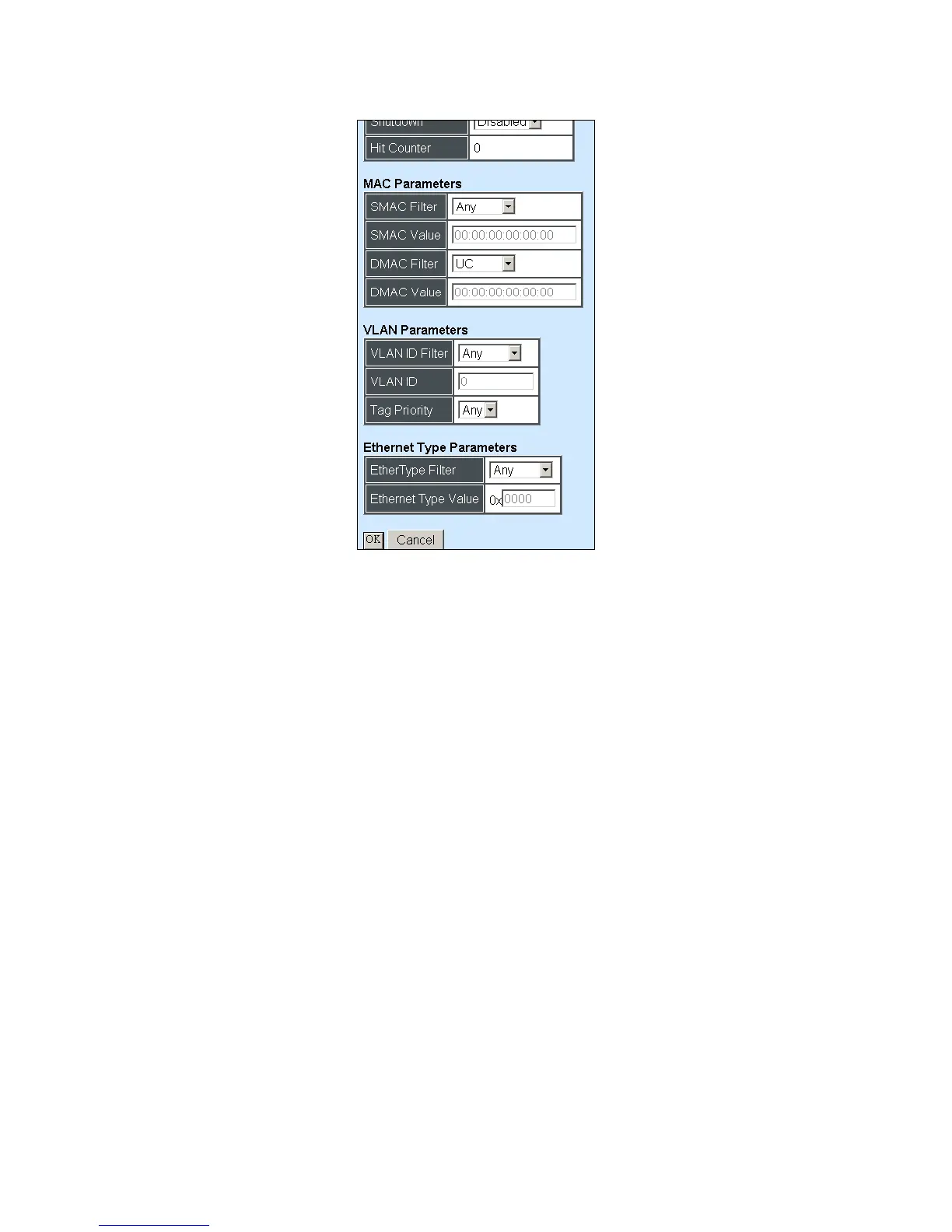

MAC Parameters
SMAC Filter: Select “Any” or “Specific” for source MAC filtering. If “Specific” is selected,
you need to further specify a source MAC address.
SMAC Value: Specify a source MAC address.
DMAC Filter: Select “Any”, “UC”, “MC”, “BC” or “Specific” for destination MAC filtering. If
“Specific” is selected, you need to further specify a destination MAC address. Select “Any”
to filter any kind of traffic. Select “UC” to filter unicast traffic. Select “MC” to filter multicast
traffic. Select “BC” to filter broadcast traffic.
DMAC Value: Specify a destination MAC address.
VLAN Parameters
VLAN ID Filter: Select “Any” or “Specific” for VLAN ID Filter. If “Specific” is selected, you
need to further specify a VLAN ID.
VLAN ID: Specify a VLAN ID.
Tag Priority: Select a tag priority from the pull-down menu.
Ethernet Type Parameters
EtherType Filter: Select “Any” or “Specific” for EtherType Filter. If “Specific” is selected, you
need to further specify an Ethernet type value.
Ethernet Type Value: Specify an Ethernet type value.
