CTS FOS-3126-PLUS SERIES User Manual

196

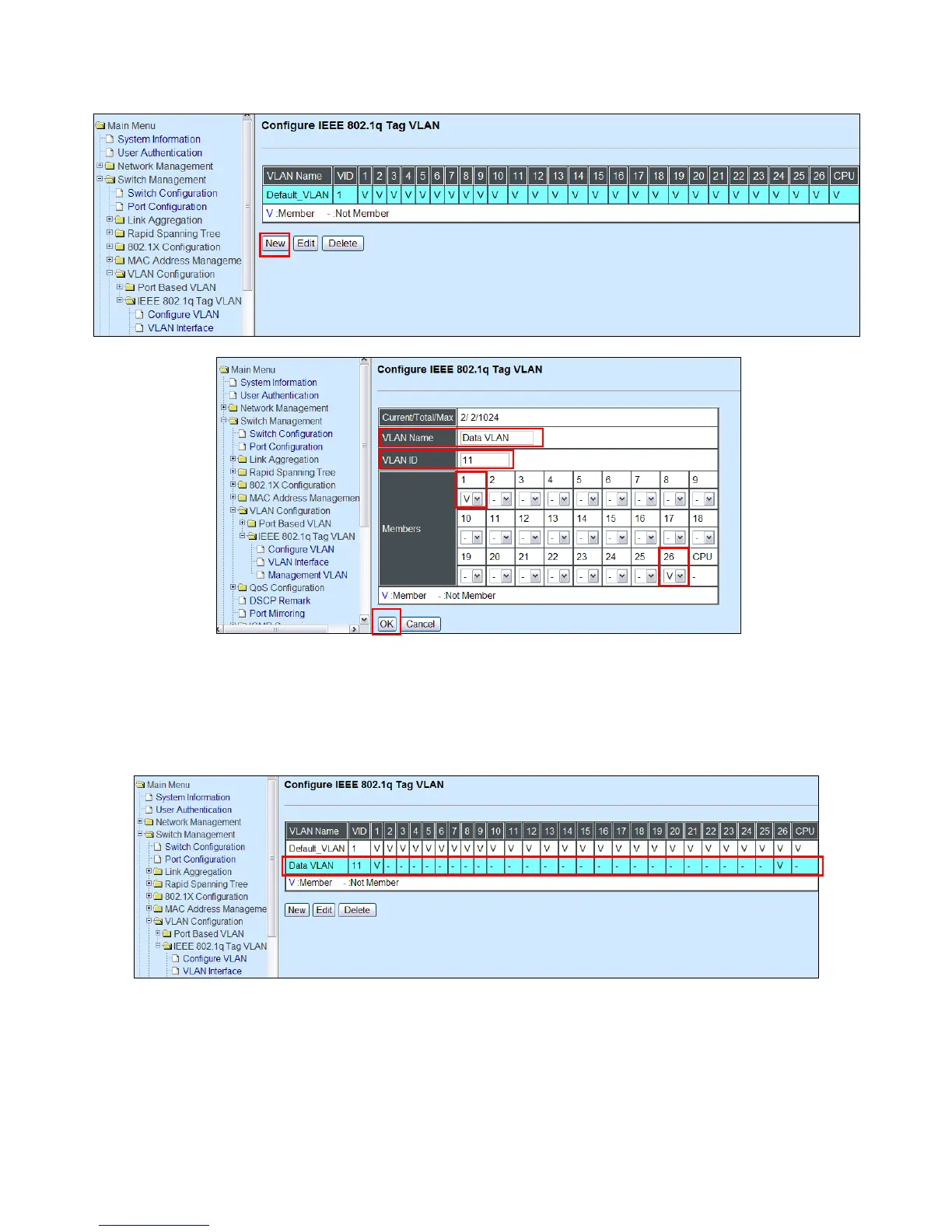

2. Create a new Data VLAN 11 that includes Port 1 and Port 26 as members.
Switch Management>VLAN Configuration>IEEE 802.1q Tag VLAN>Configure VLAN
3. Check Data VLAN 11 settings.
Switch Management>VLAN Configuration>IEEE 802.1q Tag VLAN>Configure VLAN
NOTE: By default, all ports are member ports of the Default_VLAN. Before removing the
Deafult_VLAN from the VLAN table, make sure you have correct management VLAN and PVID
configurations, otherwise, incorrect configurations may disconnect your management PC to the
Managed Switch immediately when you enter the command.
Click “New” to create a new VLAN.
Data VLAN 11 that
includes Port 1 and
Port 26 as member
ports.
Click “OK” button to
return to IEEE 802.1q
Tag VLAN table.
