DS8110 REFERENCE MANUAL
208
5

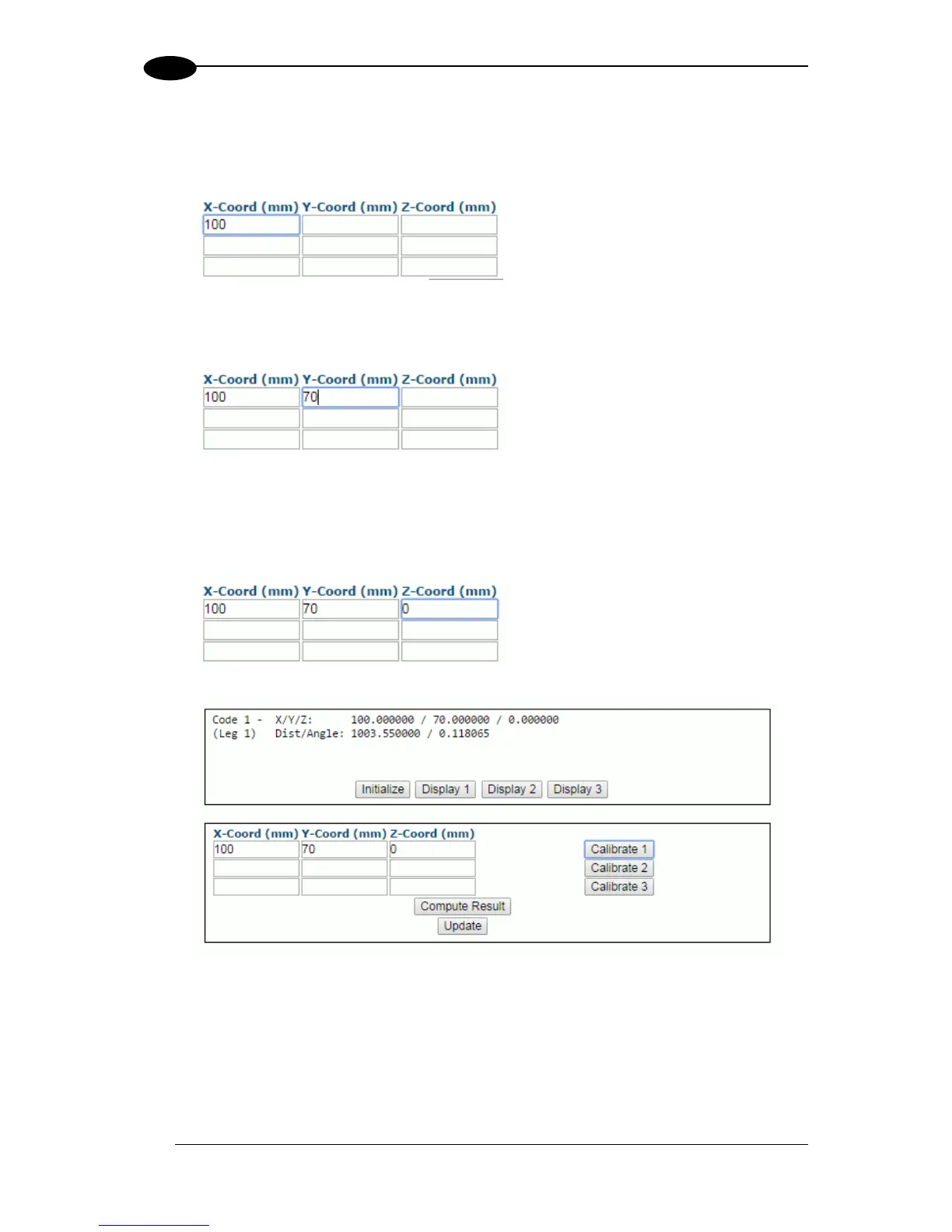

3. Measure the distance for X from the edge of the conveyor bed to the center of the
barcode, and enter that distance in the first box under X-Coord (mm) in the PackTrack
Calibration Wizard.
Your measurements will likely differ from those shown below.
4. Measure the distance for Y from the trigger (PS line) to the barcode scanner's laser line
on the barcode, and enter that distance in the first box under Y-Coord (mm).
Your measurements will likely differ from those shown below.
5. Measure the distance for Z from the conveyor bed to the barcode, and enter that distance
in the first box under Z-Coord (mm). Since the barcode is laying on the conveyor bed, the
value should be "0."
Your measurements will likely differ from those shown below.
6. Click Calibrate 1. PackTrack data is displayed for the first code.
7. Next, place a barcode overhanging the top corner of the tallest box specified for your
scanning system as shown in the illustration below. Center one edge of the box on the
conveyor and align the other edge with the laser line as shown.
