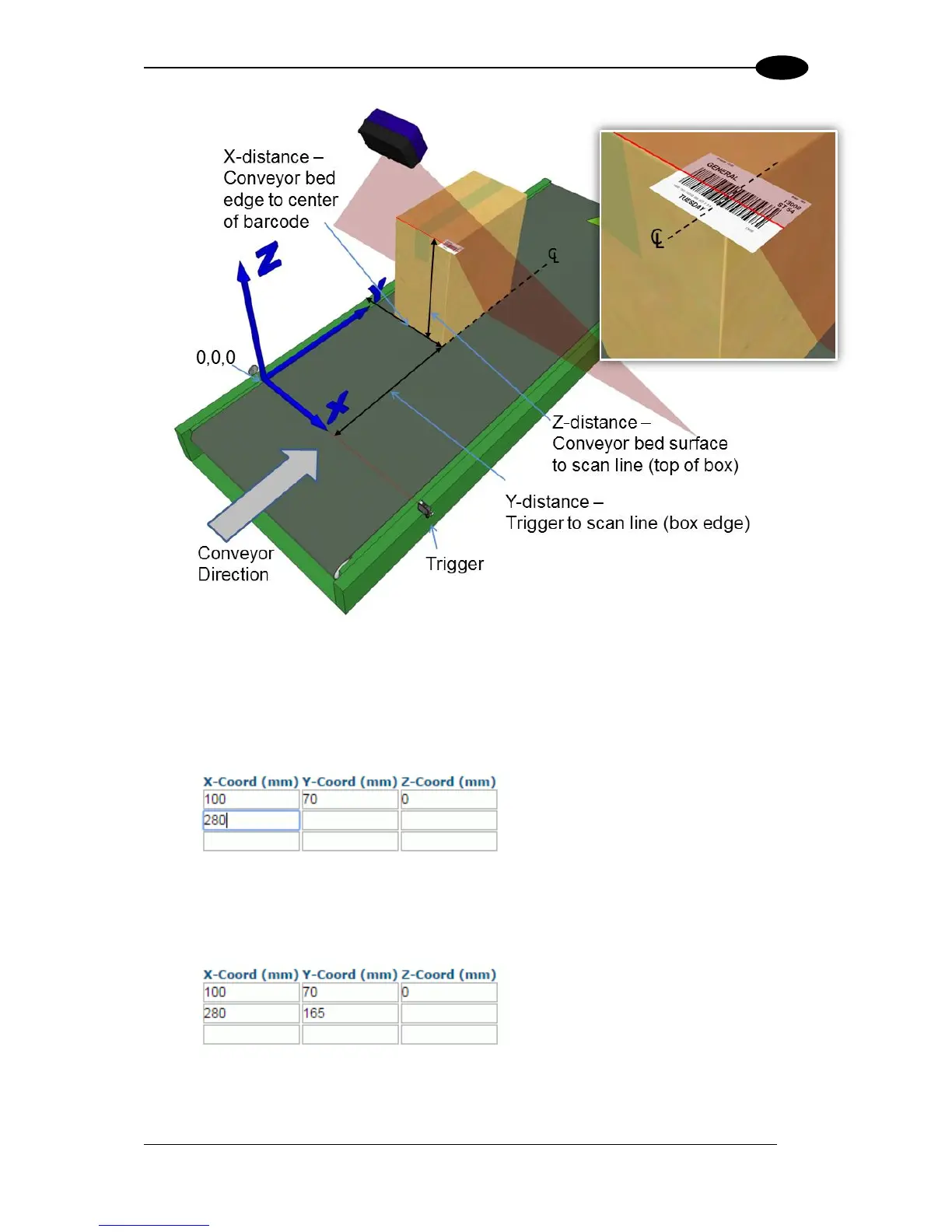

Figure 52: Top-read 2
nd
barcode placement
8. Measure the distance for X from the left edge of the conveyor bed to the center of the
barcode (centered side edge of box), and enter that distance in the first box under X-Coord
(mm).
Your measurements will likely differ from those shown below.
9. Measure the distance for Y from the trigger (PS line) to the barcode scanner's laser line
on the barcode (back edge of box), and enter that distance in the first box under Y-Coord
(mm).
Your measurements will likely differ from those shown below.
10. Measure the distance for Z from the conveyor bed to the barcode (top of box), and enter
that distance in the first box under Z-Coord (mm).
