DS8110 REFERENCE MANUAL
70
4
Field Name
Action/Definition
Mode Setting
Distance
from PS
Line to
Tx Line

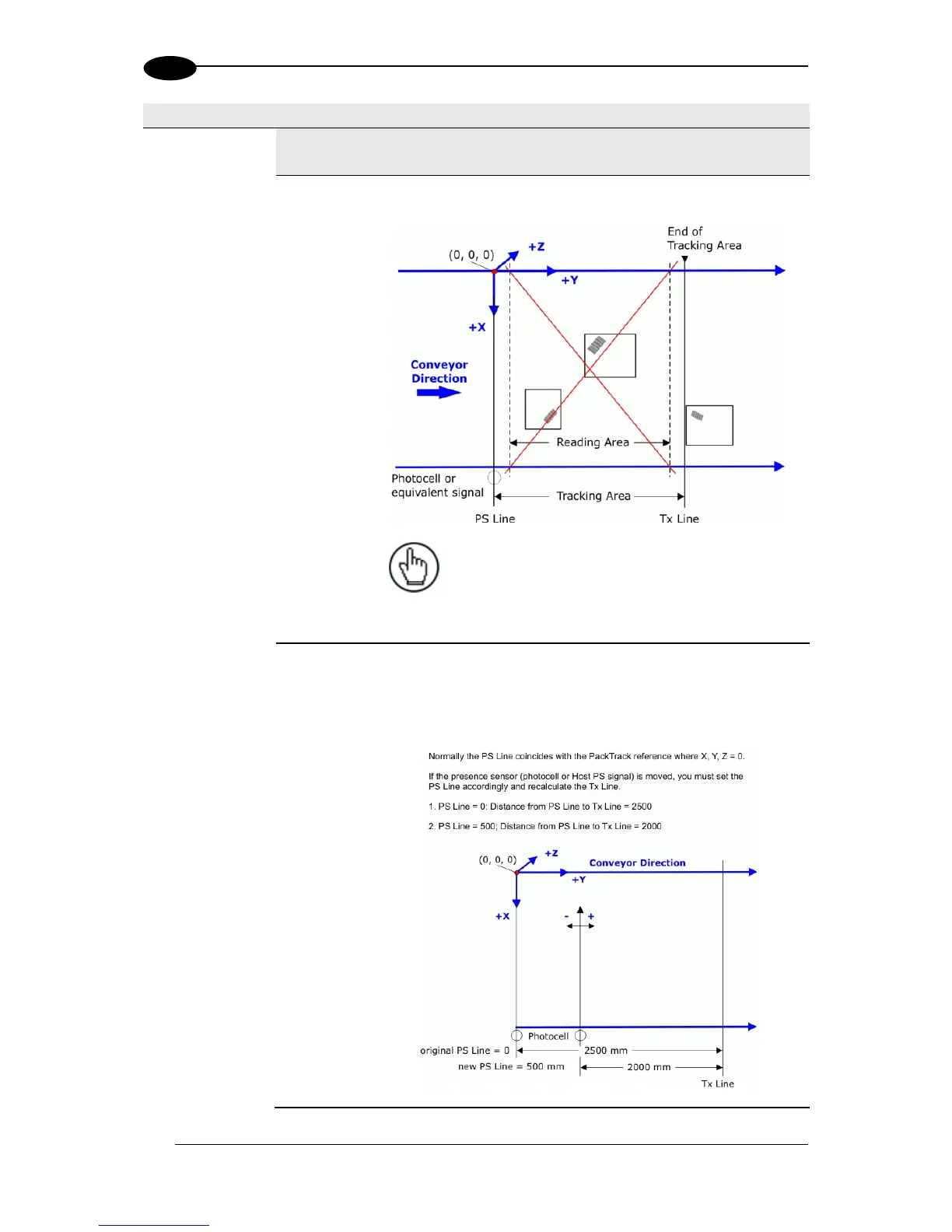

Enter the distance along the Y axis from the PS (photoelectric
sensor) to the TX Line (transmit).
NOTE: Tracking starts 10 cm [4 inches] before
and stops 10 cm [4 inches] after the Reading Area
in order to ensure the barcode is assigned to the
correct package.
PS Line
This parameter defines the read signal Y coordinate (mm) referred
to the origin of co-ordinates used for PackTrack configuration (see
below).
Example:
