TYPICAL LAYOUTS
104
MATRIX 220
All devices always support multiple output channels (i.e. for data monitoring).
Host
Power
CAB-PW-EXT
CBX500
CAB-AUX03
CBL-1480-xxID-NET
Q100
ID-NET Synchronized Slave Nodes
ID-NET
Synchronized
Master
CAB-DSxx-S
PS
CBL-1490
Q100
ID-NET
Terminator
CBL-1480-xx
The ID-NET network must be terminated
through the internal switch of the
CBX500 and inserting an ID-NET termi-
nator into the last QL in the network.
Main
BA600 ID-NET Out
BA400 Ext. Power
BA500 Trigger
BA300 Service

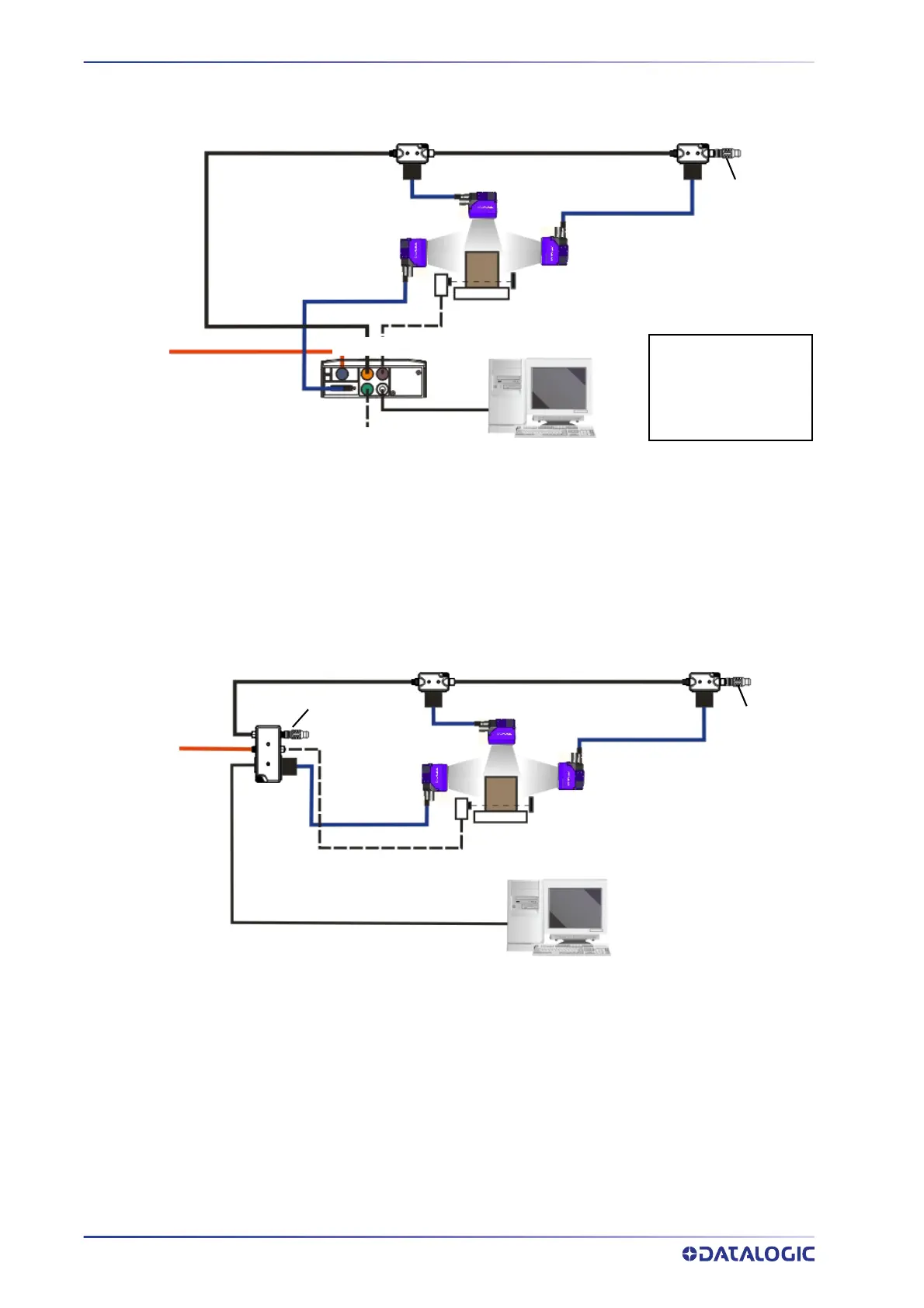

Figure 82 - ID-NET Synchronized Layout Matrix 220 Master with CBX500 + Matrix 220
Slaves with QL100
If the Backup and Restore function is not required, then a QL300 can be used to connect
the master reader.
Host
Power
CAB-PW-EXT
CBL-1480-xx
QL300
Q100
ID-NET Synchronized Slave Nodes
ID-NET
Synchronized
Master
PS
CBL-1490
Q100
ID-NET
Terminator
CBL-1480-xx
The ID-NET network must be termi-
nated inserting an ID-NET terminator
into the QL300 (Master) and into the
last QL in the network.
Main Interface
ID-NET
CBL-1496
ID-NET
Terminator
Figure 83 - ID-NET Synchronized Layout Matrix 220 Master with QL300+ Matrix 220
Slaves with QL100
