Datalogic Matrix 300N - Reading Diagrams

Typical Layouts
86 Matrix 300N

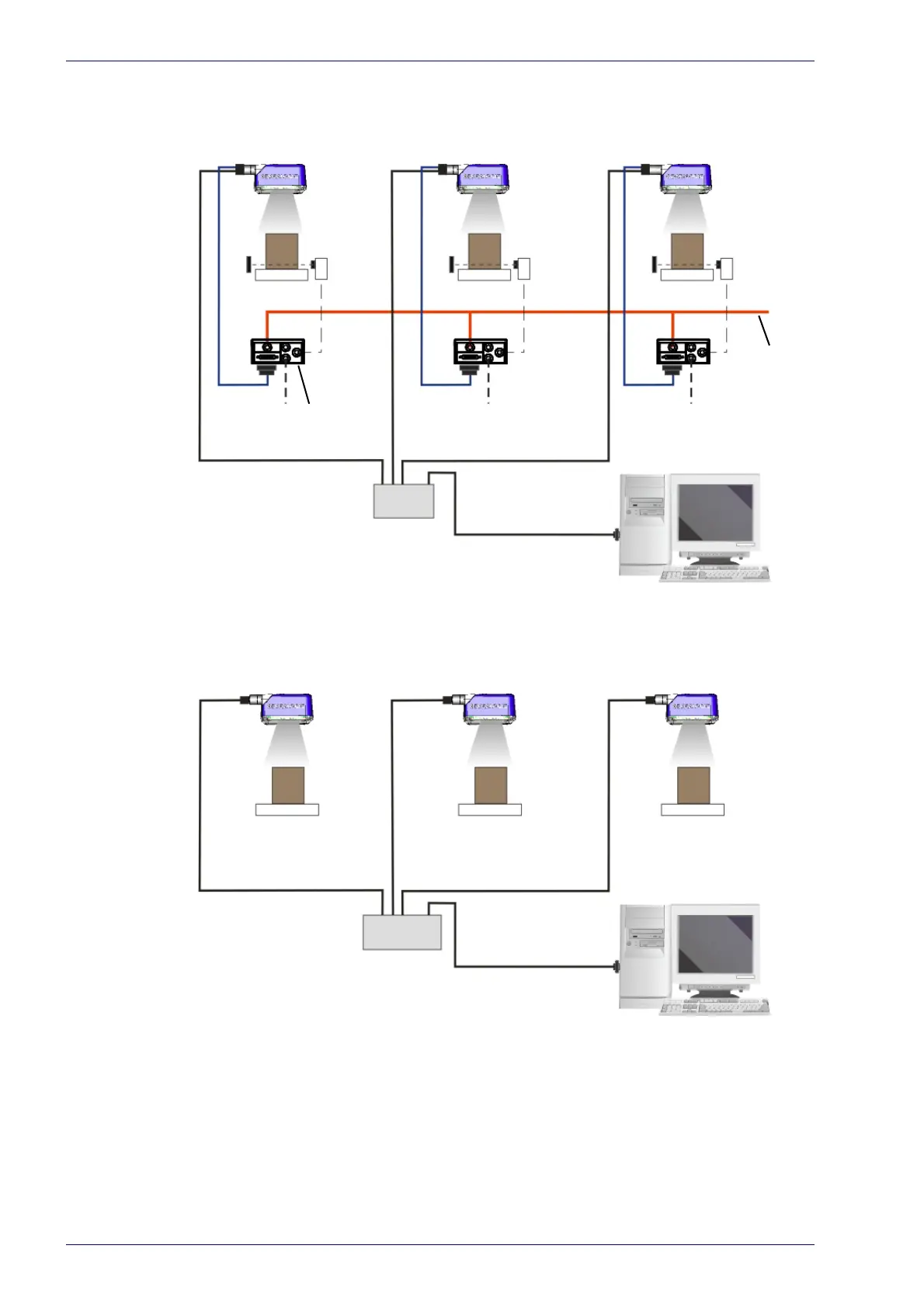

When using a Local Area Network (LAN), one or more Matrix 300N readers can be
connected to the network by using CAB-ETH-M0x cables:
Host
CAB-DSxx-S
Matrix 300N
CAB-ETH-M0x



Ethernet Interface
Auxiliary Serial Interface (RS232 - Data Monitor)
External Trigger (for One Shot or Phase Mode)
Alone



Alone Alone
CBX
CBX
Switch
Power
Figure 61 - Ethernet Network Layout
Host
Matrix 300N
CAB-ETH-M0x
Alone Alone Alone
PoE Switch
Figure 62 - PoE Ethernet Network Layout
