Datalogic Matrix 300N User Manual

Matrix 300N Recommended Illumination for DPM
Product Reference Guide 203
Matrix 300N Recommended Illumination for DPM

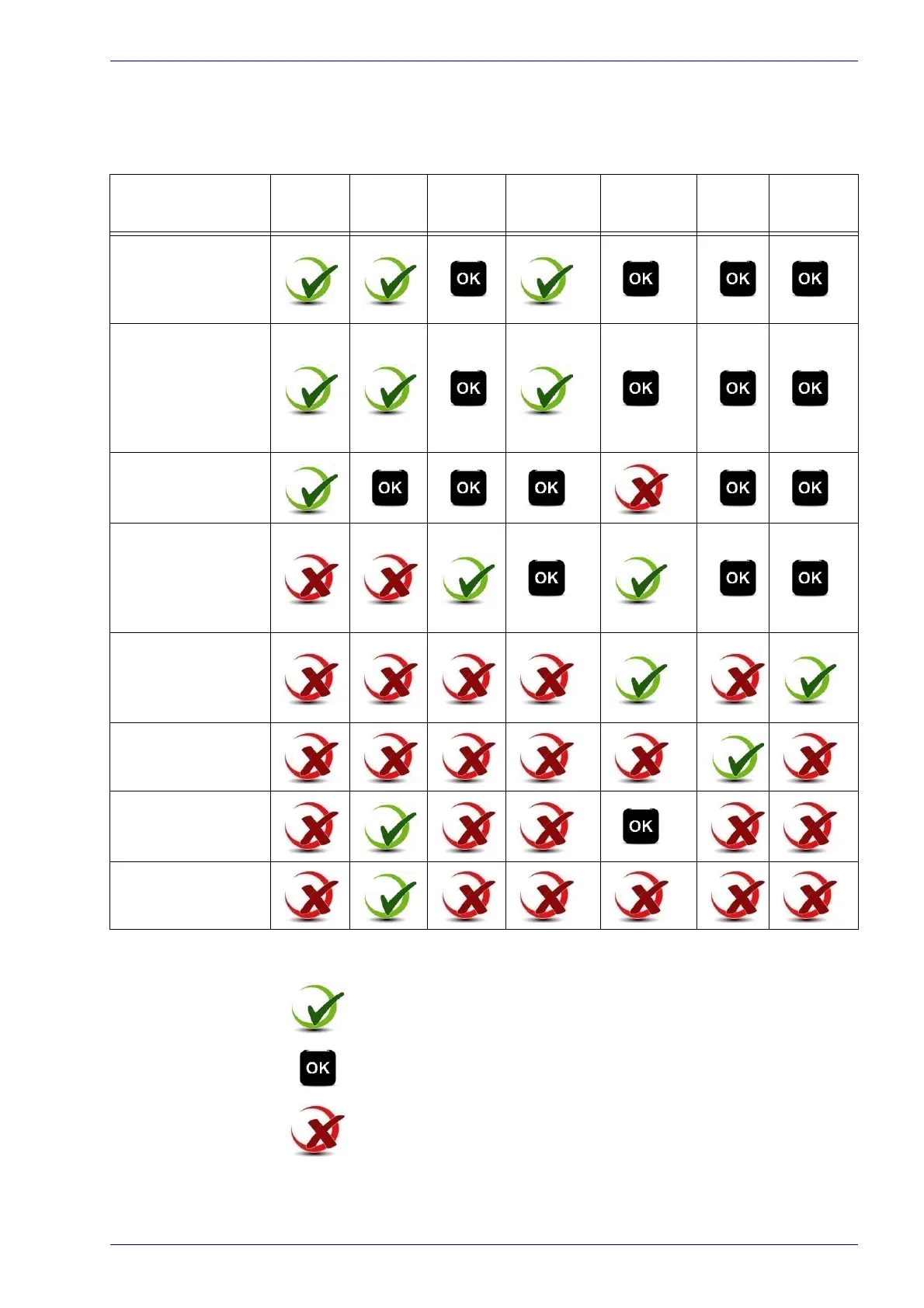

In the following table these macro-cases are listed, each of them highlighting
the most suitable Matrix 300N lighting system used to resolve the application.
Application
Characteristics
STD.
Red
STD.
White
Diff.
Red
MLT-DPM
Central
MLT-DPM
Peripheral
LT-51x Polarized
Printed codes on
opaque paper or
labels having a flat
surface
Laser Etching or Ink
Jet code marking on
an opaque, flat sur-
face having no evi-
dent machining
fl
aws
Code marking on an
opaque, rough sur-
face
Code marking on a
flat surface with
evident machining
flaws produced by
machining tools
Laser Etching or Dot
Peening code mark-
ing on a flat, highly
refl
ective surface
Code marking on a
white background
Red-printed code
on white back-
ground
Mixed color
codes/background
Legend:
Suggested Lighting System
Compatible Lighting System
Lighting System Not Recommended

Datalogic Matrix 300N Specifications

General

Type	Barcode module bar barcode readers
Sensor type	CMOS
Scanner type	1D/2D
Yaw reading angle	0 - 24 °
Optical sensor resolution	1024 pixels
Linear (1D) barcodes supported	-
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
Input voltage	10 - 30 V
Power consumption (typical)	5 W
Connectivity technology	Wired
Certification	AIM DPM, ISO/IEC 15415, ISO/IEC 15416, ISO/IEC 16022, ISO/IEC 18004, AS9132A
Product color	Blue, Metallic
Housing material	Aluminium, Plastic
International Protection (IP) code	IP67
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Depth	54 mm
Width	75 mm
Height	62 mm
Weight	238 g
