Illuminators
192
Matrix 300N
Diffused Red Illuminator

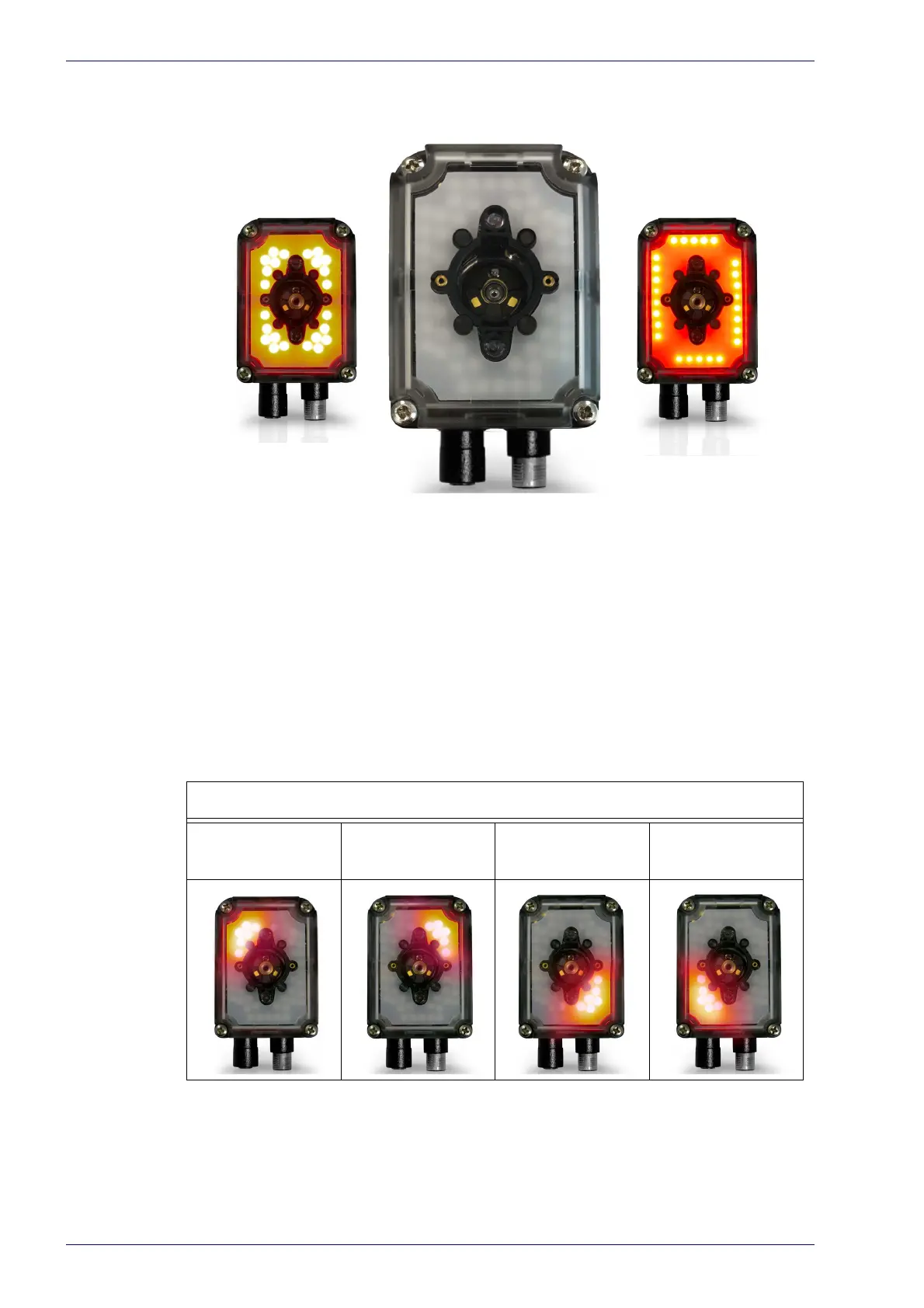

Figure 91 - 26/24-LED LT-DPM Illuminator
This illuminator is made up of 50 LEDs divided into two groups of four sectors
each, independently controlled by the software application. Four sectors make
up the internal group called
Central LED Group
. The other four sectors make up
the external group called
Peripheral LED Group
.
Please note that the Diffused Red Illuminator is called LT-
DPM for 1.3 MP models
(47x-0xx) and R-WD DIF for 2 MP models (77x-0xx).
The following ON/OFF lighting configurations can be set.
Central LED Group
Top-Left Sector Top-Right Sector
Bottom-Right
Sector
Bottom-Left
Sect
or
