Software Configuration
160
Matrix 300N
Multidata ID-NET Network Configurations
The Multidata ID-NET network communications between Master and Slave are
managed by the application job (configuration) using the pass-through feature.
A pre-configured job is loaded with the correct pass-through settings for both
the Master and Slaves when the Default Multidata Configuration is selected from
the Internal Network Setting feature.
1. Complete the configuration of
all the application parameters (including
Image Settings) and save them to the Master with an application specific
name.
Optionally, checking the Save on Sl
ave Device box can be helpful to save all
the current individual Slave configurations with the new configuration
name
. This does not clone any parameters. If not checked, Slave
configurations will remain as
Temp
configurations and you will be warned
that changes to the Master have not been saved to the Cluster.
For Multidata configurations, the option to Cl
one Master configuration on
Slaves must not be checked.

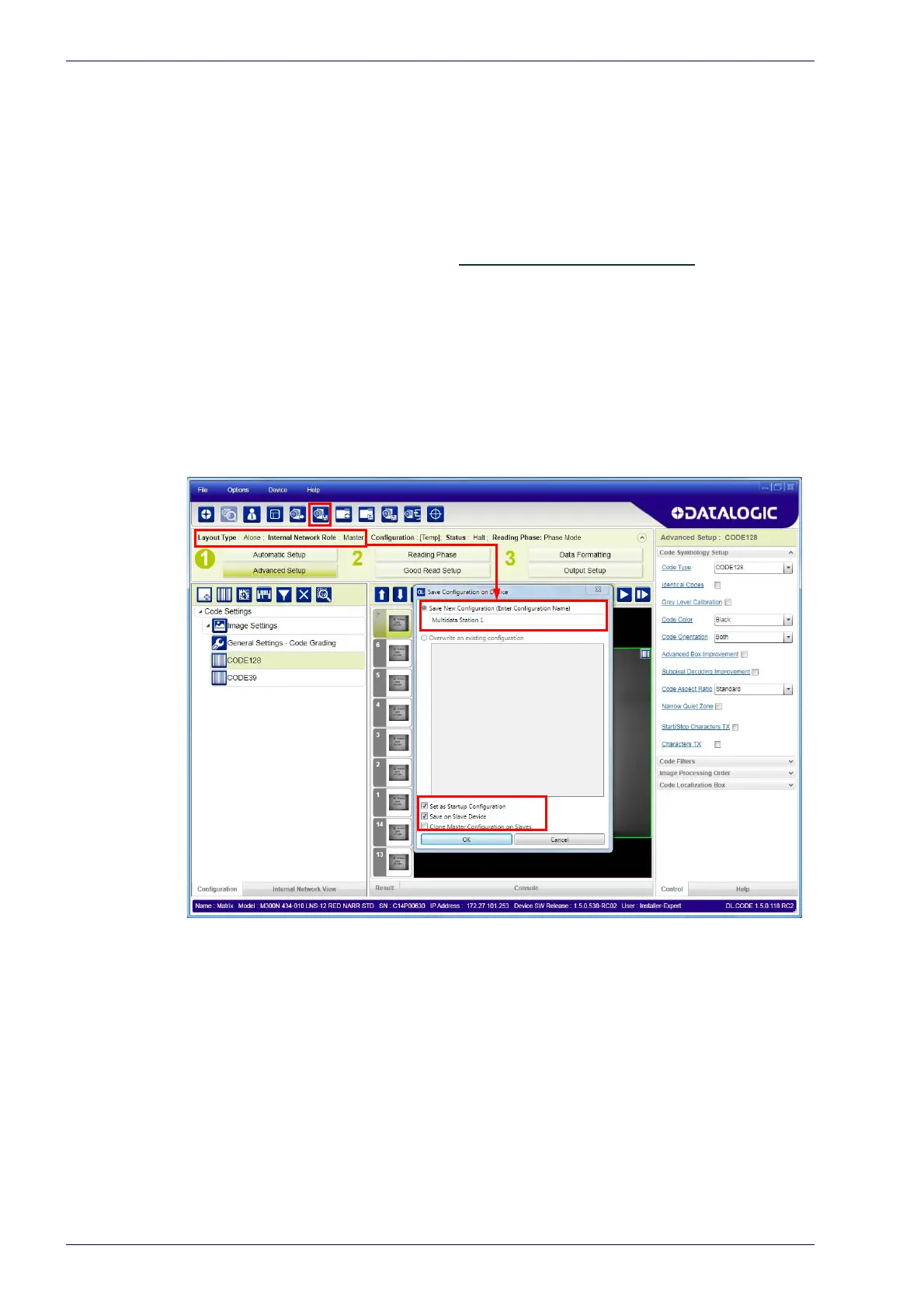

Figure 90 - Saving Multidata Configuration to Master
The jobs must not be cloned because the Master and Slaves have different input/
output communication channels. The readers are also working independently
from each other, often on separate stations with different code reading
requirements, different operating modes, etc.
2. Connect to each Slave reader via Ethernet (see note below), and set all the
c
onfiguration parameters of each Slave device.
