Datalogic Matrix 300N User Manual

Internal Network Configurations
Product Reference Guide 165
Synchronized ID-NET Network Configurations
The Synchronized ID-NET network communications between Master and Slave
are internally managed by the application software. A pre-configured job is
loaded with the Synchronized Layout Type and the correct Operating Mode for
both the Master and Slaves when either the Phase Mode or PackTrack
Configuration is selected from the Internal Network Setting feature.
1. Complete the configuration of
all the application parameters (including
Image Settings) and save them to the Master with an application relative
name and with the option to Clone Master configuration on Slaves.

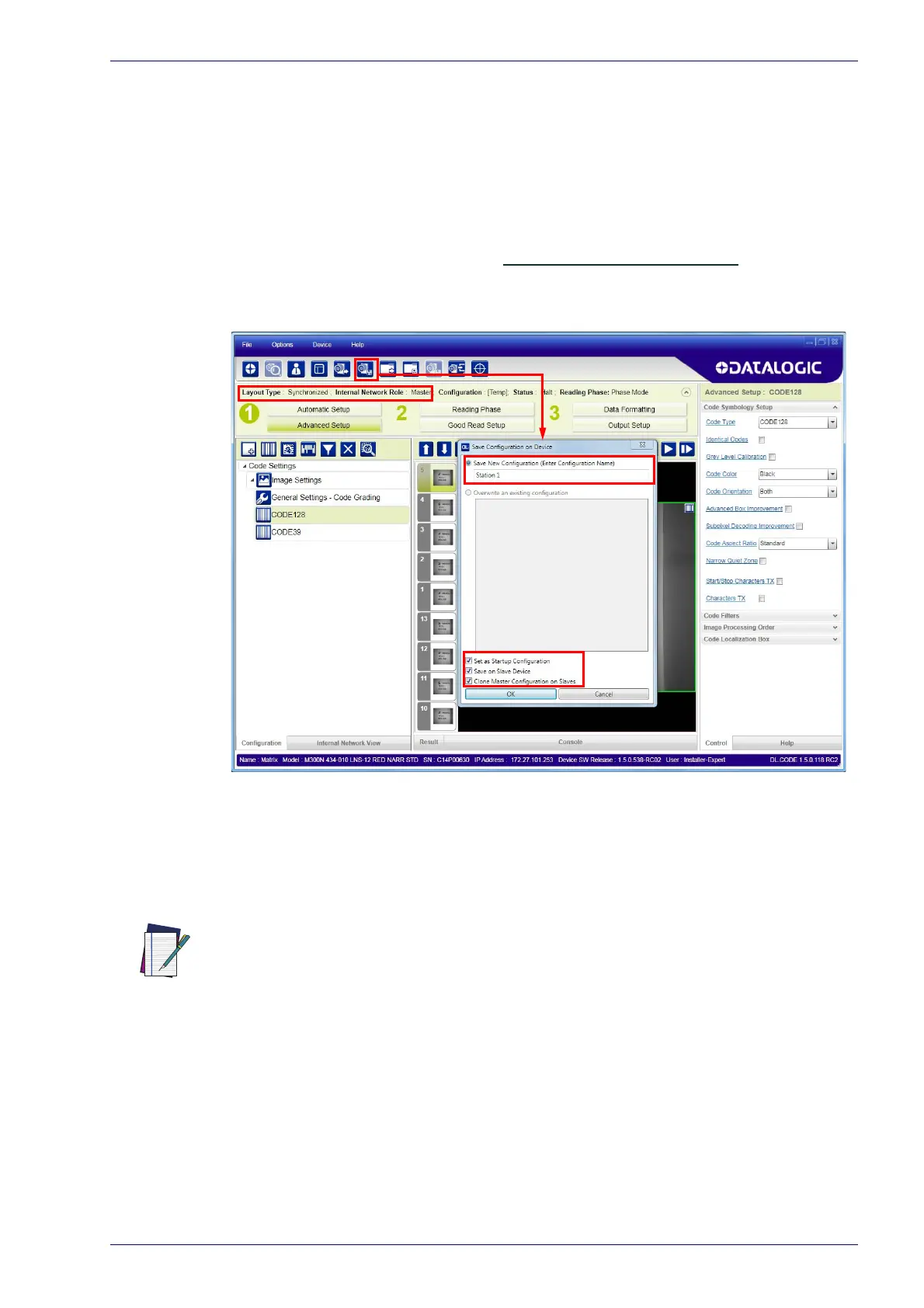

Figure 92 - Saving Synchronized Phase Mode Configuration to Master
2. Connect to each Slave reader via Ethernet (see note below), and set the
Slave specific parameters.
NOTE
If necessary, Slave device photometric (Image Settings) parameters must be config-
ured separately through DL.CODE. This is preferably done through each device’s
Ethernet TCP/IP channel. If Slave devices are not connected to Ethernet you must
temporarily (manually) connect them one by one to perform Image Settings.

Datalogic Matrix 300N Specifications

General

Type	Barcode module bar barcode readers
Sensor type	CMOS
Scanner type	1D/2D
Yaw reading angle	0 - 24 °
Optical sensor resolution	1024 pixels
Linear (1D) barcodes supported	-
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
Input voltage	10 - 30 V
Power consumption (typical)	5 W
Connectivity technology	Wired
Certification	AIM DPM, ISO/IEC 15415, ISO/IEC 15416, ISO/IEC 16022, ISO/IEC 18004, AS9132A
Product color	Blue, Metallic
Housing material	Aluminium, Plastic
International Protection (IP) code	IP67
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Depth	54 mm
Width	75 mm
Height	62 mm
Weight	238 g
