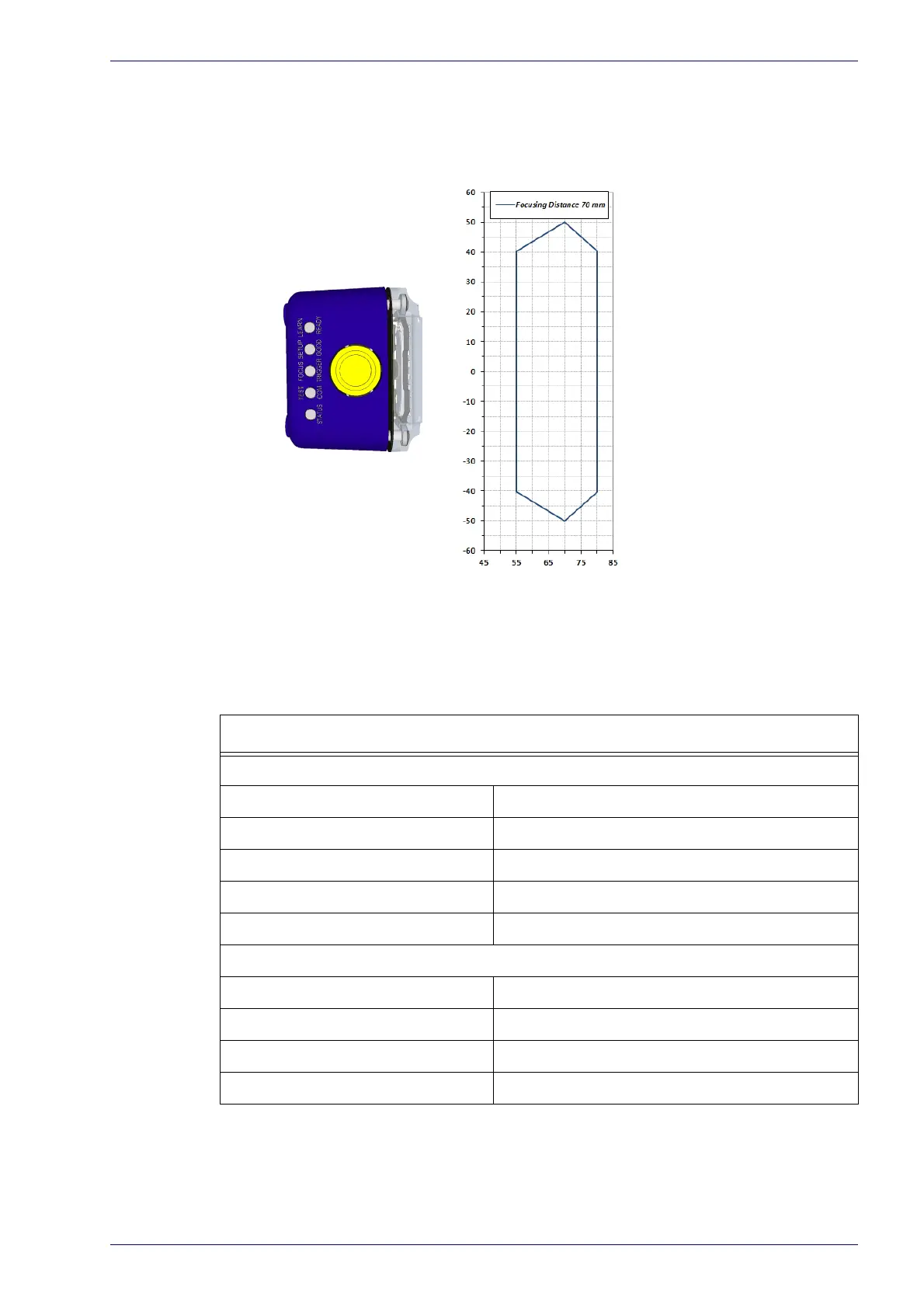

Reading Diagrams
Product Reference Guide 103
Matrix 300N 4x1-0xx (6 mm manual) 1D Codes (66°)
Matrix 300N 4x1-0xx (6 mm manual lens)
Code 128 0.12 mm (5 mils)
Reading Distance
Horizontal Reading Width
mm
in 2 2.5 3 3.5
-2
-1.5
-1
-.5
0
.5
1
1.5
2
Conditions
Hardware Settings
Code Symbology Code 128
Code Resolution 0.12 mm (5 mils)
Tilt Angle 0°
Skew Angle 15°
Focusing Distance (mm) 70
Software Parameters
Internal Lighting Very High Power Strobed
411-0xx Wide RED
Exposure Time (μs) 90
Gain 5
