Datalogic Matrix 300N User Manual

Reading Features
126 Matrix 300N

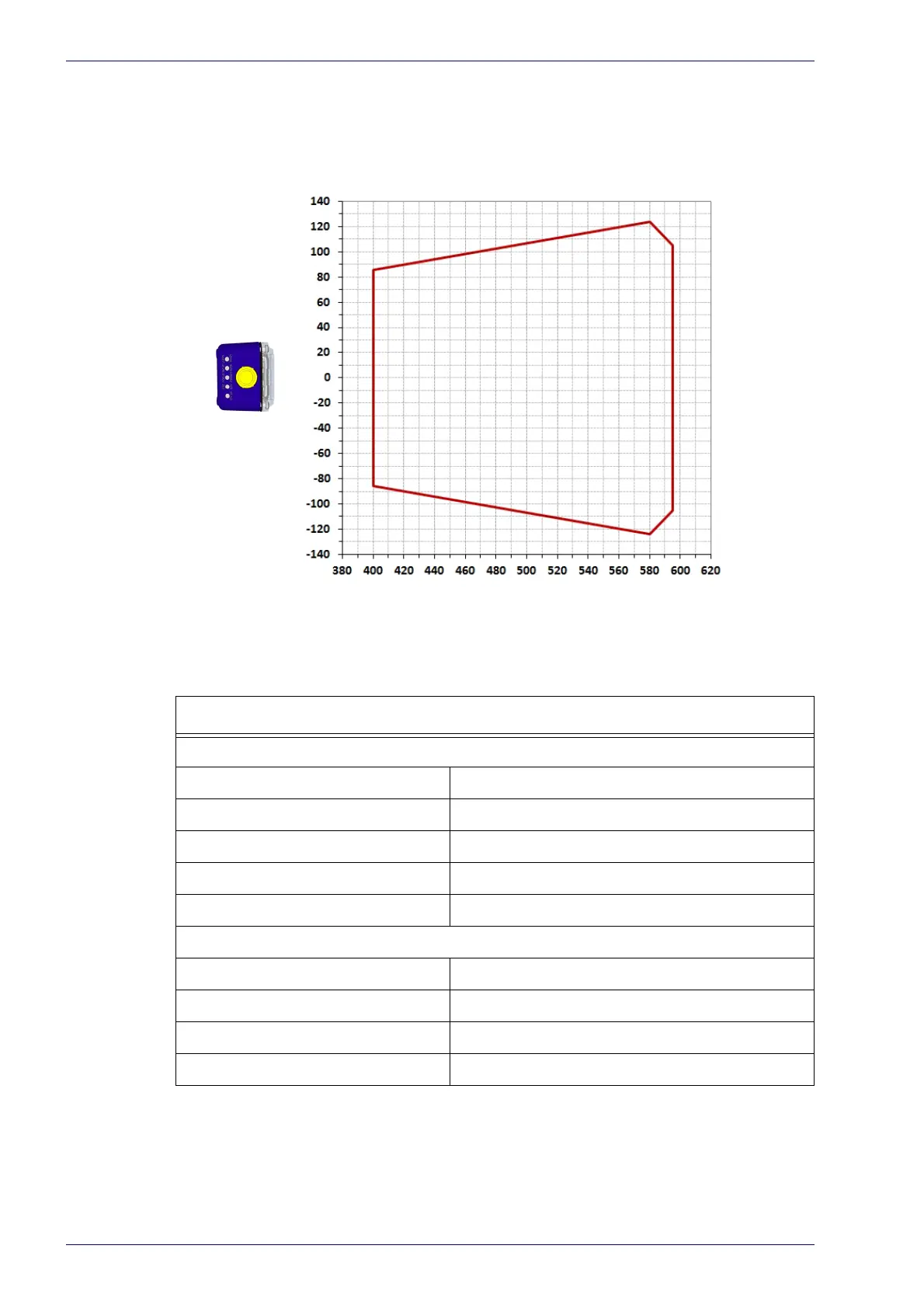

Matrix 300N 4x5-0xx (16 mm manual) 1D Codes (24°)
Matrix 300N 4x5-0xx (16 mm manual lens)
Code 128 0.25 mm (10 mils)
Reading Distance
Horizontal Reading Width
mm
in 15 16 17 18 19 20 21 22 23 24
-5
-4
-3
-2
-1
0
1
2
3
4
5
Conditions
Hardware Settings
Code Symbology Code 128
Code Resolution 0.25 mm (10 mils)
Tilt Angle 45°
Skew Angle 15°
Focusing Distance (mm) 500
Software Parameters
Internal Lighting Very High Power Strobed
435-0xx Narrow Red
Exposure Time (μs) 250
Gain 16

Datalogic Matrix 300N Specifications

General

Type	Barcode module bar barcode readers
Sensor type	CMOS
Scanner type	1D/2D
Yaw reading angle	0 - 24 °
Optical sensor resolution	1024 pixels
Linear (1D) barcodes supported	-
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
Input voltage	10 - 30 V
Power consumption (typical)	5 W
Connectivity technology	Wired
Certification	AIM DPM, ISO/IEC 15415, ISO/IEC 15416, ISO/IEC 16022, ISO/IEC 18004, AS9132A
Product color	Blue, Metallic
Housing material	Aluminium, Plastic
International Protection (IP) code	IP67
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Depth	54 mm
Width	75 mm
Height	62 mm
Weight	238 g
