Mounting And Positioning Matrix 300N
Product Reference Guide 57
Mounting And Positioning Matrix 300N
Using the Matrix 300N mounting brackets you can obtain rotation on the various
axes of the reader as shown in the diagram below:

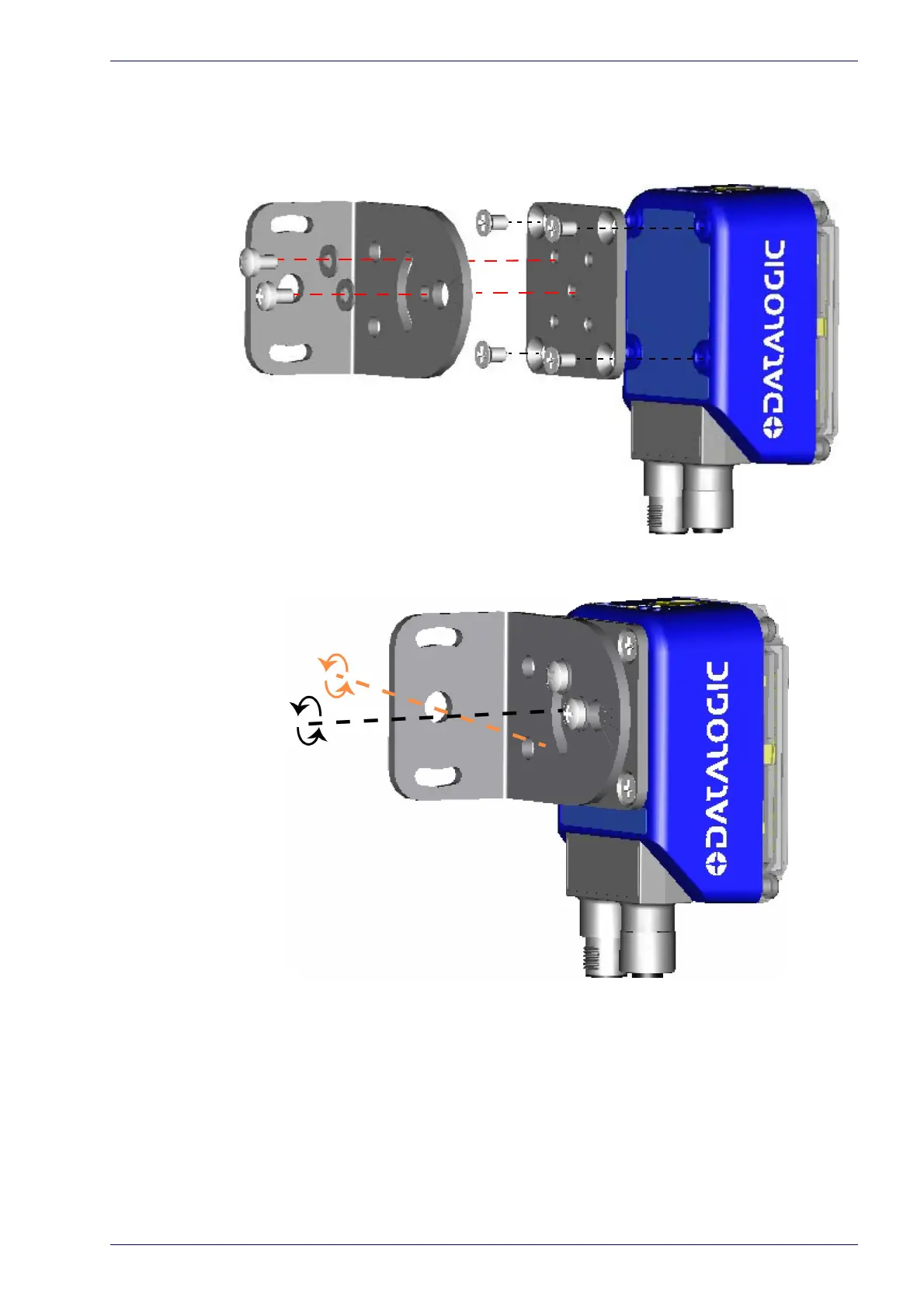

Figure 29 - Positioning with Mounting Bracket
Matrix 300N is able to decode code labels at a variety of angles. However,
significant angular distortion may degrade reading performance.
When mounting Matrix 300N, take into consideration these idea
l label position
angles: Pitch or Skew 10° to 20° and Tilt 0°.
