Manual Calibration
The following examples show some of the typical conditions occurring during
the installation and how they can be tuned manually:
Under-exposure
To correct this result it is recommended to change the following parameters in their
order of appearance:
1. increase the Exposure Time
2. increase the Ga
in
NOTE

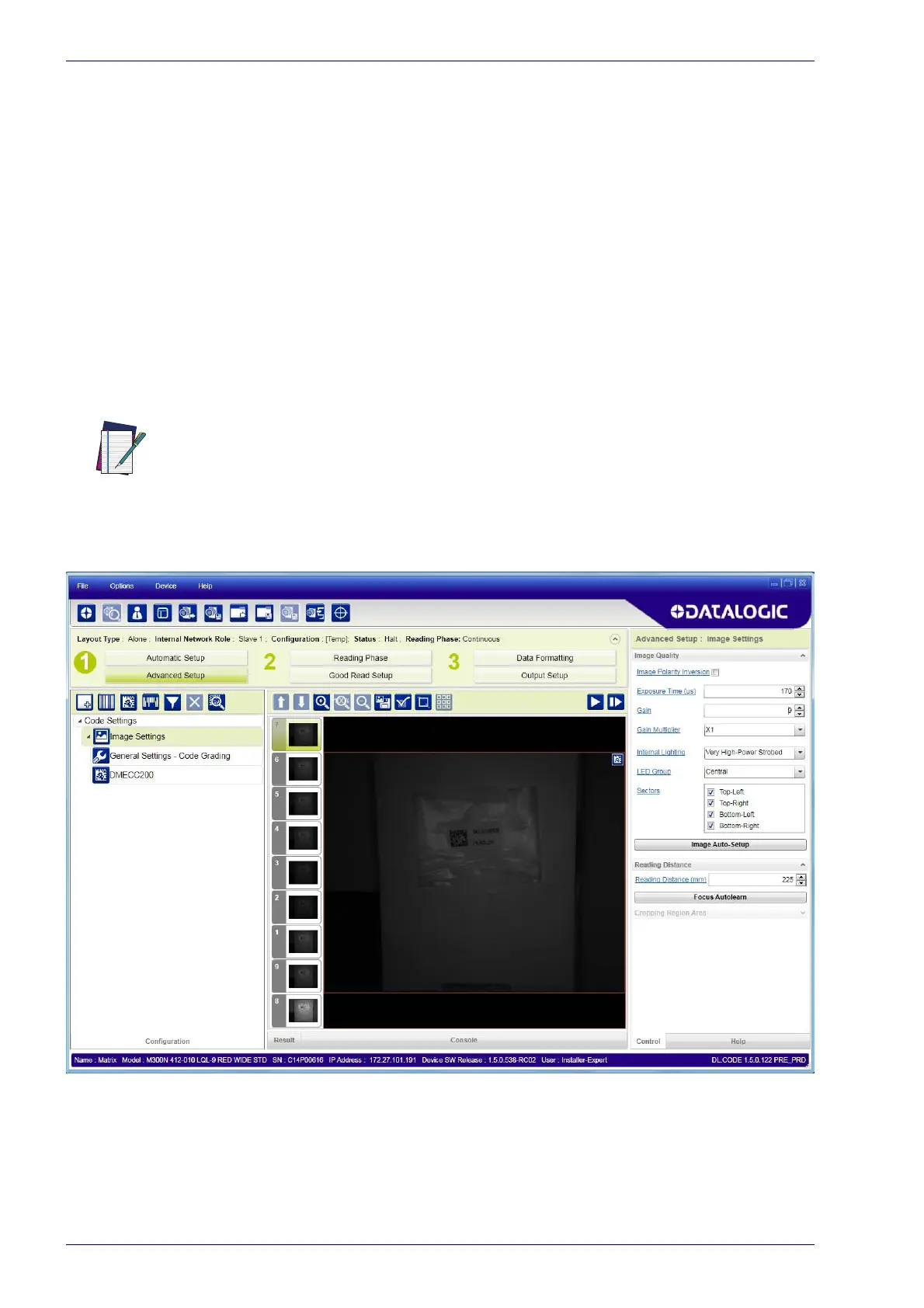

Figure 85 - Example Under Exposure: Too Dark
In general, a longer exposure time corresponds to a lighter image but is susceptible to
blurring due to code movement. Exposure time is also limited by the Internal Lighting
mode parameter. Longer exposure times can be set if the power strobe level is low-
ered.
High gain settings may produce a grainy image that may affect the decoding process.

Datalogic Matrix 300N Specifications

General

Type	Barcode module bar barcode readers
Sensor type	CMOS
Scanner type	1D/2D
Yaw reading angle	0 - 24 °
Optical sensor resolution	1024 pixels
Linear (1D) barcodes supported	-
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
Input voltage	10 - 30 V
Power consumption (typical)	5 W
Connectivity technology	Wired
Certification	AIM DPM, ISO/IEC 15415, ISO/IEC 15416, ISO/IEC 16022, ISO/IEC 18004, AS9132A
Product color	Blue, Metallic
Housing material	Aluminium, Plastic
International Protection (IP) code	IP67
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Depth	54 mm
Width	75 mm
Height	62 mm
Weight	238 g
