Display Messages

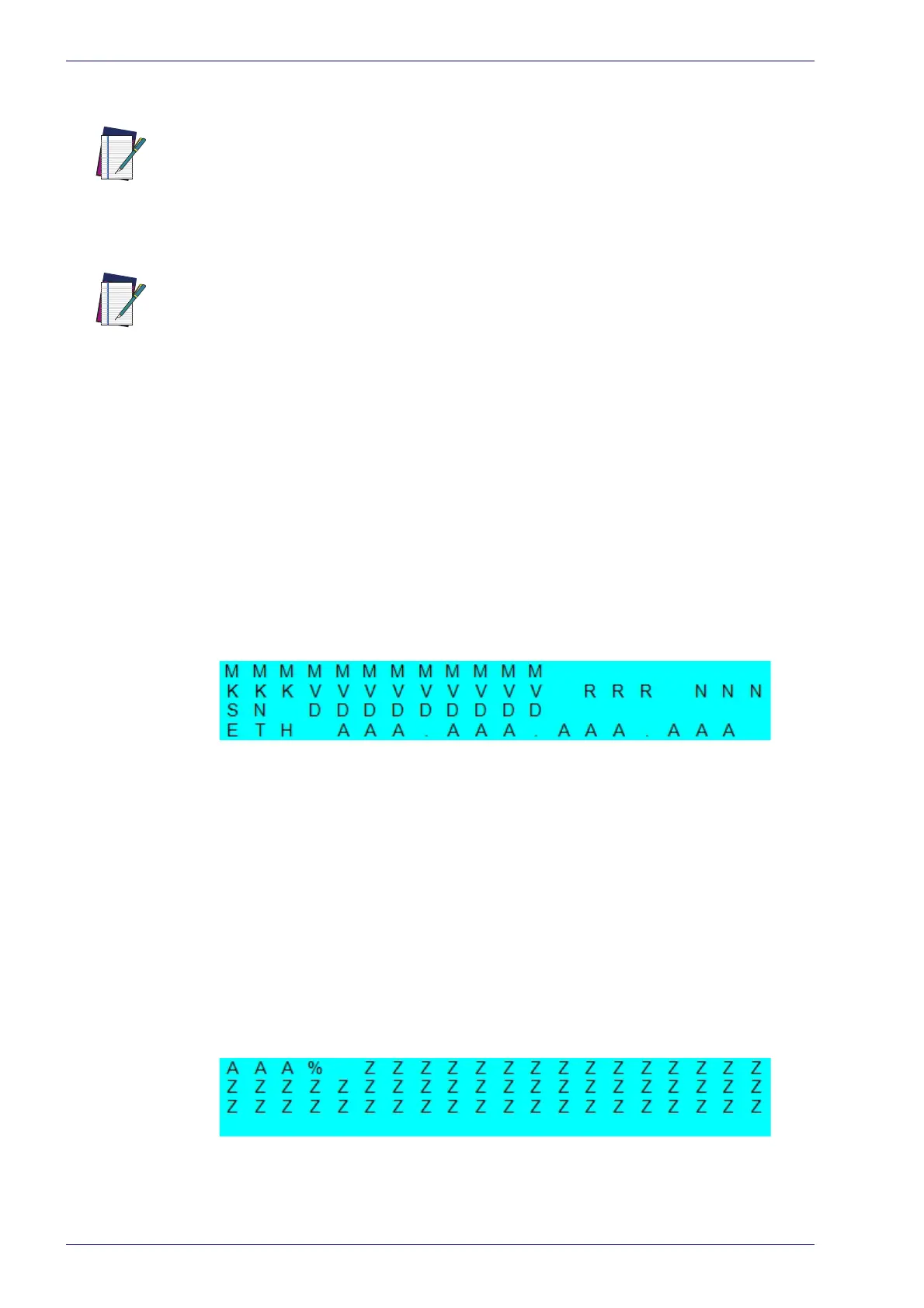

The following examples of Remote Display messages are given to help interpret
the information reported. The content of these messages depends on the
connected reader.
Welcome Message:
M = scanner model
K = software – STD=Standard, SS =Special
V = software version
R = Device Network Type – MUL=Multidata, SYN=Synchronized, ALN=Alone
N = Device Network Set
ting – M00=ID-NET Network Master, Sxx= ID-NET
Network Slave address, Null string= Alone (no network)
D = device serial number
A = Ethernet IP Address
Test Mode Results:
A = reading percentage from 000 to 100%.
Z = code content.
When the reader is connected to DL.CODE, access to the BM150 HMI Interface is dis-
abled.
The “Reset Reader to Factory Default Environment” function
of the HMI Interface is
only available on the local device (reader), and not on the BM150.
To Next Page
