X-PRESS Human Machine Interface
Product Reference Guide 45
Test Mode

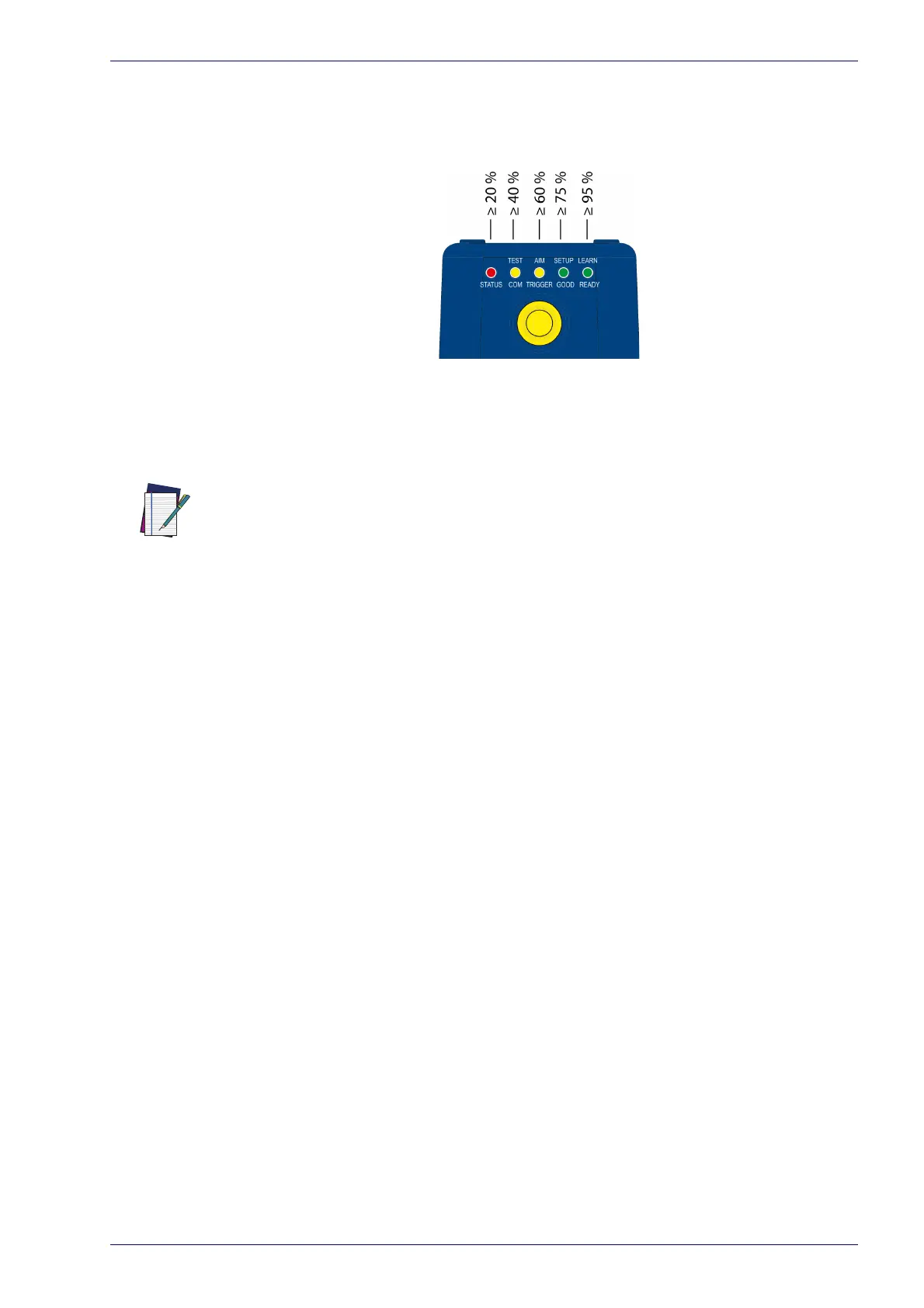

Once entered, the Bar Graph on the five LEDs is activated and if the imager starts
reading codes the Bar-Graph shows the Good Read Rate. The Bar Graph has the
following meaning:
In case of a NO READ condition, only the Status LED (red) is on and blinks.
To exit the Test Mode, press the X-PRESS
push button once.
NOTE
Aim/Autofocus
This function causes the laser pointers to turn on. Since the laser pointers are
centered on the FOV they can be used to position the imager on the code. The
Aim LED blinks to indicate this state. After a short delay, this function also
performs the Autofocus procedure for Liquid Lens models.
You can exit the Aim/Autofocus function at any time by pressing the X-PRESS
pu
sh button once. After a short delay the autofocus procedure is canceled and
the laser pointers turn off.
Setup
Once entered, the imager automatically performs Image Acquisition parameter
calibration for the specific code presented to it.
The Setup LED will blink until the procedure is completed.
The Setup procedure ends when the Image Acquisition parameters are
successfully save
d in the reader memory, the Setup LED will stop blinking and
Matrix 300N emits 3 high pitched beeps.
If the calibration cannot be reached aft
er a timeout of about 5 (five) seconds,
Matrix 300N will exit without saving the parameters to memory, the Setup LED
will stop blinking and in this case Matrix 300N emits a long low pitched beep.
By default, the Test exits automatically after three minutes.
