Software Configuration
136
Matrix 300N
Reader Configuration
For an example of Matrix device configuration see the example in Chapter 1,
Steps 5-6.
NOTE
When all the configuration parameters are set correctly and saved to the device,
you can perform a Backup to File and/or to an External storage device (BM100,
etc.). See Backup and Restore Through DL.CODE.
NOTE
Auto-Calibration
DL.CODE provides the Image Auto-Setup tool to maximize the reading
performance by tuning the acquisition parameters (photometry) automatically.
By selecting the Image Auto-Setup tool from the Image Settings branch in the
Advanced Setup step, the following window appears:

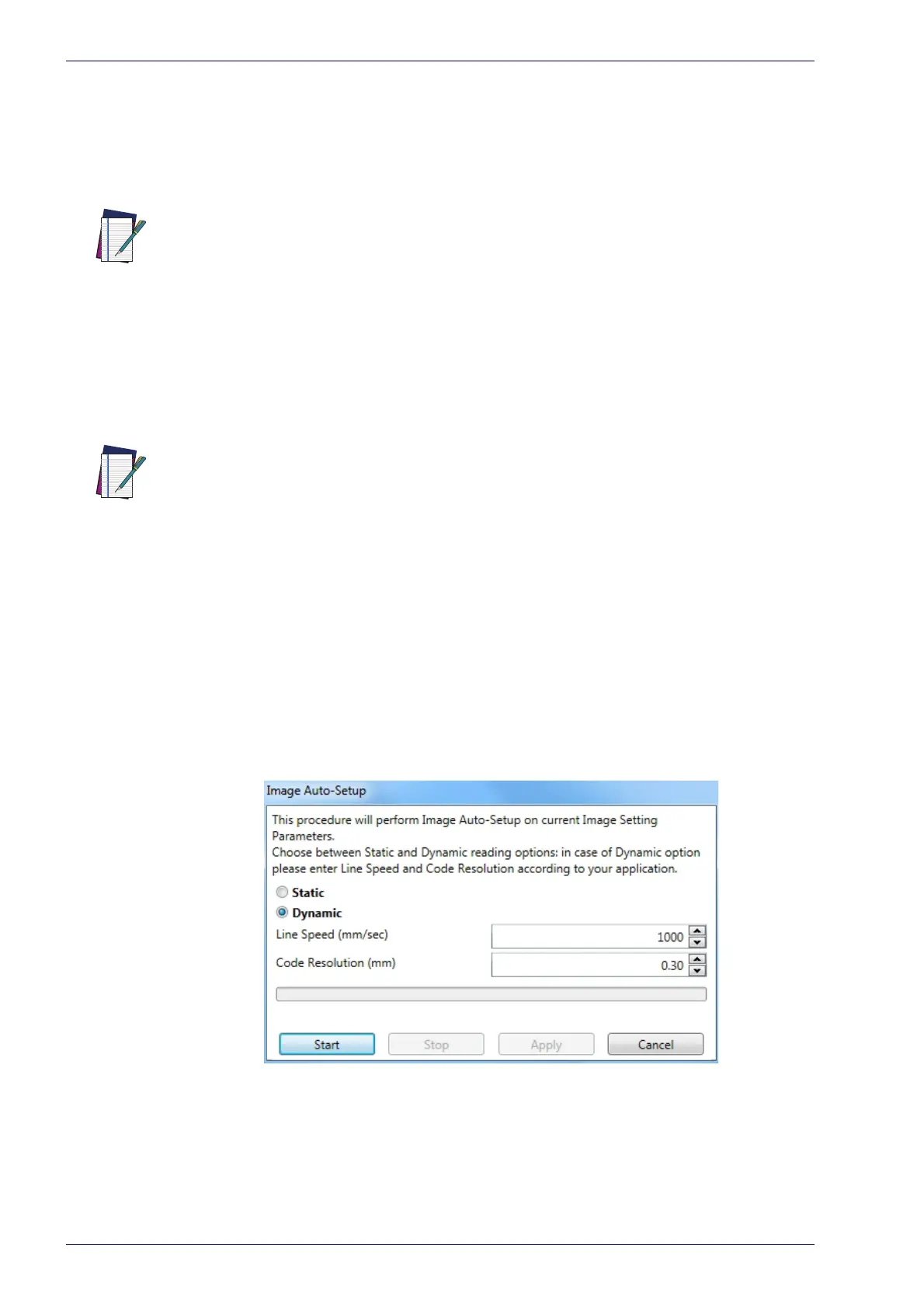

Figure 83 - Image Auto-Setup
Select the Static or Dynamic Self-Tuning option; Start Image Auto-Setup and
Apply to the Image Settings. The Advanced Setup window works interactively so
that you can see the results of the parameter setting changes as well as the
decoding results (Results panel).
Especially for lengthy configurations, it is always good practice to periodically save
the configuration to permanent memory (Save on Device) to avoid losing the configu-
ration in Temporary Memory. You must give a name to the new configuration or over-
write an existing one (except for Default which cannot be modified).
An improvement in the Matrix N Family readers allows them t
o contain several con-
figurations or jobs in permanent memory.
This means that in addition to your application configuration(s), the Default configu-
ration is always present on the reader and in fact it is not modifiable and cannot be
deleted.
