In X-PRESS Configuration mode the colors and meaning of these five LEDs are
described in X-PRESS Human Machine Interface.
The keypad button (Figure 13, 8), is software programmabl
e. By default it starts
the X-PRESS interface for quick installation without using a PC (see "St
ep 4 - X-
PRESS Configuration" on page 6).
ID-NET
The ID-NET network is a built-in high-speed interface
dedicated for high-speed reader interconnection. ID-
NET is in addition to the Main and Auxiliary serial
interfaces.

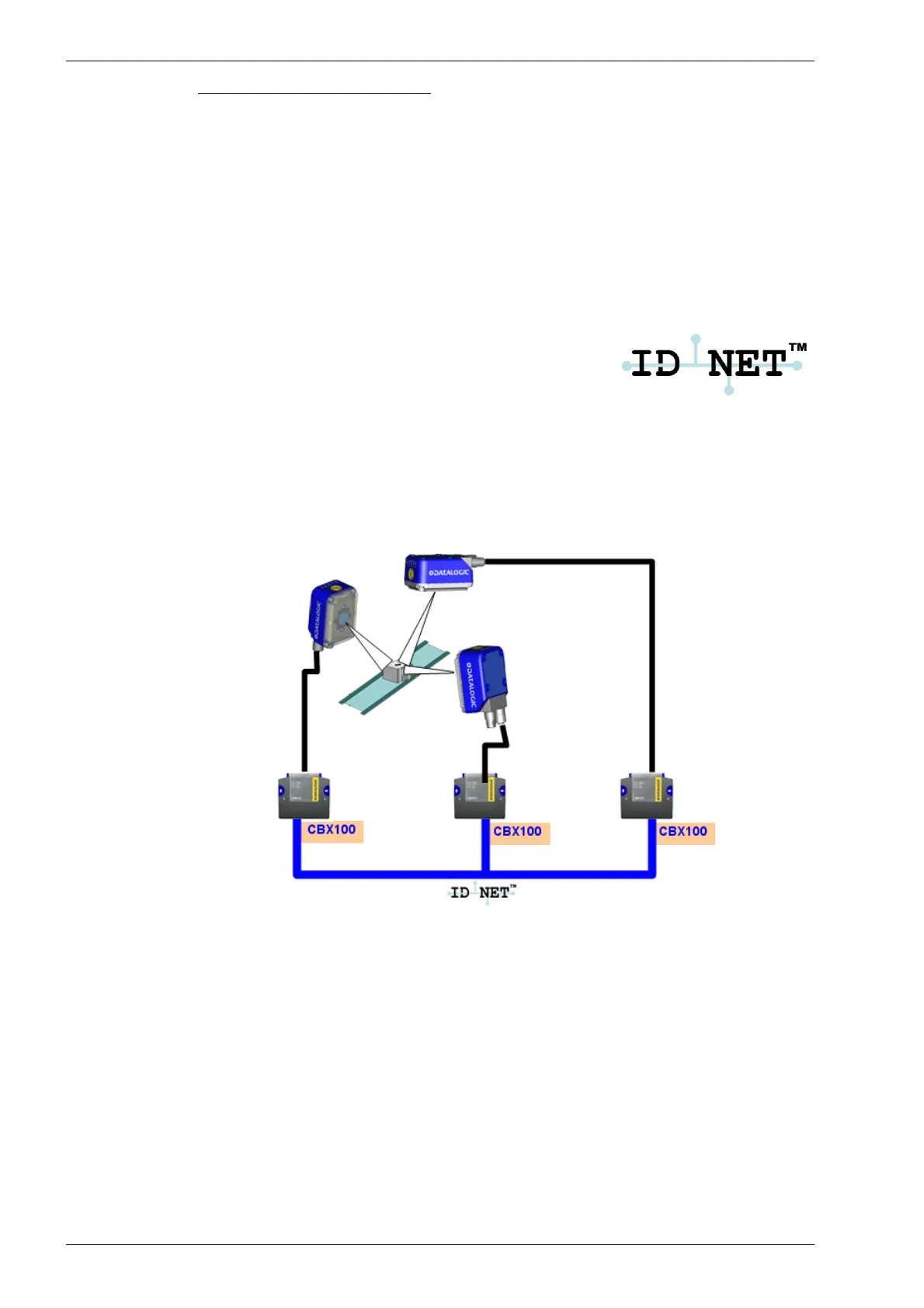

The following network configurations are available:
• ID-
NET Synchronized: Single station – multiple readers
ID-NET interface allows local connection of multiple readers reading different
sides of the same target. All readers share a single presence sensor and activate/
deactivate simultaneously.
At the end of each reading phase a single data message is transmitted to the
h
ost. Thanks to ID-NET, data communication among readers is highly efficient
so that an immediate result will be available.
See "I
D-NET Interface" on page 67 for connection details and "Internal Network
Configurations" on page 157 for configuration details.
