Rapid Configuration
6 Matrix 300N
Step 4 - X-PRESS Configuration
Once Matrix 300N is focused at the correct reading distance, you must configure
it for optimal code reading relative to your application.
Aim
1. Enter the Aim function by pressing and
holding the X-PRESS push button until
the Aim LED is on.
2. Release the button to enter the Aim
function. The laser pointers turn on.
3. Select a single code from your applica-
tion. Position the code at the center of
the FOV (equidistant from the aiming
indicators.
For Liquid Lens models, the reader may start flashing
and try to perform autofocus, however this will have
no effect on the application specific code; it can be
ignored.
Exit the Aim function by pressing the X-
PRESS push button once. After a short
delay the Aim function is canceled and
the laser pointers turn off.

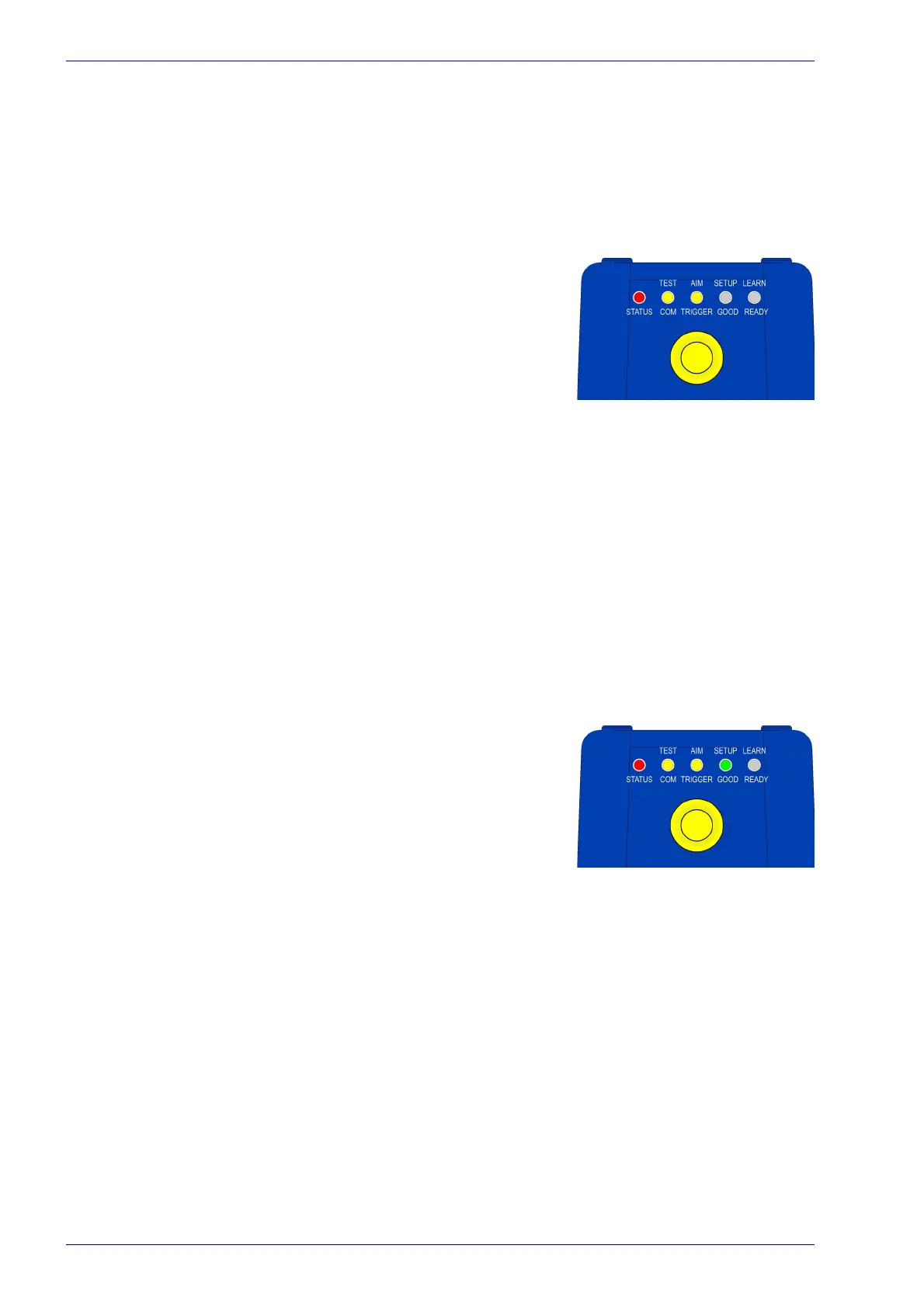

Figure 5 - X-PRESS Interface: Aim
Function
Setup
Figure 6 - X-PRESS Interface:
Setup Function
4. Enter the Setup function by pressing and
holding the X-PRESS push button until
the Setup LED is on.
5. Release the button to enter the Setup
function. The Setup LED will blink until
the procedure is completed.
The Setup procedure ends when the
Image Acquisition parameters are suc-
cessfully saved in the reader memory, the
Setup LED will stop blinking and Matrix
300N emits 3 high pitched beeps.
If the calibration cannot be reached after
a timeout of about 5 (five) seconds,
Matrix 300N will exit without saving the
parameters to memory, the Setup LED
will stop blinking and in this case Matrix
300N emits a long low pitched beep.
