On-Board Ethernet Connector
Product Reference Guide 219
* Do not leave floating, see "RS422 Full Duplex Interface" on page 66 for connection
details.
In order to meet EMC requirements:
• connect the reader chassis to the plant earth ground by means of a flat
copper
braid shorter than 100 mm;
• connect your cable shield to the lo
cking ring nut of the connector.
On-Board Ethernet Connector
A Standard M12 D-Coded female connector is provided for the on-board Ether-
net connection. This interface is IEEE 802.3 10 BaseT and IEEE 802.3u 100
Ba
seTx compliant.

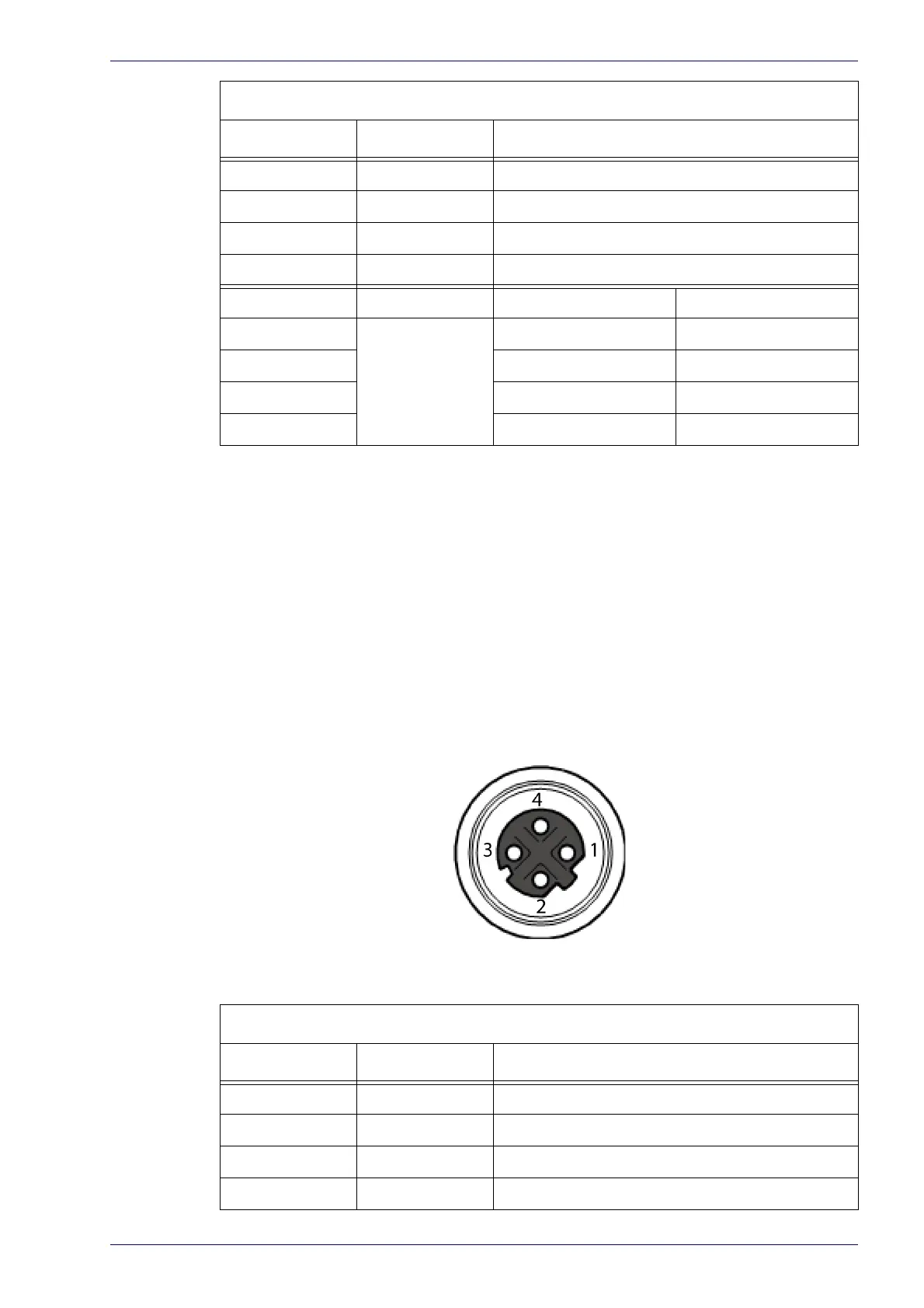

Figure 89 - M12 D-Coded Female Ethernet Network Connector
On-Board Ethernet Network Connector Pinout
Pin Name Description
1 TX+ Transmit data +
2 TX- Transmit data -
3 RX+ Receive data +
4 RX- Receive data -
14 RX Auxiliary RS232 RX
4 TX Auxiliary RS232 TX
7 ID+ ID-NET network data +
15 ID- ID-NET network data -
Pin Name
RS232 RS422 Full-Duplex
17
Main Interface
(SW Selectable)
TX TX+
11 RX *RX+
12 - TX-
10 - *RX-
Power, Com and I/O Connector Pinout
Pin Name Description

Datalogic Matrix 300N Specifications

General

Type	Barcode module bar barcode readers
Sensor type	CMOS
Scanner type	1D/2D
Yaw reading angle	0 - 24 °
Optical sensor resolution	1024 pixels
Linear (1D) barcodes supported	-
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
Input voltage	10 - 30 V
Power consumption (typical)	5 W
Connectivity technology	Wired
Certification	AIM DPM, ISO/IEC 15415, ISO/IEC 15416, ISO/IEC 16022, ISO/IEC 18004, AS9132A
Product color	Blue, Metallic
Housing material	Aluminium, Plastic
International Protection (IP) code	IP67
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Depth	54 mm
Width	75 mm
Height	62 mm
Weight	238 g
