Rapid Configuration
10
Matrix 300N
Device Discovery
The User Interface opens and displays a list of all the devices belonging to the
Local Area Network. DL.CODE has a discovery feature to accomplish this task.

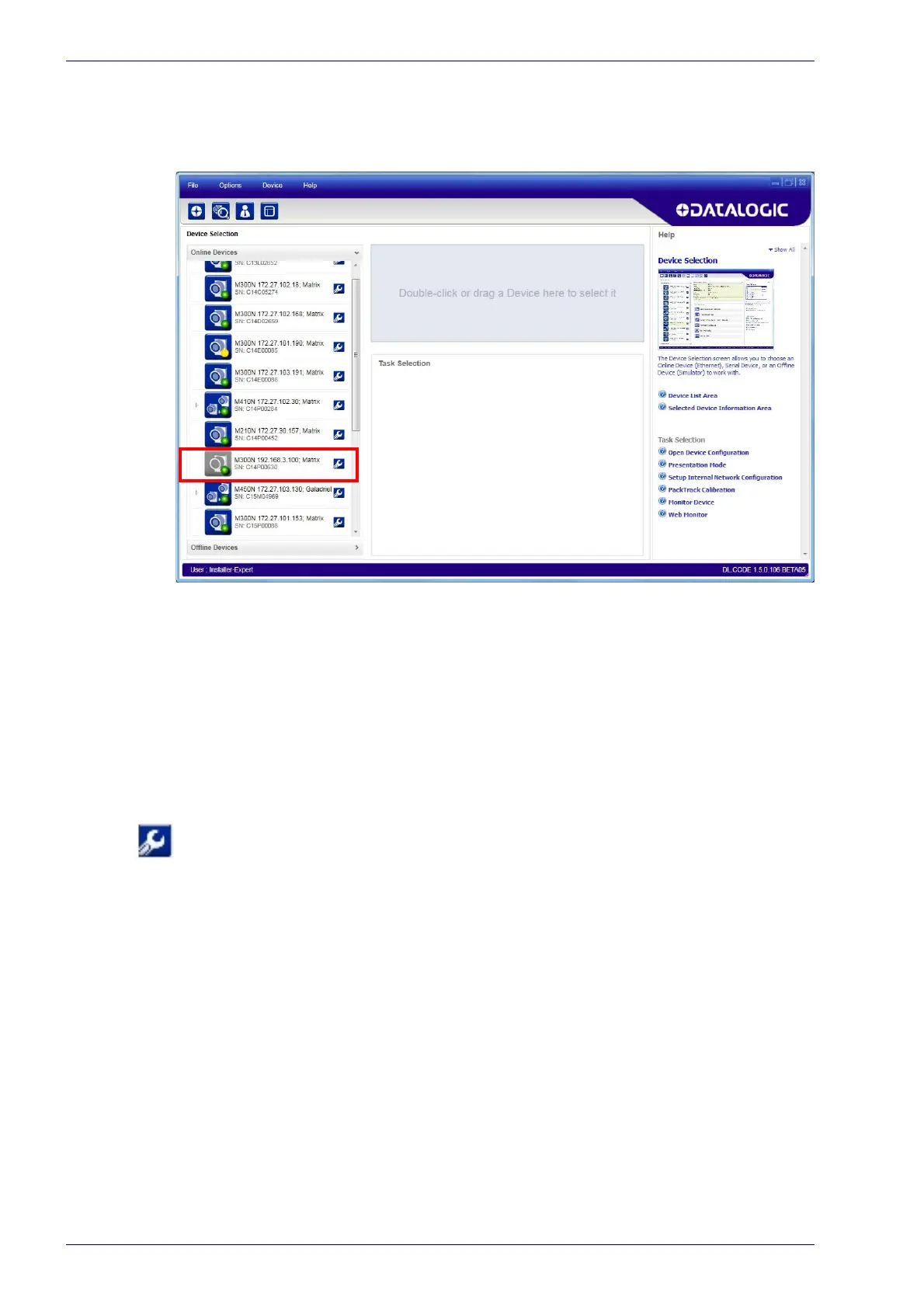

Figure 8 - Device Discovery
The discovery feature will also show devices not belonging to the LAN and
display them in gray (see Figure 8).
3. First the device must be added to the LAN by al
igning its IP Address to the
network. The network administrator should provide valid LAN address(es).
4. Find your device in the list by matching it
s serial number (SN) then click on
the device wrench icon
to open the Device Environment Configuration win-
dow.
5. Change the Ethernet Settings (IP Address, Subnet
Mask, Gateway Address
etc.) according to the network requirements.
