Datalogic Matrix 300N User Manual

xiv Matrix 300N

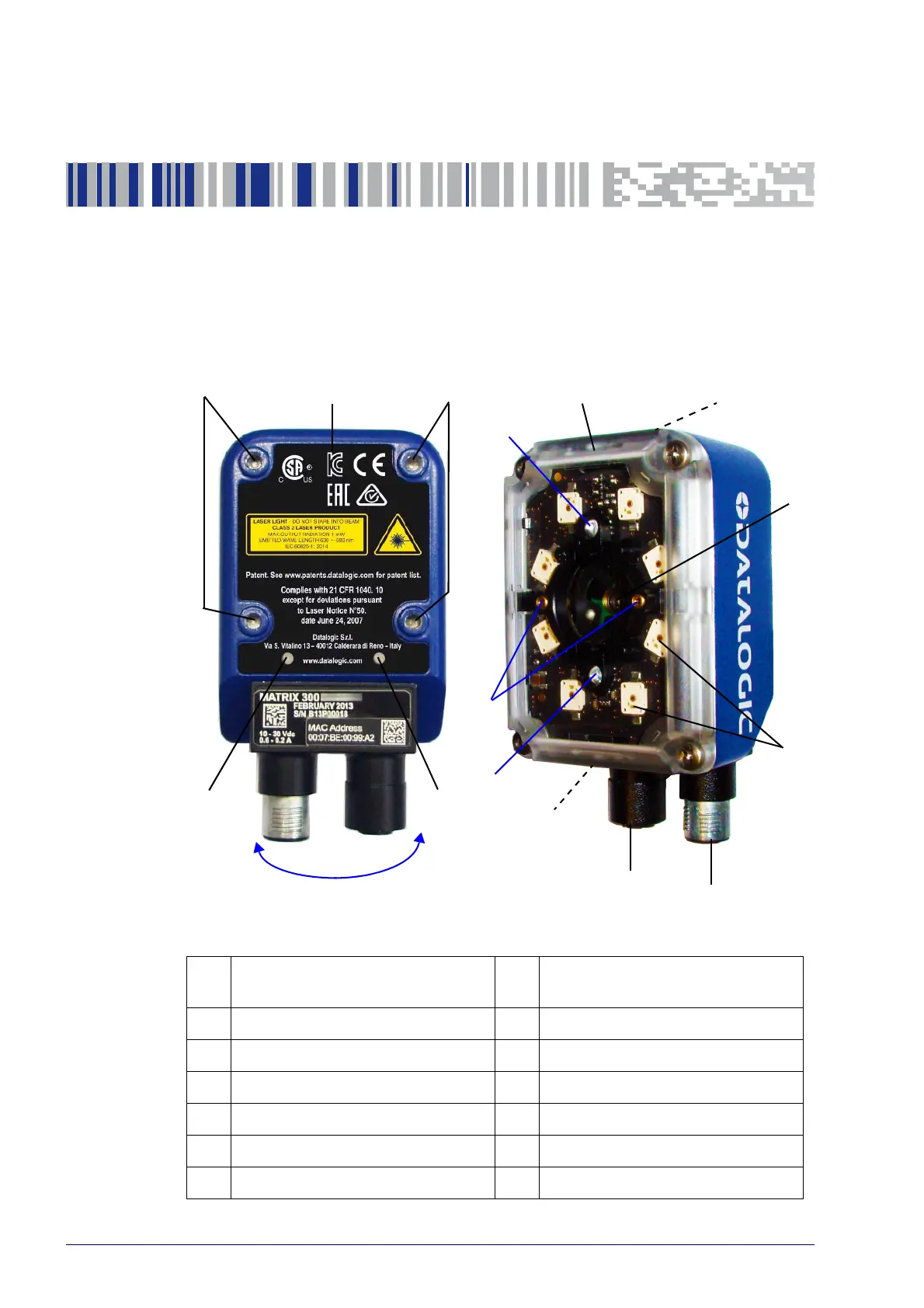

General View
Matrix 300N™ 1.3 MP
Software Adjustable Focus (Liquid Lens) Models
Device Class and Warning Labels
Power - Serial Interfaces - I/O
Co
nnector
Bracket Mounting Holes (4) Ethernet Connector
Good Read LED (green) No Read LED (red)
Lens Cover Aiming System Laser Pointers
HMI X-PRESS Interface Ethernet Connection LED
Lens Power On LED
Internal Illuminator
 
 
 
 
 
 

Connector block
rotates to 90° position
Figure A
















Datalogic Matrix 300N Specifications

General

Type	Barcode module bar barcode readers
Sensor type	CMOS
Scanner type	1D/2D
Yaw reading angle	0 - 24 °
Optical sensor resolution	1024 pixels
Linear (1D) barcodes supported	-
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
Input voltage	10 - 30 V
Power consumption (typical)	5 W
Connectivity technology	Wired
Certification	AIM DPM, ISO/IEC 15415, ISO/IEC 15416, ISO/IEC 16022, ISO/IEC 18004, AS9132A
Product color	Blue, Metallic
Housing material	Aluminium, Plastic
International Protection (IP) code	IP67
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Depth	54 mm
Width	75 mm
Height	62 mm
Weight	238 g
