Step 7 - Test Mode
Product Reference Guide 35
Step 7 - Test Mode
Use a code suitable to your application to test the reading performance of the
system.
1. Enter the
Test function by pressing and holding the X-PRESS push button
until the Test LED is on.
2. Release the button to enter the
Test function.
Once entered, the Bar Graph on the five
LEDs is activated and if the reader
starts reading codes, the Bar-Graph shows the Good Read Rate.

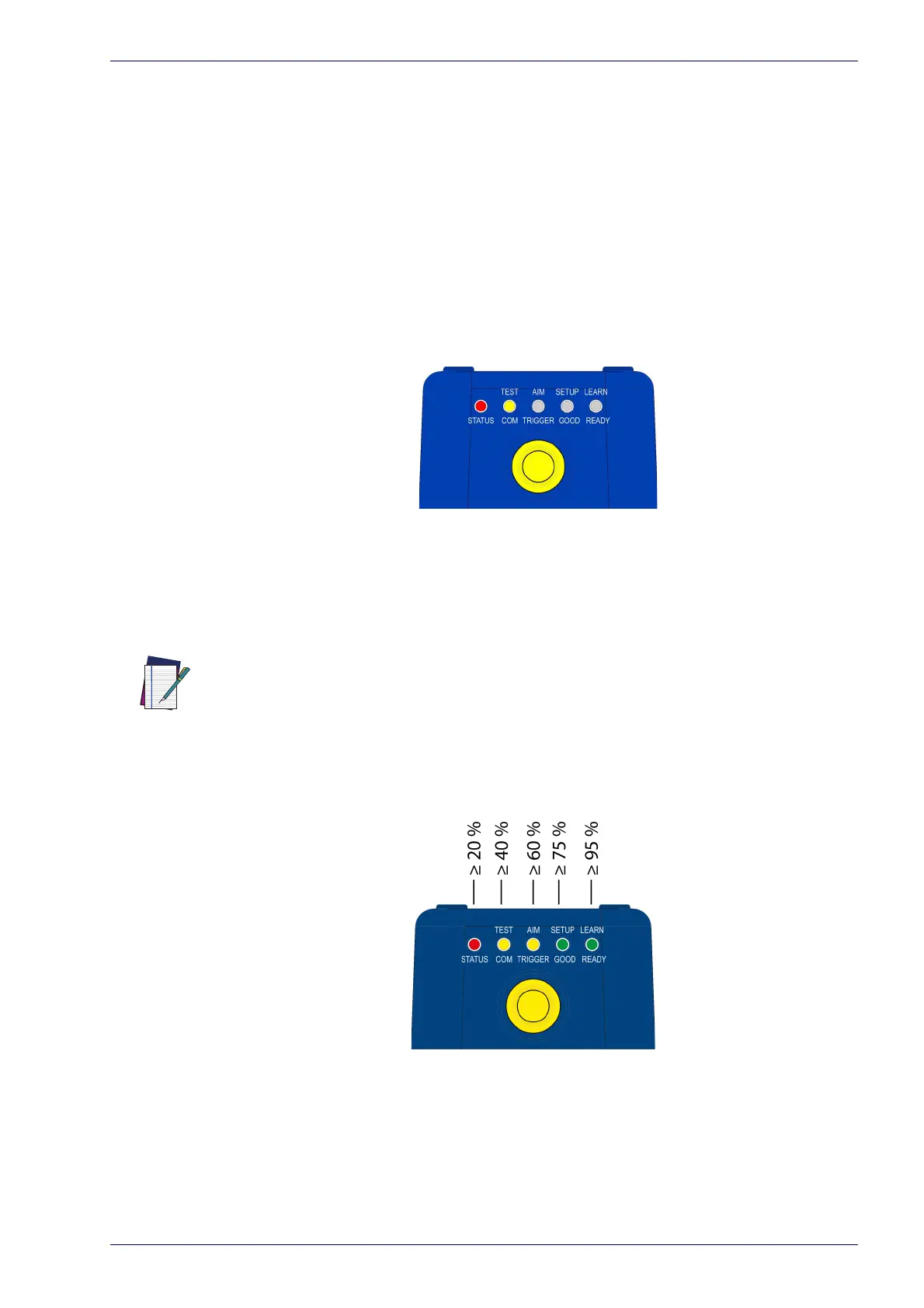

Figure 11 - X-PRESS Interface: Test Function
3. To exit the Test, press the X-PRESS push button once.
NOTE
The Bar Graph has the following meaning:
Figure 12 - Test Function Bar Graph
In case of No Read condition, only the STATUS LED is on and blinks.
By default, the Test exits automatically after three minutes.
