Datalogic Matrix 300N User Manual

Step 6 - Device Configuration
Product Reference Guide 17
Advanced Setup for Software Adjustable Focus Models (Liquid Lens)
NOTE
To begin configuration, the reader must be correctly mounted at the correct
reading distance for your application so that its Field of View covers the
application reading area.

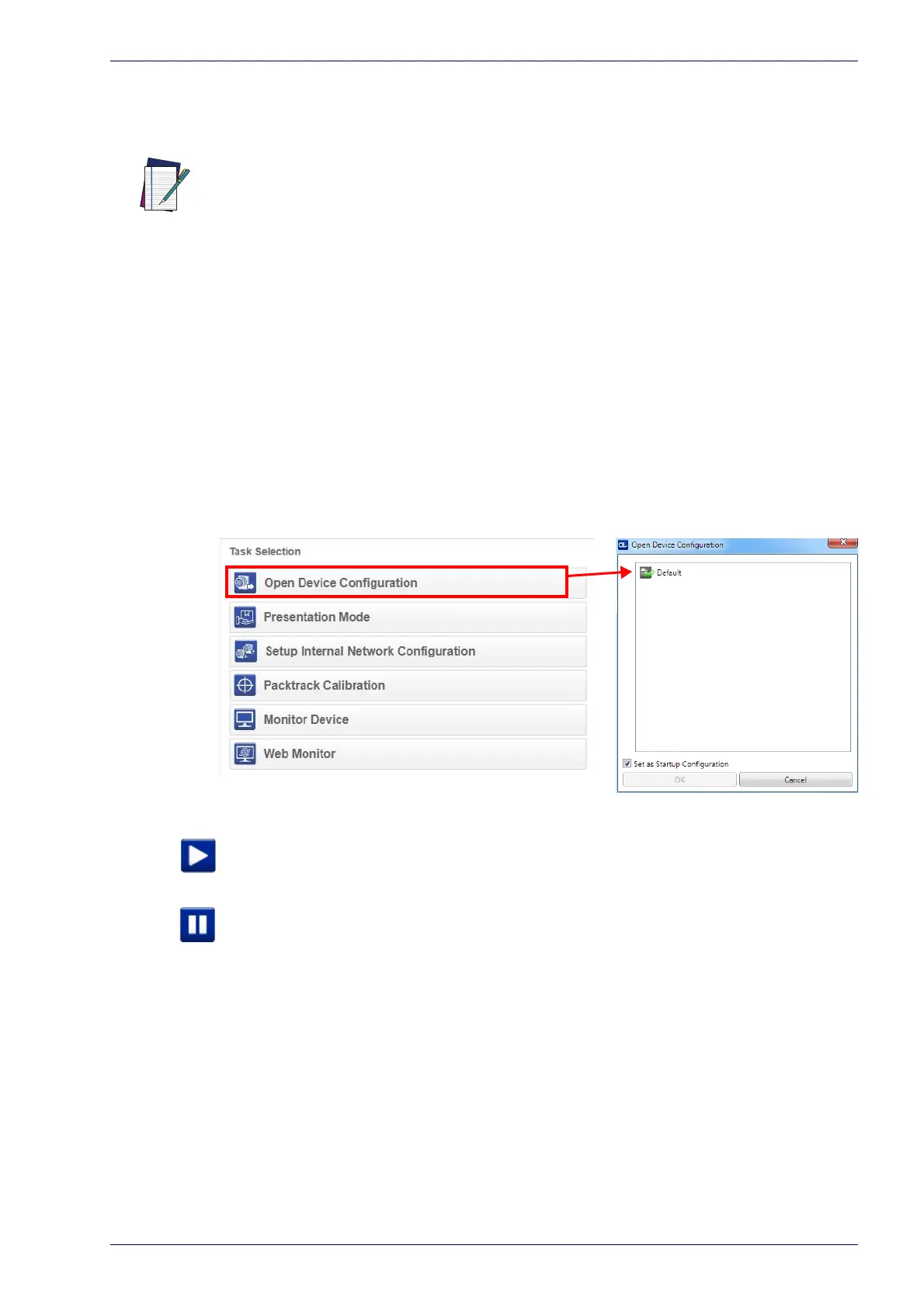

1. From the Task Area select Ope
n Device Configuration.
2. The Open Device Configuration window opens showing the list of currently
save
d configurations (jobs) saved on the device. For new devices, the only
saved job is the Default configuration. Click OK. The device enters run
mode and begins acquiring images.
3. Click on the Advanced Setup button and press the Play icon.
4. Place the G
rade A Barcode Test Chart in the reading area. Once positioned,
stop image acquisition by clicking on the Pause button
.
For Manual Adjustable Focus models go to page 24 then continue the configuration
with the "
Reading Phase" on page 31.

Datalogic Matrix 300N Specifications

General

Type	Barcode module bar barcode readers
Sensor type	CMOS
Scanner type	1D/2D
Yaw reading angle	0 - 24 °
Optical sensor resolution	1024 pixels
Linear (1D) barcodes supported	-
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
Input voltage	10 - 30 V
Power consumption (typical)	5 W
Connectivity technology	Wired
Certification	AIM DPM, ISO/IEC 15415, ISO/IEC 15416, ISO/IEC 16022, ISO/IEC 18004, AS9132A
Product color	Blue, Metallic
Housing material	Aluminium, Plastic
International Protection (IP) code	IP67
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Depth	54 mm
Width	75 mm
Height	62 mm
Weight	238 g
