Datalogic Matrix 300N User Manual

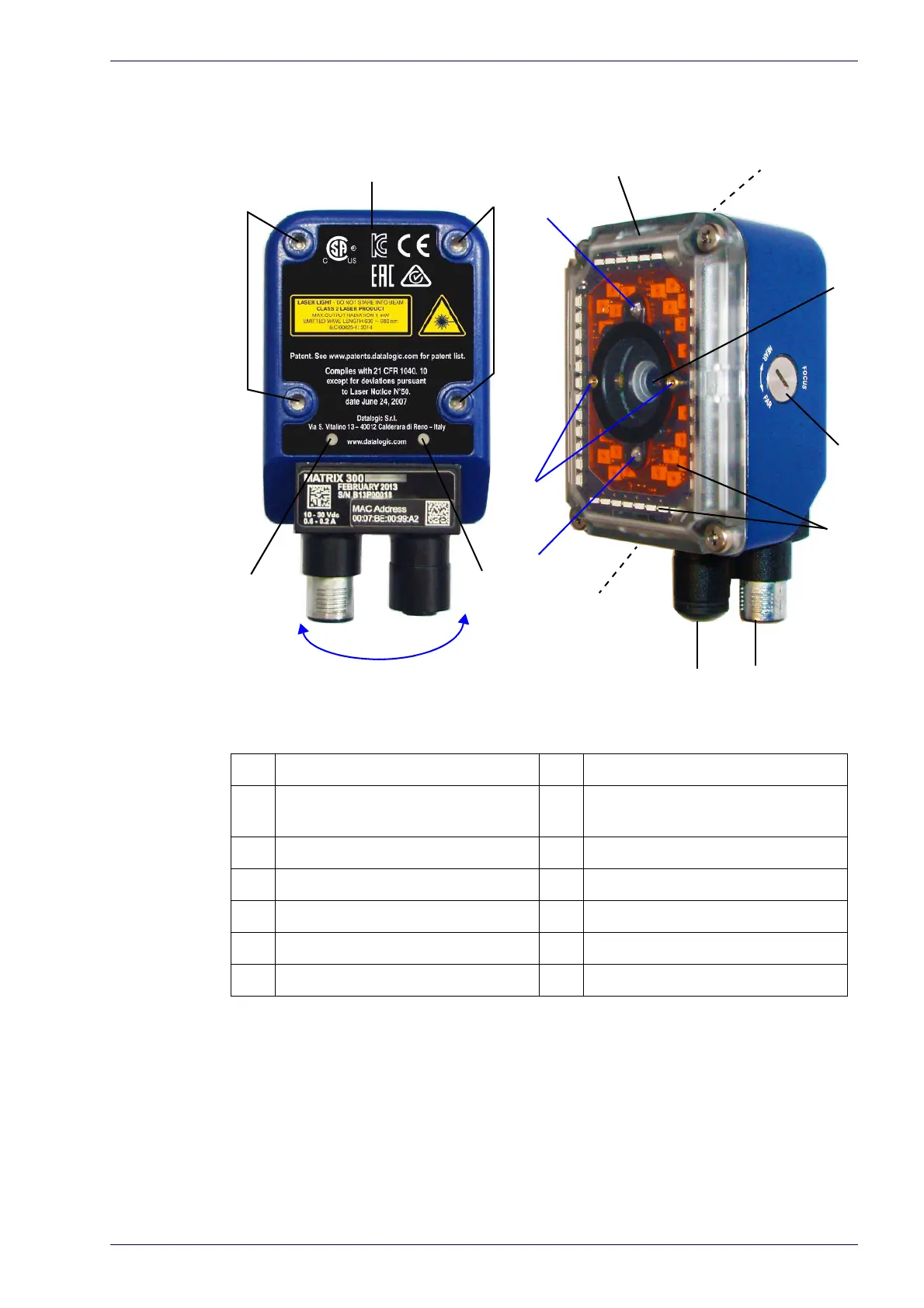

General View
Product Reference Guide xv
Matrix 300N™ 1.3 MP
Manual Adjustable Focus Models
Connector block
rotates to 90° position
Figure B
















Device Class and Warning Labels Internal Illuminator
Bracket Mounting Holes (4)
Power - Serial Interfaces - I/O
Conn
ector
Good Read LED (green) Ethernet Connector
Lens Cover No Read LED (red)
HMI X-PRESS Interface Aiming System Laser Pointers
Lens Ethernet Connection LED
Focus Adjustment Screw Power On LED
 
 
 
 
 
 
 

Datalogic Matrix 300N Specifications

General

Type	Barcode module bar barcode readers
Sensor type	CMOS
Scanner type	1D/2D
Yaw reading angle	0 - 24 °
Optical sensor resolution	1024 pixels
Linear (1D) barcodes supported	-
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
Input voltage	10 - 30 V
Power consumption (typical)	5 W
Connectivity technology	Wired
Certification	AIM DPM, ISO/IEC 15415, ISO/IEC 15416, ISO/IEC 16022, ISO/IEC 18004, AS9132A
Product color	Blue, Metallic
Housing material	Aluminium, Plastic
International Protection (IP) code	IP67
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Depth	54 mm
Width	75 mm
Height	62 mm
Weight	238 g
