Datalogic Matrix 300N - Page 143

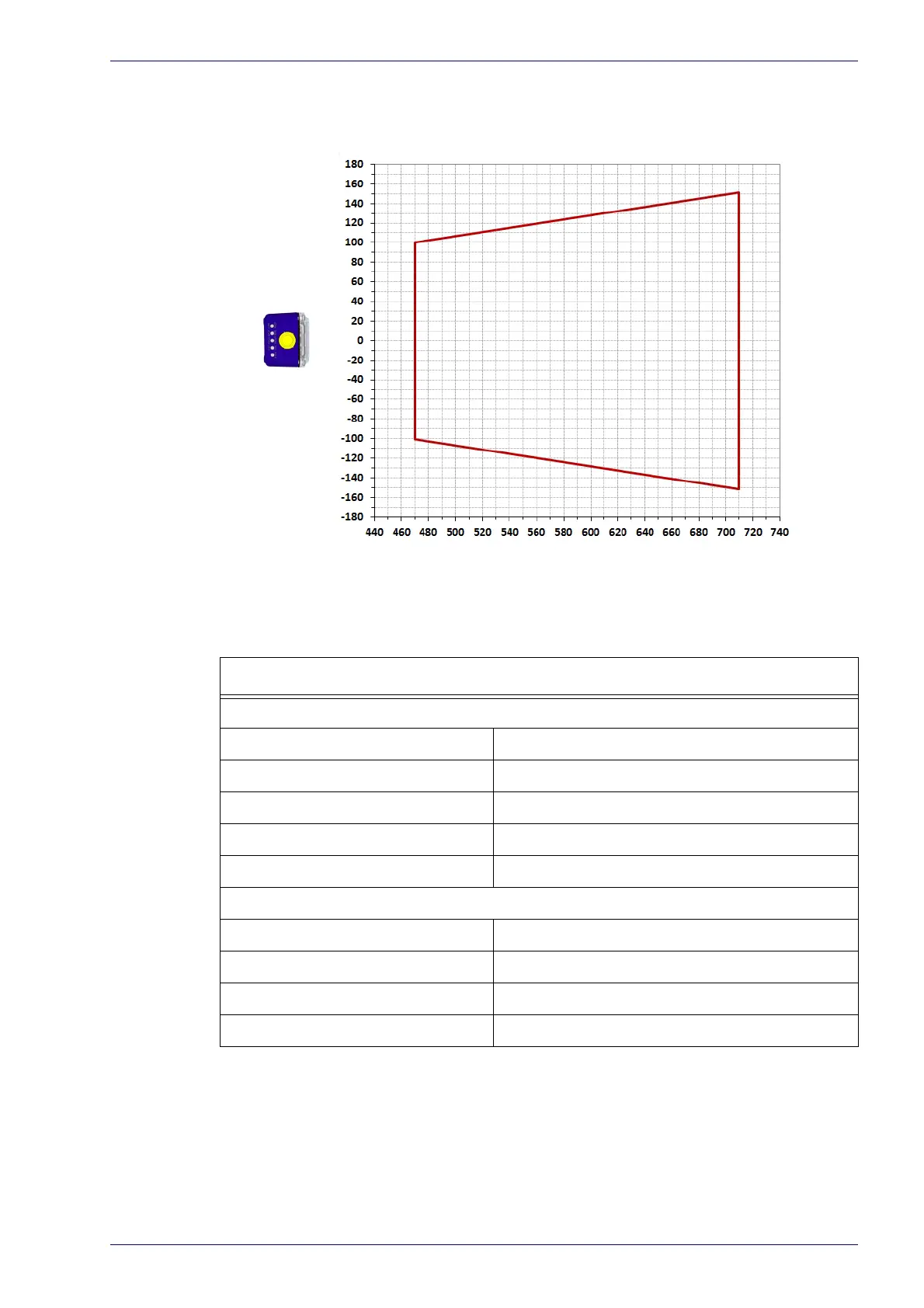

Reading Diagrams
Product Reference Guide 127
Matrix 300N 4x5-0xx (16 mm manual lens)
Code 128 0.30 mm (12 mils)
Reading Distance
Horizontal Reading Width
mm
in 18 20 22 24 26 28
-4
-2
0
2
4
-6
6
Conditions
Hardware Settings
Code Symbology Code 128
Code Resolution 0.30 mm (12 mils)
Tilt Angle 45°
Skew Angle 15°
Focusing Distance (mm) 590
Software Parameters
Internal Lighting Very High Power Strobed
435-0xx Narrow Red
Exposure Time (μs) 300
Gain 19
