Datalogic Matrix 300N User Manual

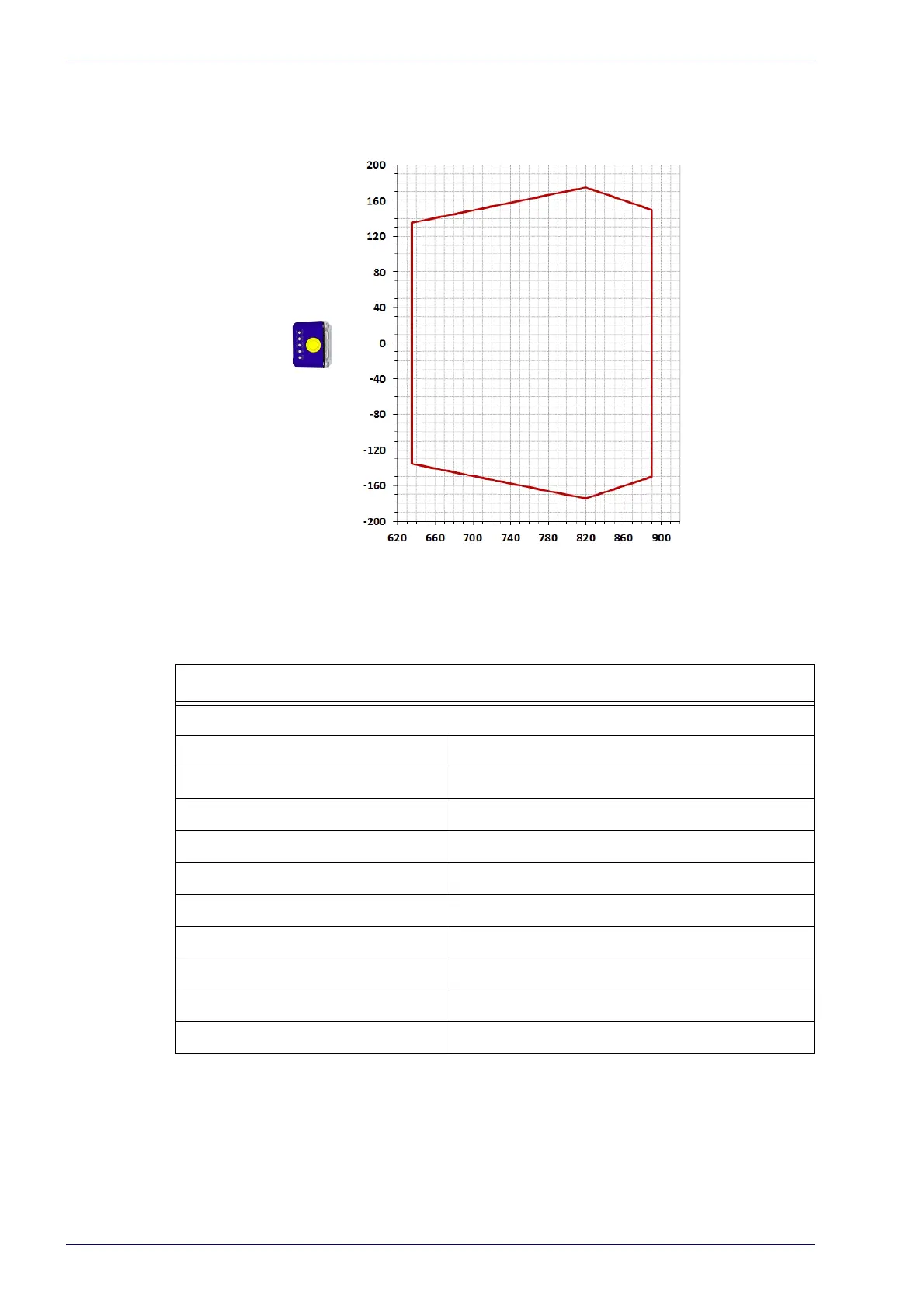

Reading Features
128 Matrix 300N
Matrix 300N 4x5-0xx (16 mm manual lens)
Code 128 0.38 mm (15 mils)
Reading Distance
Horizontal Reading Width
mm
in 24 26 28 30 32 34 36
-8
-6
-4
0
2
4
6
8
-2
Conditions
Hardware Settings
Code Symbology Code 128
Code Resolution 0.38 mm (15 mils)
Tilt Angle 45°
Skew Angle 15°
Focusing Distance (mm) 700
Software Parameters
Internal Lighting Very High Power Strobed
435-0xx Narrow Red
Exposure Time (μs) 500
Gain 24

Datalogic Matrix 300N Specifications

General

Type	Barcode module bar barcode readers
Sensor type	CMOS
Scanner type	1D/2D
Yaw reading angle	0 - 24 °
Optical sensor resolution	1024 pixels
Linear (1D) barcodes supported	-
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
Input voltage	10 - 30 V
Power consumption (typical)	5 W
Connectivity technology	Wired
Certification	AIM DPM, ISO/IEC 15415, ISO/IEC 15416, ISO/IEC 16022, ISO/IEC 18004, AS9132A
Product color	Blue, Metallic
Housing material	Aluminium, Plastic
International Protection (IP) code	IP67
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Depth	54 mm
Width	75 mm
Height	62 mm
Weight	238 g
