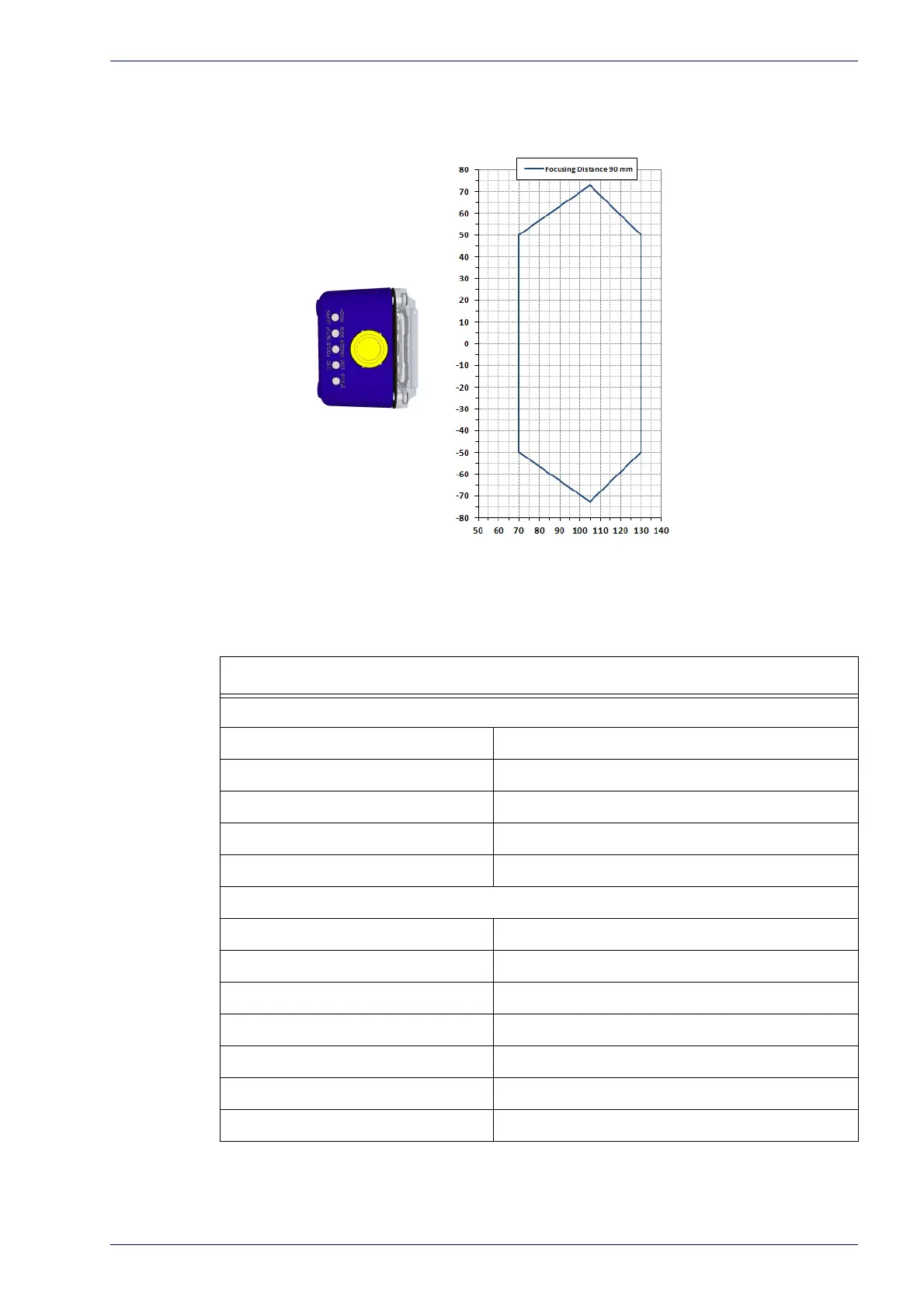

Reading Diagrams
Product Reference Guide 111
Matrix 300N 4x1-0xx (6 mm manual lens)
Data Matrix 0.38 mm (15 mils)
Reading Distance
Horizontal Reading Width
mm
in 2 3 4 5 6
-3
-2
-1
0
1
2
3
Conditions
Hardware Settings
Code Symbology Data Matrix ECC 200
Code Resolution 0.38 mm (15 mils)
Tilt Angle 45°
Skew Angle 10°
Focusing Distance (mm) 90
Software Parameters
Internal Lighting Very High Power Strobed
411-0xx Wide Red
Exposure Time (μs) 80
Gain 8
481-0xx MLT-DPM
Exposure Time (μs) 80
Gain 12
