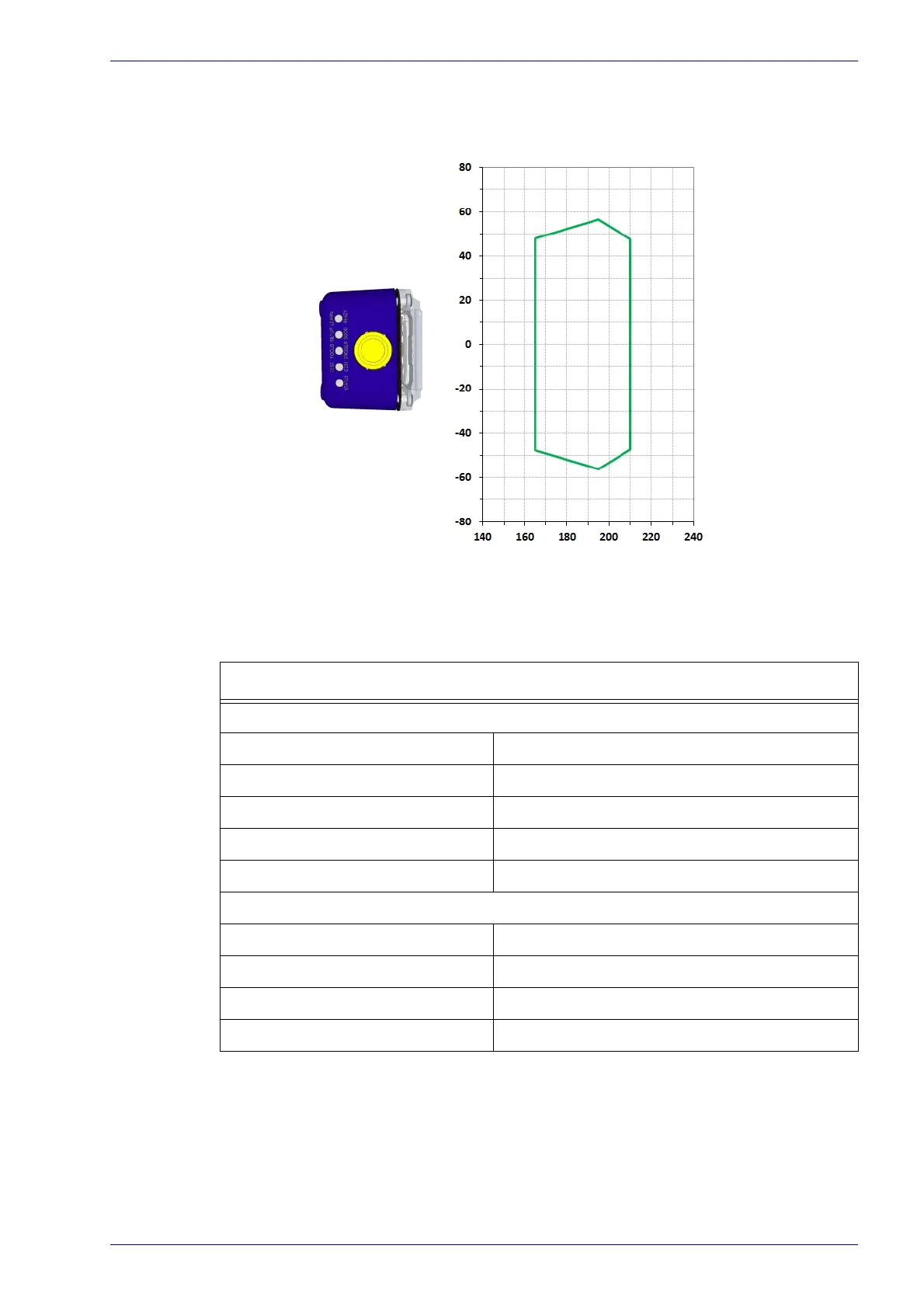

Reading Diagrams
Product Reference Guide 123
Matrix 300N 4x4-0xx (12 mm manual lens)
Data Matrix 0.19 mm (7.5 mils)
Reading Distance
Horizontal Reading Width
mm
in 6 7 8 9
-3
-2
-1
0
1
2
3
Conditions
Hardware Settings
Code Symbology Data Matrix ECC 200
Code Resolution 0.19 mm (7.5 mils)
Tilt Angle 45°
Skew Angle 15°
Focusing Distance (mm) 195
Software Parameters
Internal Lighting Very High Power Strobed
434-0xx Narrow Red
Exposure Time (μs) 90
Gain 5
