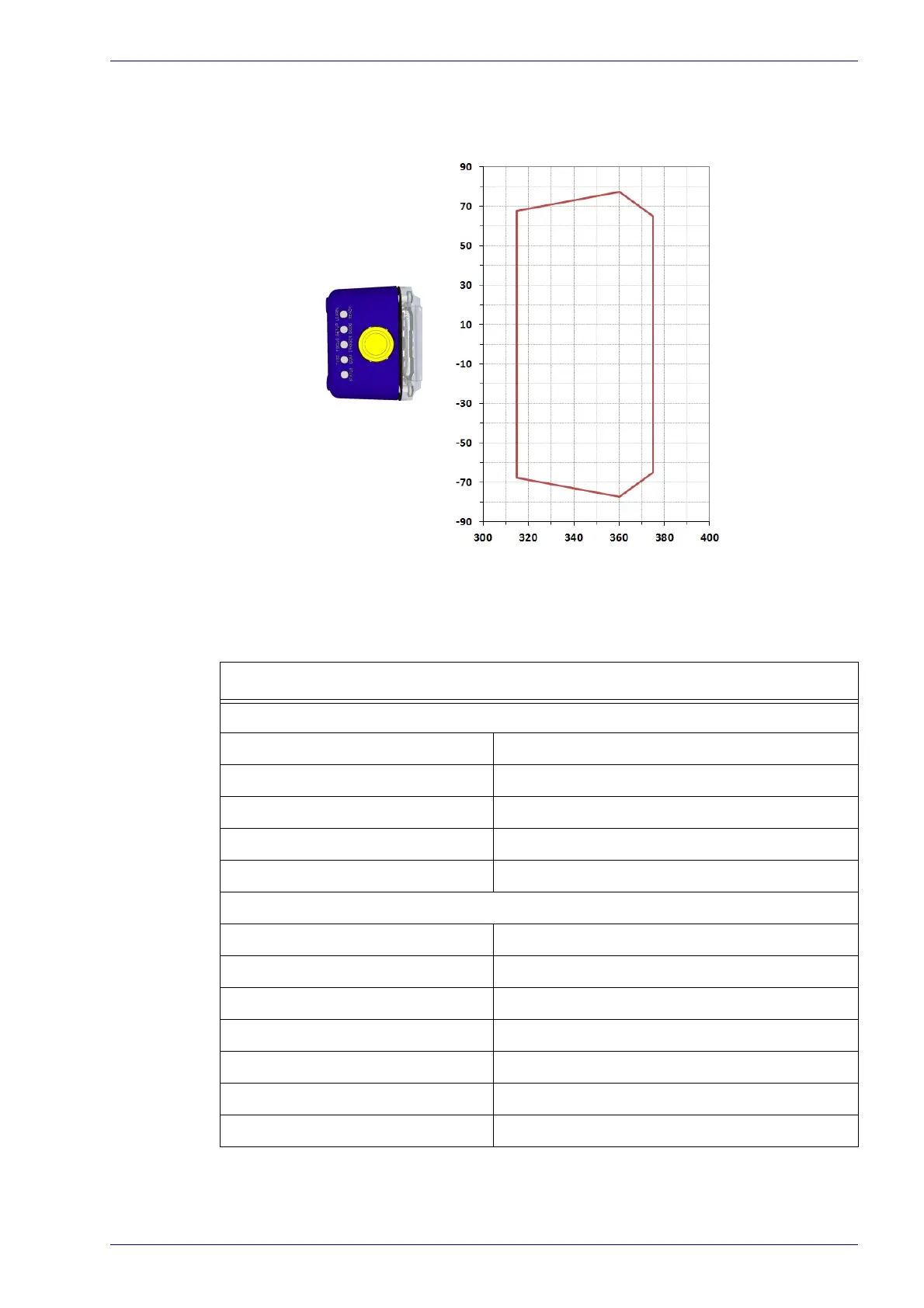

Reading Diagrams
Product Reference Guide 131
Matrix 300N 4x5-0xx (16 mm manual lens)
Data Matrix 0.25 mm (10 mils)
Reading Distance
Horizontal Reading Width
mm
in 12 13 14 15 16
-3
-2
-1
0
1
2
3
Conditions
Hardware Settings
Code Symbology Data Matrix ECC 200
Code Resolution 0.25 mm (10 mils)
Tilt Angle 45°
Skew Angle 15°
Focusing Distance (mm) 340
Software Parameters
Internal Lighting Very High Power Strobed
434-0xx Narrow Red
Exposure Time (μs) 270
Gain 8
465-0xx Narrow White
Exposure Time (μs) 270
Gain 8
