NOTE
Rapid Configuration
28
Matrix 300N

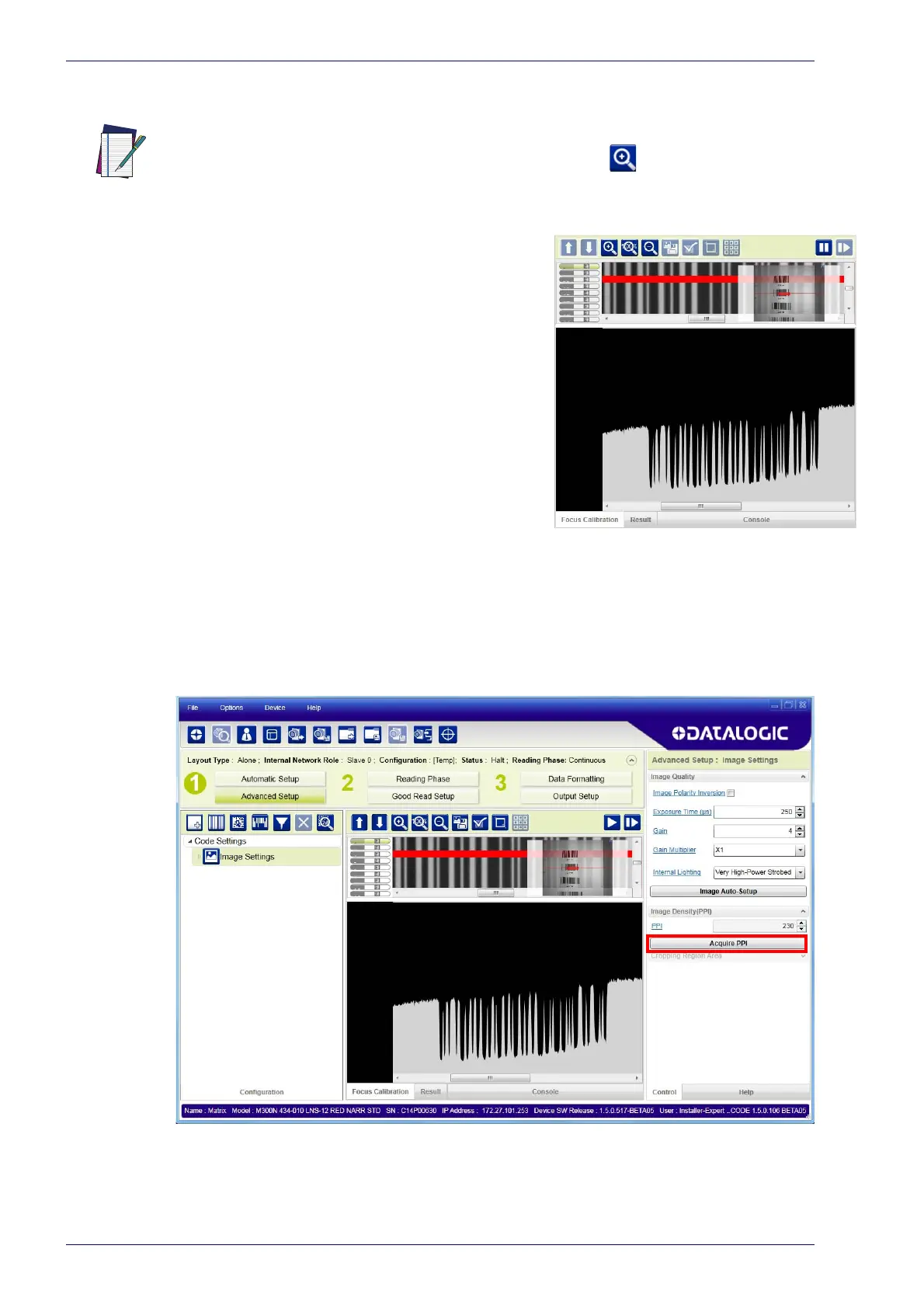

8. Click the Acquire PPI button to automatically set the Image Density so that
Matrix 300N will function correctly and to the fullest extent of its capabili-
ties. This procedure is necessary for first time installation, or if the focal
dist
ance is changed.
To enlarge the visual image of the code and the oscilloscope views, you can drag the
Focus Calibration window up and click on the zoom image icon repositioning it on
the code.
While in run mode, manually adjust the
focus until the bars relative to the code
in the oscilloscope show their maximum
length (focus).
You can also see the visual focus on the
code view.
When focused, click Pause to stop image
acquisition.
