Mechanical Dimensions
Product Reference Guide 55

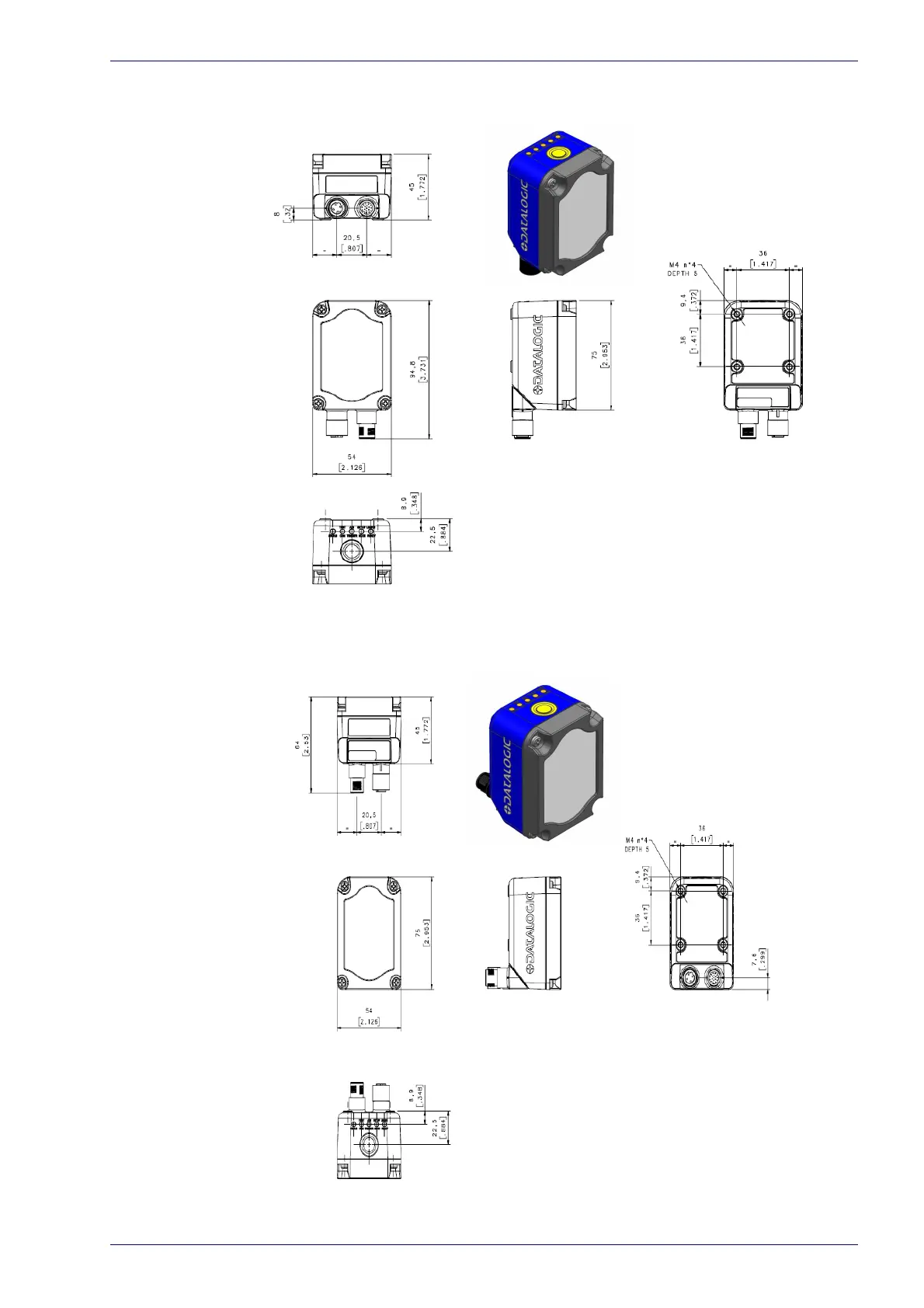

Figure 26 - Overall Dimensions Matrix 300N 2 MP (no DPM) with Connector at 0°
Figure 27 - Overall Dimensions Matrix 300N 2 MP (no DPM) with Connector at 90°
