CAUTION
Power Supply
Product Reference Guide 63

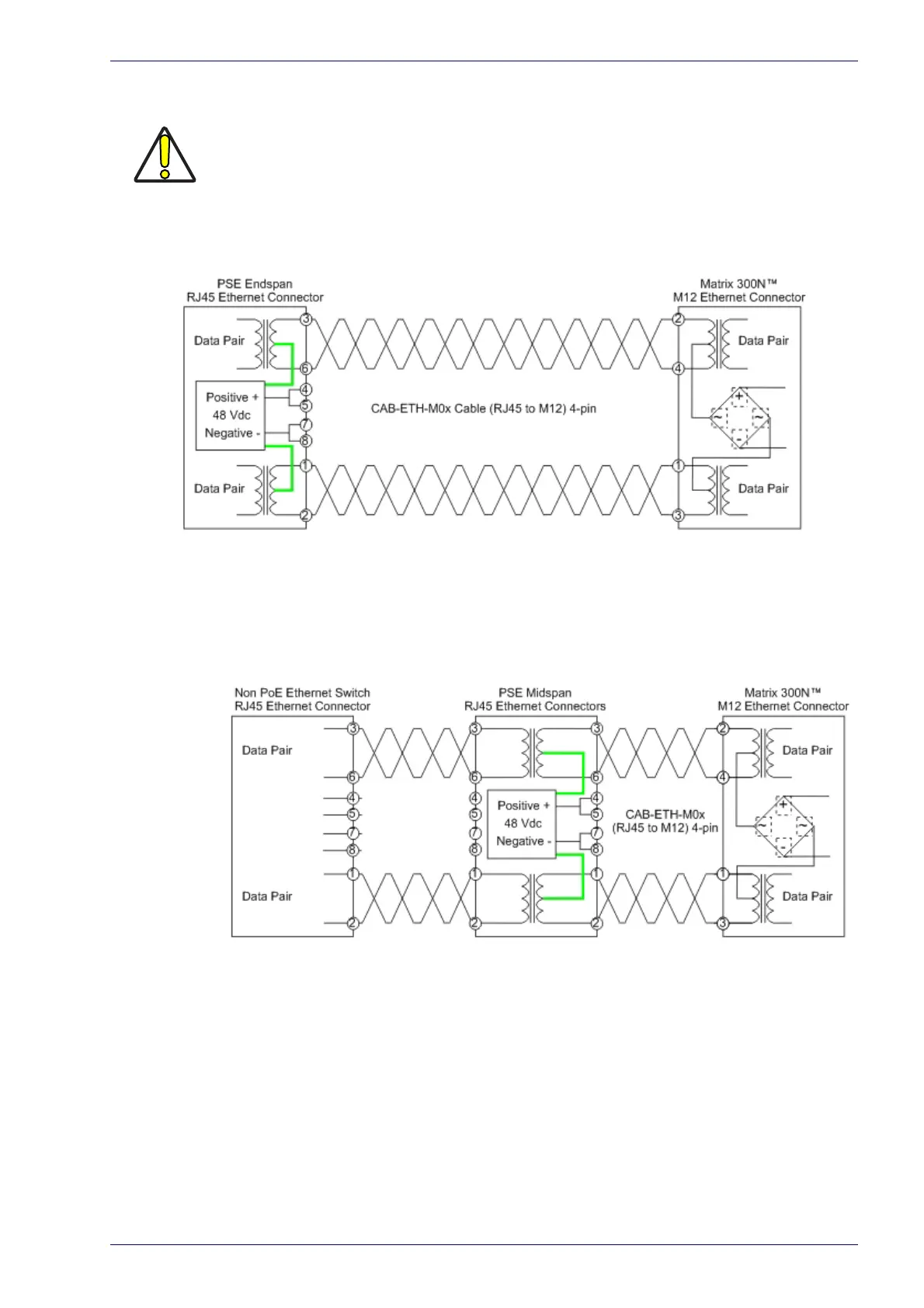

Figure 34 - Matrix 300N PoE PSE Endspan Alternative A Connections OK
Figure 35 - Matrix 300N PoE PSE Midspan Alternative A Connections OK
Matrix 300N PoE models only accept Alternative A (power over RJ45 pins 1, 2, 3, 6), Class 0
power levels. Use an Endspan or Midspan PSE device that supports this configuration
(i.e. PoE switch or Power over Ethernet Adapter).
Alternative B (power over RJ45 pins 4, 5, 7, 8) using an Endspan or Midspan PSE device
is not supported.
