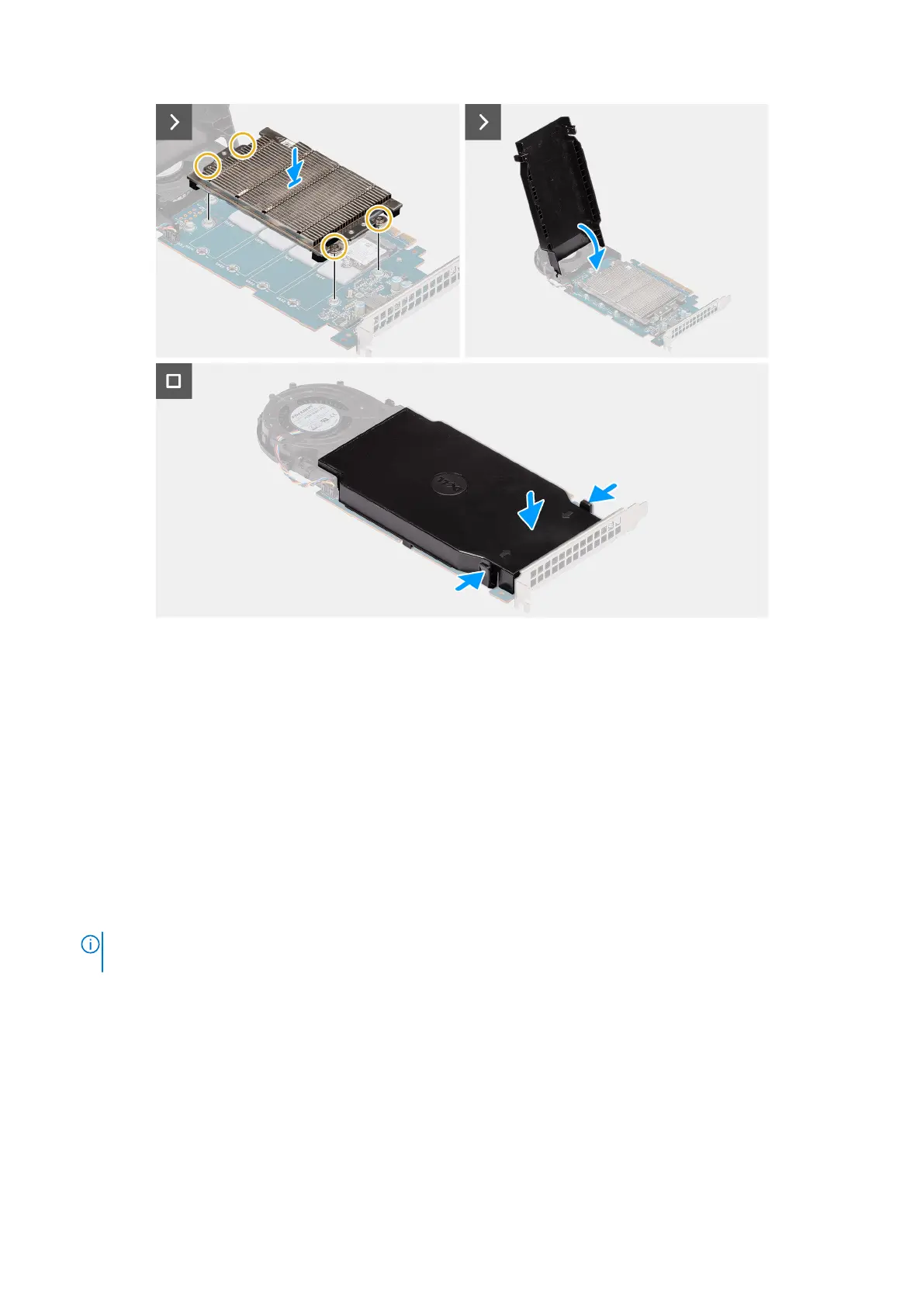

Figure 65. Installing the UltraSpeed Quad M.2 2230 solid-state drive
Steps
1. Press the release latches to open the fan shroud.
2. Loosen the four captive screws and lift the heat sink away from the UltraSpeed Quad card.
3. Remove the screw (M2x3) from the UltraSpeed Quad card.
4. Peel the protection film that covers the thermal pad on the M.2 solid state drive slot.
5. Remove the screw (M3) from the UltraSpeed Quad card.
6. Align the notch on the M.2 2230 solid state drive with the tab on the solid state drive slot.
7. Slide the M.2 2230 solid state drive into the M.2 2230 solid state drive slot on the UltraSpeed Quad card.
8. Replace the screw (M2x3) on the UltraSpeed Quad card to secure the M.2 2230 solid state drive.
9. Align the screw holes on the solid state drive heat sink with screw holes on the UltraSpeed Quad card.
10. Tighten the four captive screws that secure the solid state drive heat sink in place.
11. Close the fan shroud and press until it clicks in place.
NOTE:
The UltraSpeed Duo card can support four M.2 2230 solid state drives. Repeat step 1 to step 10 to install the
solid state drive into the second slot.
Next steps
1. Install the UltraSpeed Quad card.
2. Install the side cover.
3. Follow the procedure in After working inside your computer.
Removing and installing Customer Replaceable Units (CRUs)
91
