Removing the UltraSpeed Quad card
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
About this task
The following images indicate the location of the UltraSpeed Quad card and provide a visual representation of the removal
procedure.
NOTE: Precision 7875 Tower supports only one UltraSpeed Quad card in slot 5.

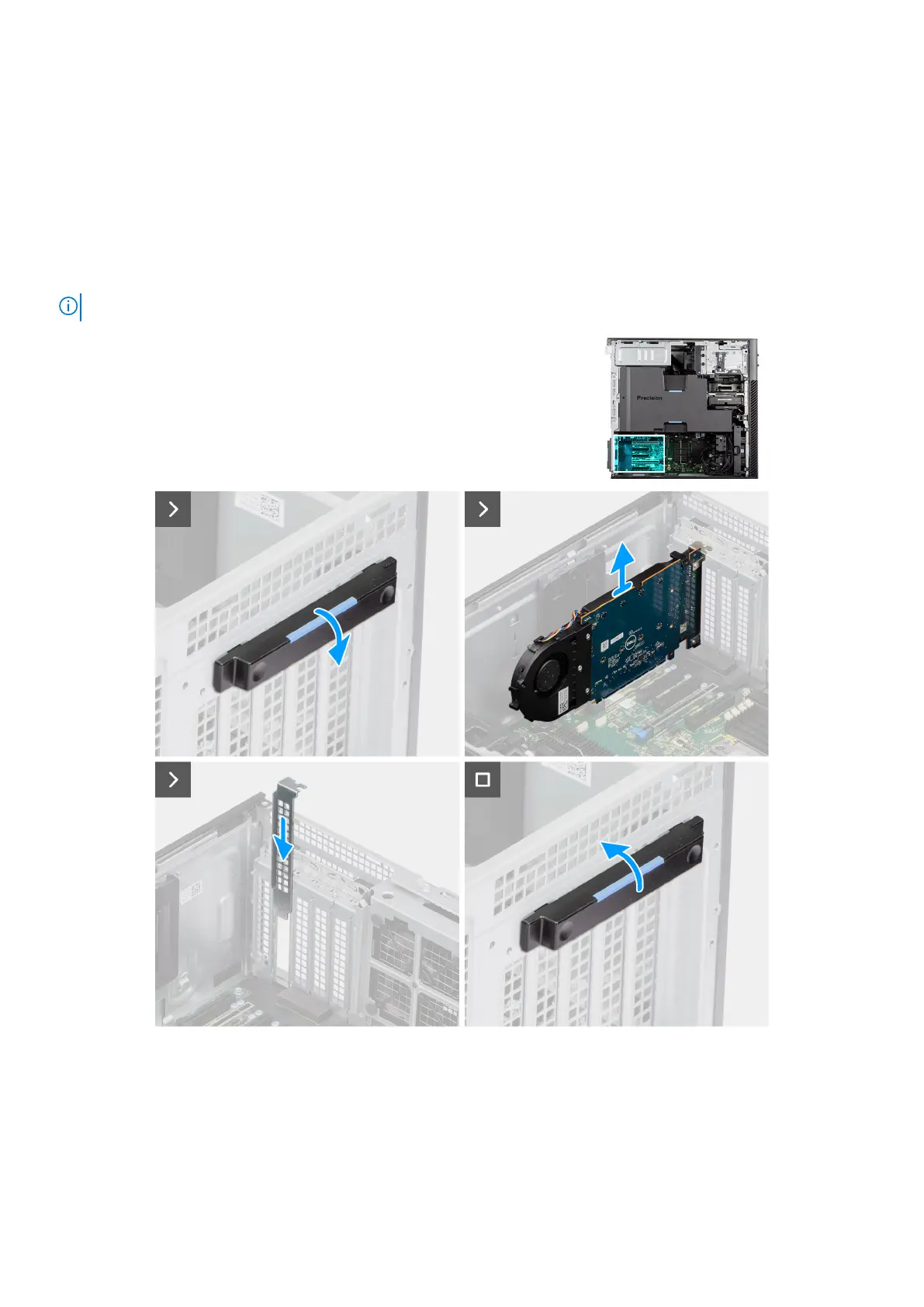

Figure 66. Removing the UltraSpeed Quad card
Steps
1. Push the PCIe latch to open the PCIe door.
2. Lift and remove the UltraSpeed Quad card away from the expansion-card slot.
3. Slide the PCIe door down and push the PCIe latch to close the PCIe door.
