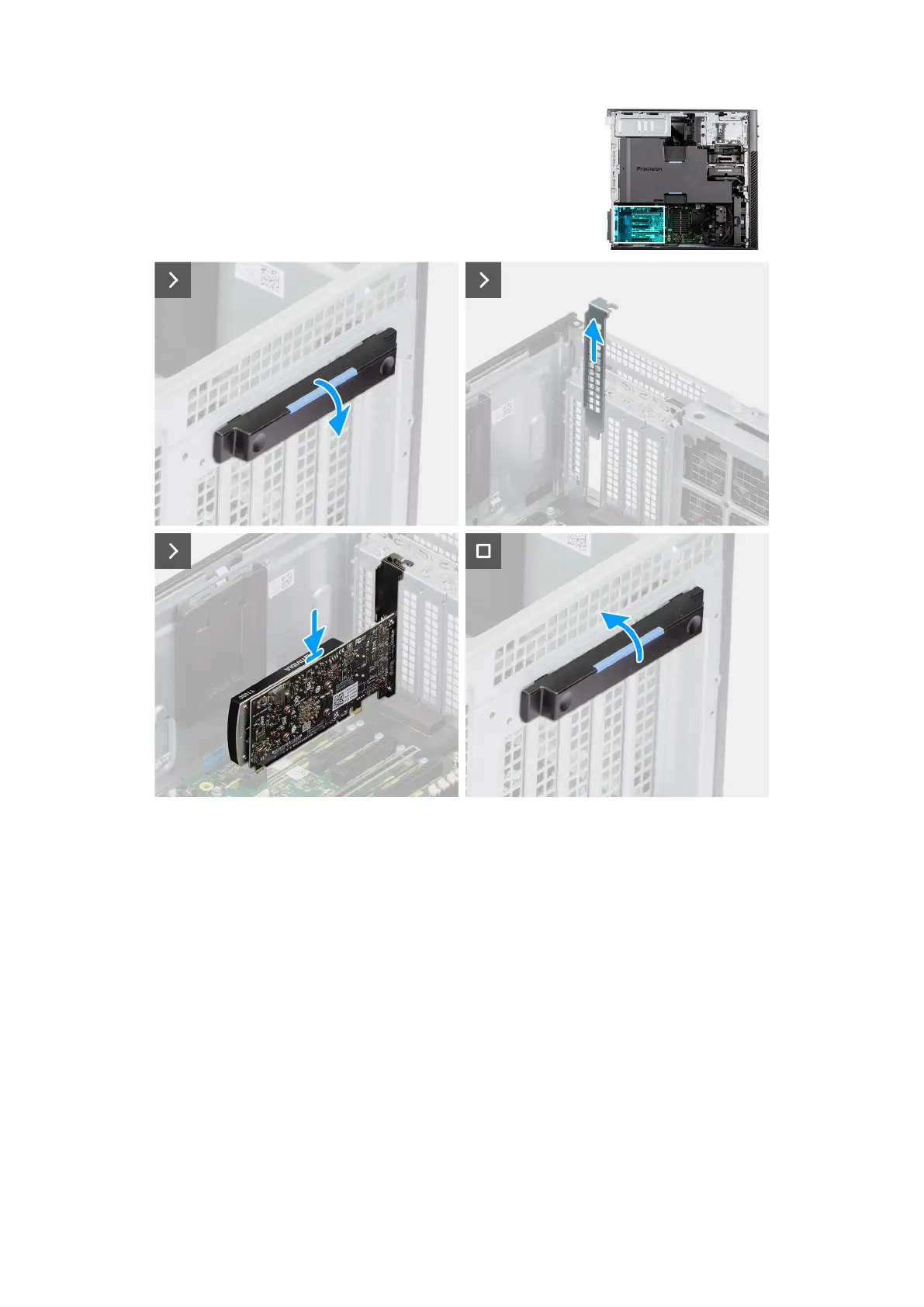

Figure 69. Installing the non-powered graphic card
Steps
1. Push down the PCIe latch to open the PCIe door.
2. Slide and lift the PCIe filler from the PCIe slot.
3. Align and place the non-powered graphic card into the expansion slot.
4. Lift the PCIe latch to close the PCIe door.
Next steps
1. Install the side cover.
2. Follow the procedure in After working inside your computer.
Removing the non-powered graphic card
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
