Eaton Rapid Link 5 User Manual

9 Communication
9.2 EtherNet / IP
216 Rapid Link 5 · RAMO5 · RASP5 05/20 MN034004EN www.eaton.com
9.2.10 External 24 V DC control voltage
The control section of the RASP5 speed controller (M12 input 24 V) can be
supplied with an external voltage of 24 V DC via an external power supply.

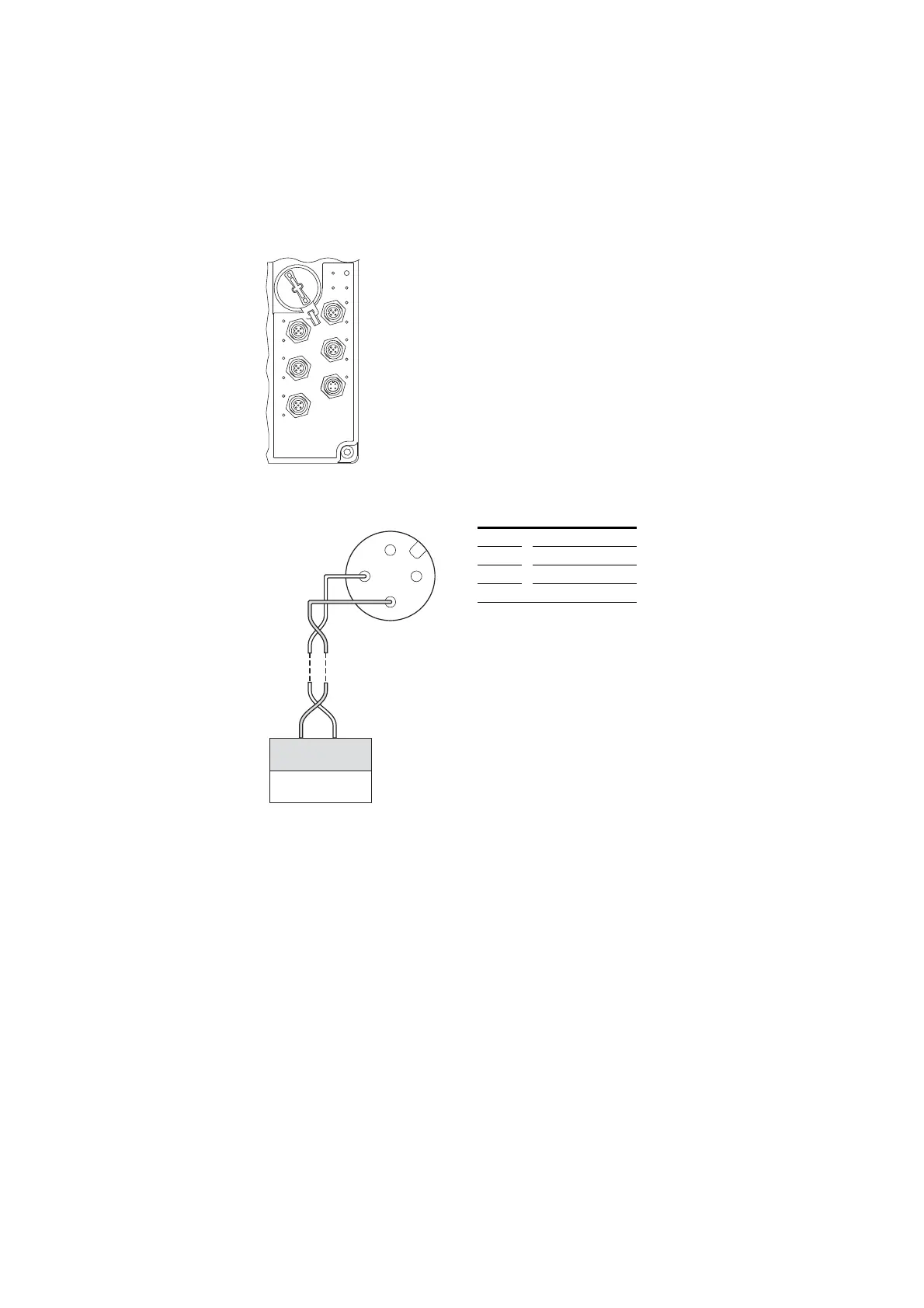

Figure 124: M12 input 24 V
Figure 125: External 24-V DC control voltage
If the power is supplied by an external power supply unit, the control board
of the Rapid Link 5 module and the RJ45 interface will be active.
￫
The external control voltage (+24 V DC) must be able to handle
a load of at least 100 mA.
The residual ripple of this external control voltage must be less
than ±5 % U
a
/U
a
.
ACT Q1/2
I3
SEN I1/I3
I1
Q2
Q1
P2 A
24V
I4
SEN I2/I4
I2
P2 S
P2
P1 A
P1 S
P1
NSMS
FLTPWR
+24 V DC
100 mA
External Power
Supply
0 V
3
1
2
4
1 Not used
2 Not used
30V
4+24VDC
