S600+ Instruction Manual

C-26 Chromatographs Revised July-2017

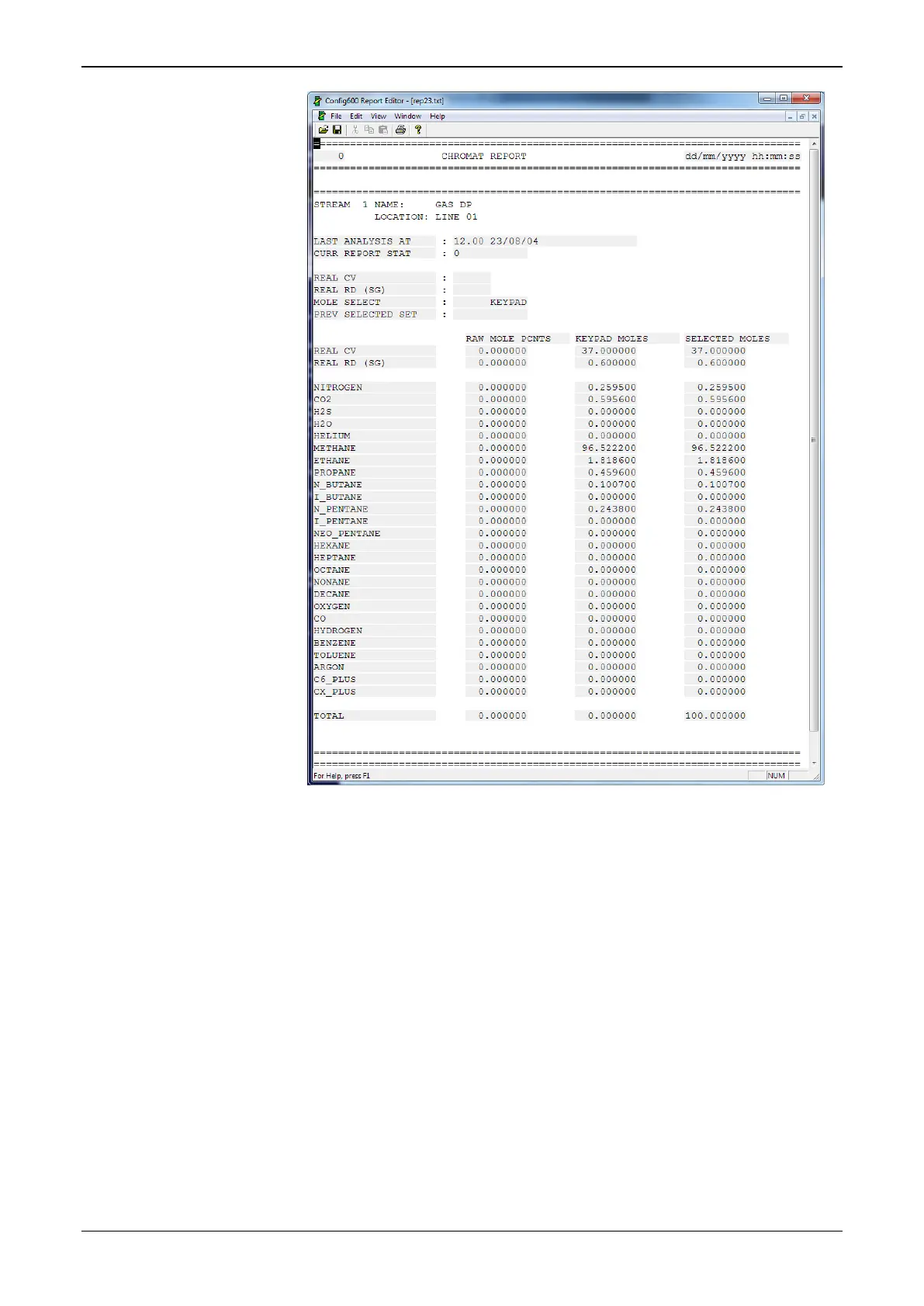

Using the Report Editor, you can modify the layout of the report. Refer

to Chapter 12, Report Editor, in the Config600 Software User Manual

(Part D301220X412).
