S600+ Instruction Manual
Revised July-2017 I/O 4-5
Table 4-1. ANIN Pin Connections for SKT-A
Pin
Function
8
ANIN-CH1
21
ANIN-CH2
9
ANIN-CH3
22
ANIN-CH4
10
ANIN-CH5
20
RETURN CH1-5
11
ANIN-CH6
24
ANIN-CH7
12
ANIN-CH8
25
ANIN-CH9
13
ANIN-CH10
23
RETURN CH6-10
Table 4-2. ANIN Pin Connections for SKT-B
Pin
Function
8
ANIN-CH11 (current)
7
ANIN-CH12 (current)
20
GND
4.1.2 Analogue Outputs (DAC)
The S600+ supports four analogue outputs (D/A Converter). Each
D/A Converter channel is fully floating and provides its own floating
supply. Loads of up to a 650-ohm loop impedance can be connected
directly. The unit can be used in either source or sink configuration.
Refer to Figures 4-6, 4-7, and 4-8.
The D/A Converter output channels use the connector labeled SKT-A,
which is located on the backplate of the I/O module. Refer to Table 4-3
for the D/A Converter output pin connections on the back of the I/O
module.

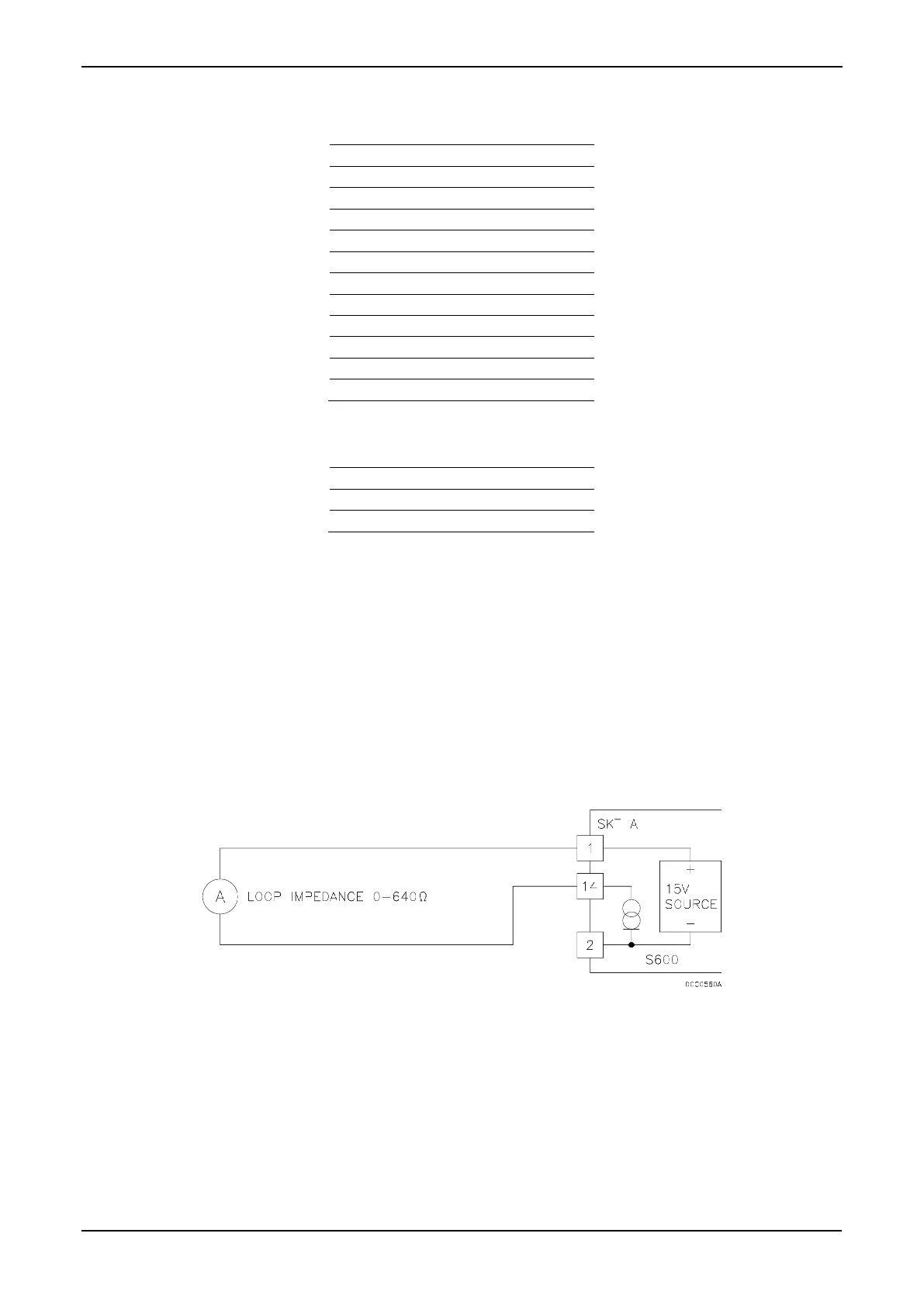

Figure 4-6. Analogue Output Schematic (S600+-Powered)
