Table 4-21 shows the frequency input pin connections. Refer to
Figures 4-29 and 4-30 for field wiring schematics.
Note: The Micro Motion (previously Solartron) devices shown in
Figures 4-29 and 4-30 may still have their previous
manufacturer’s labels.

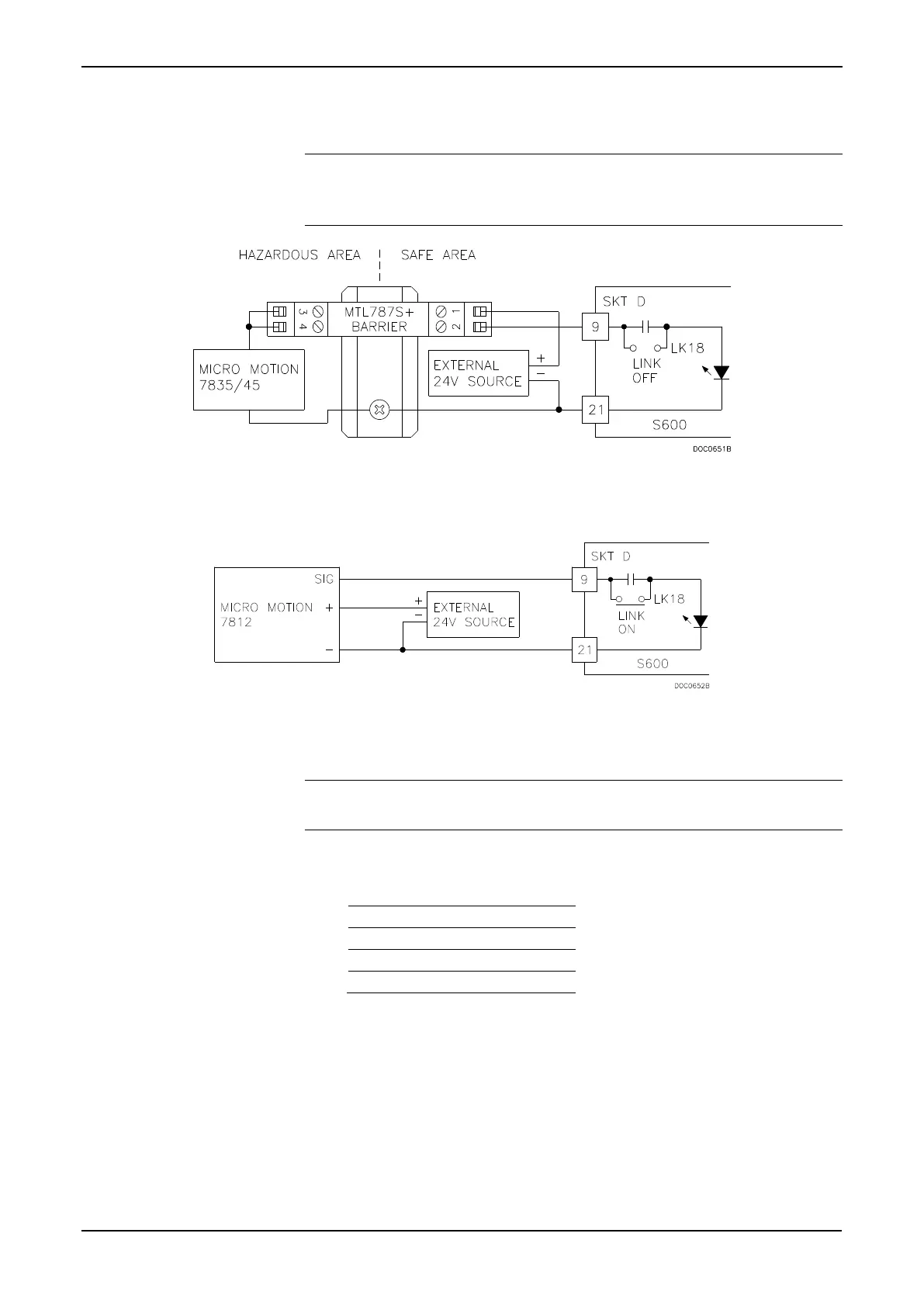

Figure 4-29. Frequency Input Schematic (with IS Barrier and AC-
Coupled)
Figure 4-30. Frequency Input Schematic (without IS Barrier and DC-
Coupled)
Note: The Micro Motion (previously Solartron) devices may still
have their previous manufacturer’s labels.
Table 4-21. Frequency Input Pin Connections for SKT-D
Pin
Function
9
FREQUENCY-CH1+
21
FREQUENCY-CH1-
10
FREQUENCY-CH2+
22
FREQUENCY-CH2-
