S600+ Instruction Manual
4-20 I/O Revised July-2017
Pin
Function
26
DIGIN CH-30
27
DIGIN CH-31
28
DIGIN CH-32
29
RETURN CH 29-32
Table 4-16. DIGIN Pin Connections for SKT-F
Pin
Function
19
DIGIN-CH7
18
DIGIN-CH8
17
RETURN CH5-8
16
DIGIN-CH9
15
DIGIN-CH10
14
DIGIN-CH11
13
DIGIN-CH12
12
RETURN CH9-12
11
DIGIN-CH13
10
DIGIN-CH14
9
DIGIN-CH15
8
DIGIN-CH16
7
RETURN CH13-16
4.2.2 Digital Outputs (DIGOUT)
Each Prover module provides 12 digital output (DIGOUT) high
current, open collector type channels. The maximum current rating is
100 mAmps at 24 Volts dc. Output frequencies up to 0.5 Hz are
possible.
Carefully check the DC polarity. Use an external DC supply in series
with the load. When using inductive loads (such as relay coils), place a
diode across the load.
The DIGOUT channels CH1 and CH2 are located on connector SKT-
E. Channels CH3 and CH12 are located on connector SKT-F. Refer to
Tables 4-17 and 4-18 for the DIGOUT pint connections. Refer to
Figures 4-25 and 4-26 for field schematics.

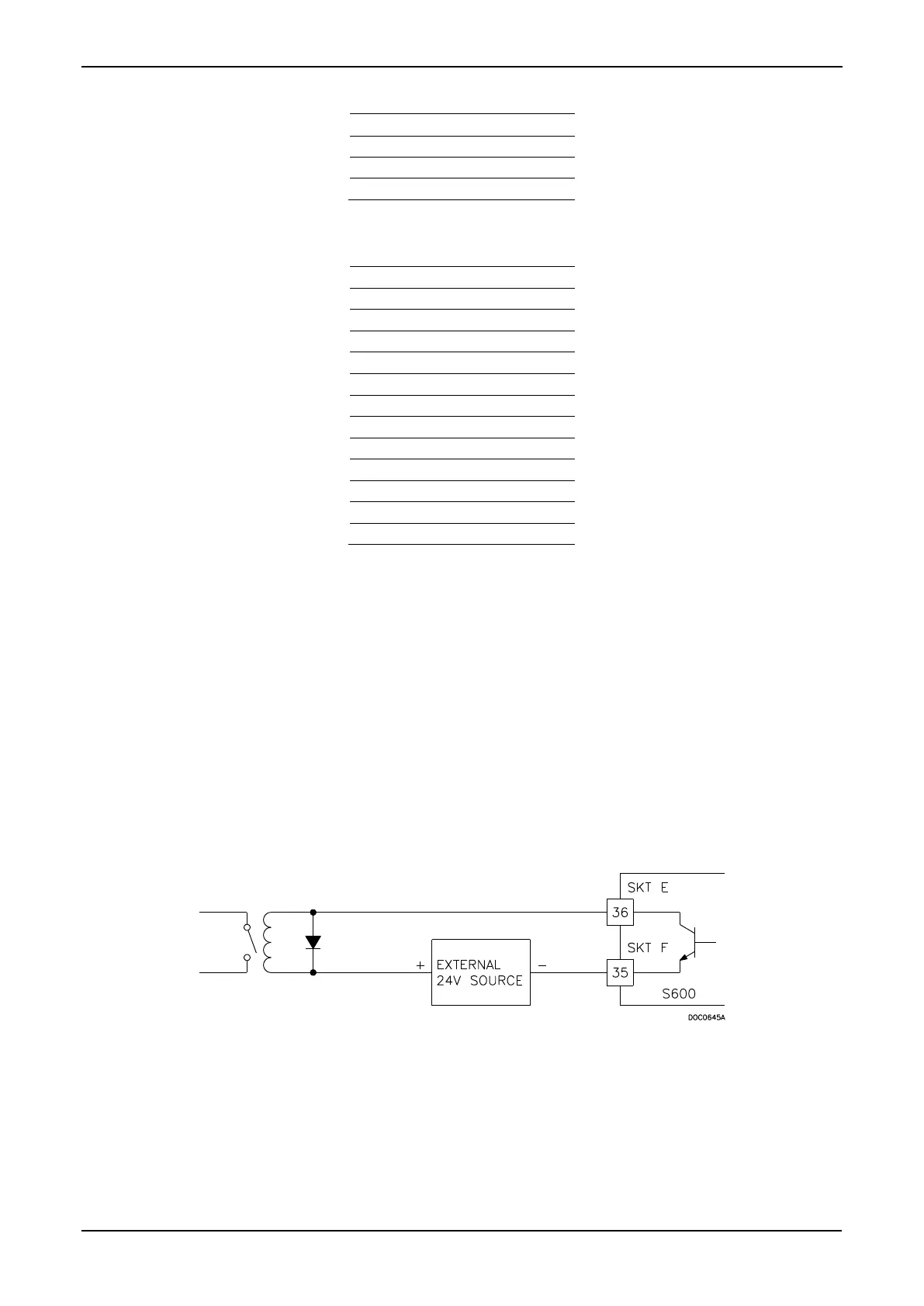

Figure 4-25. Digital Output Schematic (Relay)
